Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Applications: | Support PoE IP camera, PoE WIFI AP, and PoE IP Phone; |
Protections: | short-circuit protection, Over-voltage and under-voltage protection; | PoE Ports: | 4, 8, 16, 24, 32, 48 Ports Support PoE; |
Port: | Shanghai, Ningbo, Shenzhen for Network PoE Switch; | PoE Standard: | IEEE802.3af/at; |
PSE Type: | End-span 1/2(+), 3/6(-), Max 30W per channel; | Bandwidth: | 1.6G, 2.2G, 2G,10G, 12G, 12.8G, 16G, 17.8G, 20G, 56G; |
Working Temperature: | -20~65°C; | Packaging Detail: | For Network PoE Switch: Standard Export Carton Packing, 1 pc/ box. 25 boxes/carton. Carton size: 49*43.5*57cm; |
Place of Origin: | Zhejiang China; | Power Supply: | Built-in Power Adapter (Input: AC100-240V 50/60Hz); |
Ports: | ≤ 8; | Brand Name: | Chinasky, OEM; |
Products Status: | Stock; | Transmission Rate: | 10/100/1000Mbps; |
Model Number: | POE0820BNH-3; | Switch Capacity: | 20Gbps; |
Product Description: | 4 8 16 24 48 Port CCTV Network Ethernet PoE Switch 48V; | Certification: | CE, RoHS, FCC, IEC60950-1; |
Communication Mode: | Full-Duplex & Half-Duplex; | Supply Ability: | 60000 Piece/Pieces per Month; |
Warranty: | 3 years; | Function: | POE; |

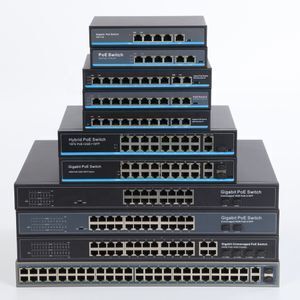

OEM 4 8 16 24 32 48 Port Gigabit CCTV Network Ethernet PoE Switch 48V 10/100/1000M for Hikvision IP Camera

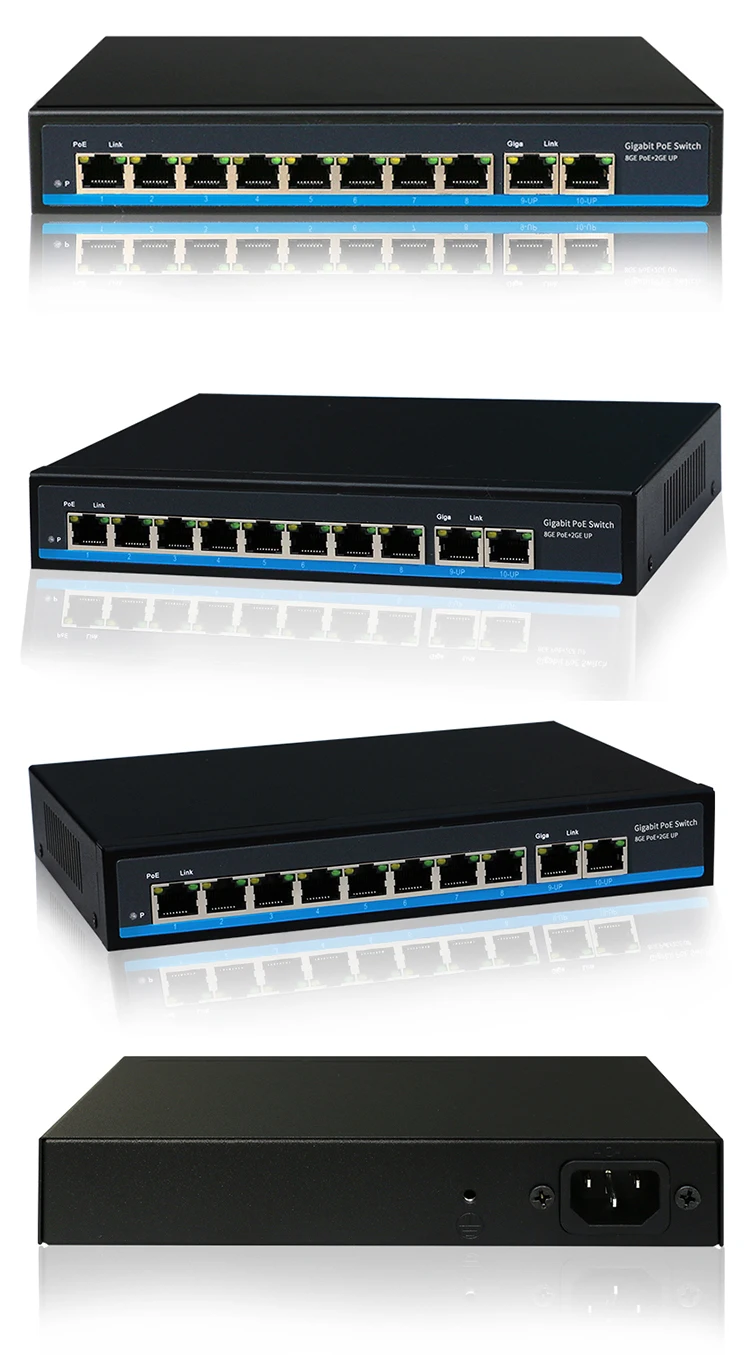

8+2 Ports 10/100/1000Mbps CCTV Gigabit PoE Network Ethernet Switch for IP Camera (POE0820BNH-3)
The 8 Ports PoE Ethernet Switch is an unmanaged Ethernet switch designed for Ethernet access and PoE applications. It provides 8 Gigabit PoE ports, and 2 Gigabit RJ-45 Uplink slots. The 8 PoE ports support 802.3af/at standard and feature Max 30W PoE power output of each single port, Max 120W of whole machine. It can be widely used in security surveillance, hotels, schools, and SMB engineering and other occasions.
Features: | |
1. | 8 Gigabit PoE ports, and 2 1000Mbps Uplink ports, built-in power |
2. | IEEE 802.3, IEEE 802.3u, IEEE 802.3af/at PoE compliant |
3. | Support PoE IP cameras, PoE WIFI AP, and PoE IP phones |
4. | Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure |
5. | Up to 30W per port (total power budget: 120W) for powering PoE-enabled devices |
7. | All ports support wire speed switching, jumbo frame transmission |
8. | Support upstream ports lightning protection |
9. | Dynamic power control to ensure stable output power (Enhanced) |
10. | Improved anti-interference capability, to solve problems in the installation of grounding devices (Enhanced, twice as good as other manufacturers' products) |
11. | Power-on in order of the PoE port, effectively reduce current strike, and reduce the transient voltage surge to PoE switch and other connected devices at the startup (Unique) |
12. | Reliable short-circuit protection to ensure safety (Enhanced) |
13. | Over-voltage and under-voltage protection (Some other manufacturers' products don't support this) |
Specifications: | ||||||
Model | POE0820BNH-2 | POE0820B-2 | POE2420-2 | POE0410B-3 | POE0820BNH-3 | POE0820B-3 |
PoE Ports | 8*100Mbps | 8*100Mbps | 24*100Mbps | 4*1000Mbps | 8*1000Mbps | 8*1000Mbps |
Uplink Ports RJ45 Ports | 2*1000Mbps | 2*1000Mbps | 2*1000Mbps | 1*1000Mbps | 2*1000Mbps | 2*1000Mbps |
SFP Ports(1000Mbps) | × | × | × | × | × | × |
VLAN Isolation | √ | √ | √ | √ | × | × |
SUPM Mode(250m) | √ | √ | √ | × | × | × |
Max Transmission Distance | 250m | 250m | 250m | 150m | 150m | 150m |
Total Power Budget | 120W | 150W | 300W | 80W | 120W | 150W |
Switching Capacity | 16G | 16G | 16G | 10G | 20G | 20G |
MAC Address | 4K | 4K | 4K | 1K | 1K | 4K |
Product Dimension (L*W*H/mm) | 210*150*35 | 210*150*35 | 440*290*45 | 190*130*35 | 210*150*35 | 210*140*45 |
Weight(kgs) | 1.2 | 1.4 | 4.1 | 0.8 | 1.2 | 1.4 |
Qty/CTN | 25 | 25 | 5 | 25 | 25 | 25 |
CTN size(CM) | 49*43.5*57 | 49*43.5*57 | 53*41.5*50 | 49*43.5*57 | 49*43.5*57 | 49*43.5*57 |
Transmission Method | Store and forward | |||||
Power Input | 100~240V AC, 50-60 Hz | |||||
POE Standard | IEEE 802.3af, IEEE 802.3at | |||||
Power Output | Up to 30W per port | |||||
Pin Assignment | 1/2(+), 3/6(-) | |||||
PSE Type | End-Span | |||||
Temperature | Working: -20°~65°C Storage: -40°~70°C | |||||
Humidity (Non-condensing) | Working: 10~90% Storage: 5~95% | |||||
Network protocol | IEEE 802.3, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3af/at, IEEE 802.1q | |||||
Certifications | CE, FCC, RoHS | |||||
Warranty | 3 years |
Chinasky has been a sophisticated designer and manufacturer of PoE network switches, video baluns, CCTV connectors, CCTV power supplies, CCTV video cables, etc. in the CCTV security surveillance industry Since 1998. We have established business relationships with customers all over the world with good reputation and feedback for our products and service. Europe, North America, South America, Australia and New Zealand and Southeast Asia are our main target markets. |
