1 to 2 1 to 4 Ports 1000Mbps Long Range Gigabit POE and Network Ethernet Extender compatible with POE or Ethernet switches

Product details
Switch Capacity:400Mbps;Port:Shanghai, Ningbo, Shenzhen for PoE Extender;
Brand Name:Chinasky, OEM;PoE Input:1 RJ45 port;
Color:Black;Transmission Rate:10/100/1000Mbps;
Applications:AP, IP camera, IP telephone and the other network equipment;Certification:CE, RoHS, FCC;
Products Status:Stock;Function:POE;
Packaging Detail:Standard Export Carton Packing:1 pc/ box for PoE Extender;Model Number:PE102PRO-3;
Product Description:10/100M PoE Extender, poe repeater;Place of Origin:Zhejiang China;
POE Standard:Power in: IEEE802at, Power-out:IEEE802 af;PoE Output:2 RJ45 port;
Certification:CE, RoHS, FCC;Power Supply:48-57V DC;
Ports:≤ 8;Communication Mode:Full-Duplex & Half-Duplex;
Operating Temperature:0 to 40 °C;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Supply Ability:700000 Piece/Pieces per Year;Repeater Mode:Store and forward;

1 to 2 1 to 4 Ports 1000Mbps Long Range Gigabit  POE and Network Ethernet Extender compatible with POE  or Ethernet switches

Product Description

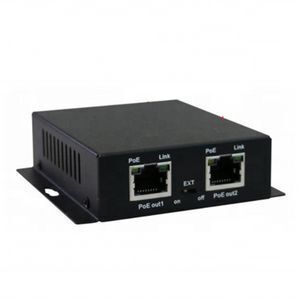

1 to 2 1 to 4 Ports 1000Mbps Long Range Gigabit  POE and Network Ethernet Extender compatible with POE  or Ethernet switches (PE102PRO-3)





1 to 2 Port 10/100/1000Mbps PoE Extender has 3 10/100/1000Mbps LAN ports, among them, 1 port for power input, 2 port for power output.

IEEE 802.3af/at standard. Max power input for single port is 30W. Max power output for single port is 30W.



PoE Extenders can increase the transmission distance for Ethernet data and PoE power up to Max 150m via Cat5 UTP cables. It offers you great flexibility to extend the distance of PoE.



1-Ports 10/100Mbps PoE Extender (PE101)

Features:
1.Comply with IEEE 802.3af Power over Ethernet
2.10/100/1000M Supported
3.Automatically detects and protects PoE equipments from being damaged by incorrect installation
4.Plug-and Play no configuration required



Model

PE102PRO-3

PoE input

1 port 10/100/1000Mbps

PoE out

2 ports 10/100/1000Mbps

Exchange Mechanism

Store-and-forward

Bandwidth

5G

MAC

1K

Environmental

Working Temperature:-20℃~65℃

Storage temperature :-40℃~70℃

Working Humidity :10%~90% RH non-condensing

Storage Humidity:5%~90% RH non-condensing

POE in

IEEE802.3af/at, Port Power MAX 30W

12+ /36- and 45+/78- (support active and passive POE input)

POE out

IEEE802.3af/at, Port Power MAX 30W

12+/36-

Power input

DC 48~57V input, use as 2 ports PoE Switch

DC 12V input, use as Network Extender

No power input, use as 1 to 2 POE Extender

Standards Protocols

IEEE 802.3

IEEE 802.3i 10BASE-T

IEEE 802.3u 100BASE-TX

IEEE 802.3ab 1000BASE-T

IEEE 802.3af/at

IEEE 802.3x

System model

Default standard/Super 250meters

Speed

Ethernet 10Mbps half-duplex, 20Mbps full-duplex

Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex

Gigabit Ethernet 2000Mbps full-duplex

Network Media

10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤250m)

100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m)

1000Base-TX: Pair 2 Category 6(Cat6) and above UTP/STP(≤150m)

Product specifications

Product Size:85mm*85mm*25mm(L*W*H)

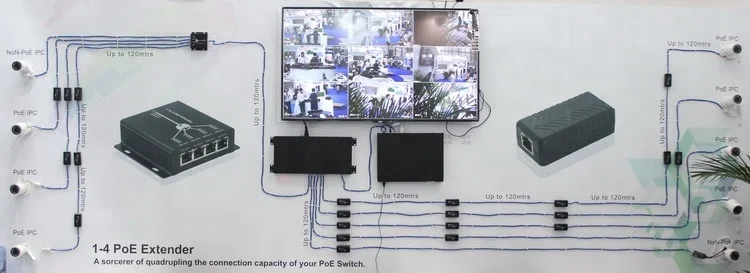

PoE Applications
