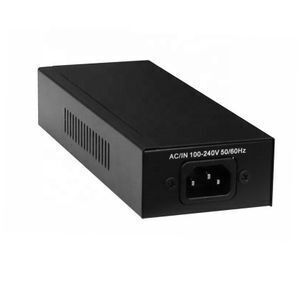

60W 90W 100W Power over ethernet 48V 52V 0.5A 1.5A 2A 3A 802.3af/at/PoE++/BT 1000Mbps gigabit poe injector (Metal Case)

Product details
Ports:2;Function:POE;
Place of Origin:Zhejiang China;Working Temperature:-20~65°C;
Supply Ability:700000 Piece/Pieces per Year;Communication Mode:Full-Duplex & Half-Duplex;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Warranty:3 years;
Transmission Rate:10/100/1000Mbps;Transmission Distance:100m for PoE ports;
Brand Name:Chinasky, OEM;Switch Capacity:1Gbps;
Ports Detail:1*10/100/1000Mbps PoE Port, 1*10/100/1000Mbps Uplink port;Model Number:PSE5217M;
PSE Type:Endspan 1,2(+)/3,6(-) & Midspan 4,5(+)/7,8(-) , Max 65W per channel;Applications:Support PoE IP cameras, PoE WIFI AP, and PoE IP phones;
Packaging Detail:For 100W PoE Injector: Standard Export Carton Packing, 1 pc/ box. 100 boxes/carton. Carton size: 53*38.5*13.5cm;Protections:short-circuit protection, Over-voltage and under-voltage protection;
PoE Standard:IEEE802.3af/at, standard PoE;Port:Shanghai, Ningbo, Shenzhen for 100W PoE Injector;
Power Support:Total 90 W, AC100~240V;Products Status:Stock;
Power Supply:nput AC100-240V 50/60Hz;Certification:CE, RoHS, FCC, IEC60950-1;



Product Description

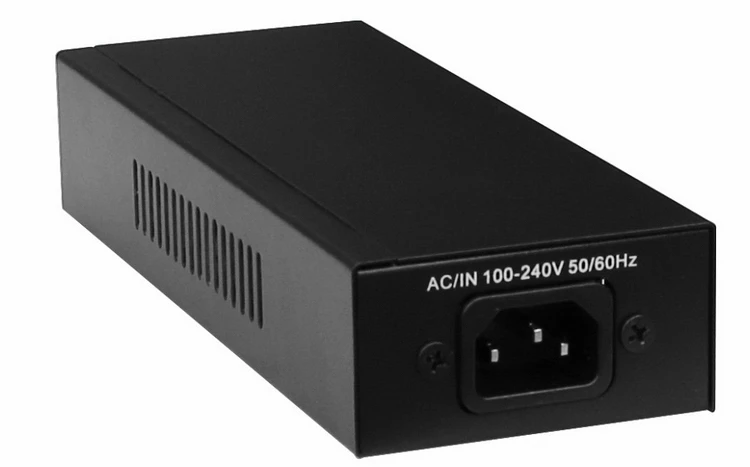

60W 90W 100W Power over ethernet 48V 52V 0.5A 1.5A 2A 3A 802.3af/at/PoE++/BT 1000Mbps gigabit poe injector (PSE5217M)



60W 90W Power over ethernet 48V 52V 0.5A 1.5A 2A 3A 802.3af/at/PoE++/BT 1000Mbps gigabit poe injector
Features:
1.Comply to IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, 802.3X, 802.3z.
2.Comply to PoE IEEE 802.3af/at standard, all ports standard testing.
3.Support PoE IP cameras, PoE WIFI AP, and PoE IP phones
4.2*10/100/1000 Mbps RJ45
5.Upstream port lightning protection.
6.

MAX power: 90W.

7.Power transmission distance:100M





Technical specifications
ModelPSE5217M
Power Supply PinEndspan 1,2(+)/3,6(-) & Midspan 4,5(+)/7,8(-)
Output52V 1.73A
Power90W
PoE Standard IEEE802.3af/at, POE++
Data Pin1,2/3,6
InputAC 100-240V 50/60Hz
Port1GE POE output+1GE data input
FeaturesPlug and play, no configuration management functions
Power supply has input overvoltage, output overvoltage, output overcurrent short circuit protection and other functions.
System reliability: MTBF> 100k hours.
Conducted Interference (CE) and Radiated Interference (RE), in accordance with EN55022, CLASS B.

Environmental

Working Temperature: -25℃~65℃

Storage temperature: -40℃~70℃

Working Humidity: 10%~90% RH non-condensing

Storage Humidity: 5%~90% RH non-condensing
Speed

Ethernet 10Mbps half-duplex, 20Mbps full-duplex

Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex

Gigabit Ethernet 2000Mbps full-duplex
Network Media

10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m)

100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m)

1000Base-T: Pair 4 Category 5(Cat6) and above UTP/STP(≤150m)
Size182mm*72mm*39mm(L*W*H)
Weight Net Weight 0.9Kg





Company Information

Chinasky has been a sophisticated designer and manufacturer of PoE network switches, video baluns, CCTV connectors, CCTV power supplies,  CCTV video cables, etc. in the CCTV security surveillance industry Since 1998. We have established business relationships with customers all over the world with good reputation and feedback for our products and service. Europe, North America, South America, Australia and New Zealand and Southeast Asia are our main target markets.
