Applications: | Support PoE IP cameras, PoE WIFI AP, and PoE IP phones; | Ports Detail: | 1 10/100/1000Mbps PoE Ports, 1 10/100/1000Mbps Uplink ports; |
Model Number: | PSE5205-3; | Warranty: | 3 years; |
Power Support: | Total 30 W, AC100~240V; | Brand Name: | Chinasky, OEM; |
Communication Mode: | Full-Duplex & Half-Duplex; | Switch Capacity: | 1Gbps; |
Certification: | CE, RoHS, FCC, IEC60950-1; | Function: | POE; |
Ports: | 2; | Supply Ability: | 700000 Piece/Pieces per Year; |
Place of Origin: | Zhejiang China; | Working Temperature: | -20~65°C; |
Transmission Rate: | 10/100/1000Mbps; | Products Status: | Stock; |
PSE Type: | End-span 1/2(+), 3/6(-), Max 30W per channel; | Packaging Detail: | For PoE Injector: Standard Export Carton Packing, 1 pc/ box. 100 boxes/carton. Carton size: 53*38.5*13.5cm; |
Transmission Distance: | 150m for PoE ports; | Port: | Shanghai, Ningbo, Shenzhen for PoE Injector; |
Power Supply: | nput AC100-240V 50/60Hz; | PoE Standard: | IEEE802.3af/at, standard PoE; |
Protections: | short-circuit protection, Over-voltage and under-voltage protection; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
Dual 2 Port Power over Ethernet Gigabit PoE Injector 48V 52V 55V 56V 220V 30W 50W 60W 90W 100W 802.3af/at

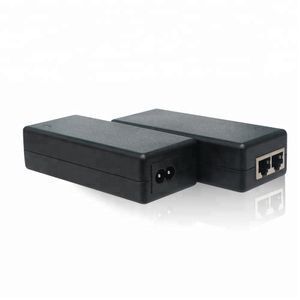

10/100/1000Mbps Power over Ethernet Gigabit PoE Injector (PSE5205-3)
10/100/1000Mbps Power over Ethernet Gigabit PoE Injector (PSE5205-3) | |
Features: | |
1. | Comply to IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, 802.3X, 802.3z. |
2. | Comply to PoE IEEE 802.3af/at standard, all ports standard testing. |
3. | Support PoE IP cameras, PoE WIFI AP, and PoE IP phones |
4. | 2*10/100/1000 Mbps RJ45 |
5. | Upstream port lightning protection. |
6. | MAX power: 26-30W. |
7. | Power transmission distance:150M |
Technical specifications | |
Model | PSE5205-3 |
Power Supply Pin | 1,2+/3,6- |
Output | 52V 0.5A |
Power | 26-30W |
PoE Standard | IEEE802.3af/at |
Data Pin | 1,2/3,6 |
Input | AC 100-240V 50/60Hz |
Port | 2* 10/100/1000 Mbps RJ45 |
Features | Plug and play, no configuration management functions Power supply has input overvoltage, output overvoltage, output overcurrent short circuit protection and other functions. System reliability: MTBF> 100k hours. Conducted Interference (CE) and Radiated Interference (RE), in accordance with EN55022, CLASS B. |
Environmental | Working Temperature: -25℃~65℃ Storage temperature: -40℃~70℃ |
Working Humidity: 10%~90% RH non-condensing Storage Humidity: 5%~90% RH non-condensing | |
Speed | Ethernet 10Mbps half-duplex, 20Mbps full-duplex Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex Gigabit Ethernet 2000Mbps full-duplex |
Network Media | 10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m) 100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m) 1000Base-T: Pair 4 Category 5(Cat6) and above UTP/STP(≤150m) |
Size | 123mm*60mm*40mm(L*W*H) |
Weight | Net Weight 0.2Kg(including AC power cord 0.3kg) |
Packaging
Chinasky has been a sophisticated designer and manufacturer of PoE network switches, video baluns, CCTV connectors, CCTV power supplies, CCTV video cables, etc. in the CCTV security surveillance industry Since 1998. We have established business relationships with customers all over the world with good reputation and feedback for our products and service. Europe, North America, South America, Australia and New Zealand and Southeast Asia are our main target markets. |
