Two roll rubber mixing machine Silicone rubber mixing mill rubber mixer machine

Supplier: Qingdao Chaoguangyue Industry Co., Ltd.
Region: Shandong, China
Contact: Mr Daguang Qiu
Price: $3000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Year:	2019;	Key Selling Points:	High Productivity;
Packaging Detail:	In wooden case or as your requirements;	Certification:	CE,SGS,ISO;
After-sales Service Provided:	Engineers available to service machinery overseas;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Factory direct sales:	With high quality and competitive price;	Type:	Open Mixing Mill;
After-sales Service Provided:	Online support;	Place of Origin:	Shandong China;
roll material:	chilled cast iron(Cr coating);	Port:	Qingdao port;
bush2:	Ball Bearing Bush;	Certification:	CE/SGS/ISO 9001;
Supply Ability:	30 Set/Sets per Month Supply OEM service;	Cooling system:	Inner water cooling;
advantage:	Precision Higher;	Applicable Industries:	Manufacturing Plant,Energy & Mining;
Brand Name:	CGY;	Voltage:	380v;
working time:	6 minute one time;	Condition:	New;
Dimension(LWH):	1160x920x1370mm;	bush 1:	Nylon Bush;
Warranty:	2 Years;	Power(W):	5.5kw;
Weight:	1000kg;

TWO Roll Rubber Mixing Mill

Certificate and identification : ISO 9001:2000 , CE , SGS

Application : The mill is used for rubber plasticating, mixing, warming and sheeting.

General design:

1. The mill consists mainly for rolls, frame, bearing, roll nip adjusting, screw, heating and cooling device, emergency stop, lubrication system and such sections as electrical controls and, etc.

2. The main electric motor arrives the front and rear rolls to rotate oppositely through reduar, driving geras and friction gears.

Features:

1. The rolls are made of chilled alloyed castiron. Their working surfaces are of high hardness and wear-resistant.

The working temperature of the bored roll is controllable by steam, cooling water or oil that pass through them thus,

to meet the requirements of milling process

2. Roll nip adjustment is realized by hand or electricity which can obtain high accuracy and sensitivit

1- Main features:

1.Materials of Rolls: The roller are made of cast iron alloy (LTGH), whose surface is 75HS, harder than other company,(they are usually 72HS ) .The working surface is well grinded and machined.

2. Reducer: The speed reducer is hardened tooth with class 6 precision, no noise and vibration, safety with higher transmission efficiency.

3.Motor: We always use OMRON,SIMENS ect brand electric parts or you can choice the ordinary brand.

4.Cooling system : (with rotating joint)Universal rotary joints with inner spray pipes with hoses and headers. Piping is complete up to supply pipe terminal ,which reduces energy consumption by 40% and high efficiency.

5.Emergency brake device : (brake,emergency button,pull rod) The machine is also equipped with an emergency brake device. When an emergent arises, just draw the safety pull rod or press the emergency button and the machine will stop immediately. It is safe and reliable.

6.Stock bender: it for direct rubber sheet and knife to cut as your need to assemble.then improve the quality of mixing ,and reduce the energy consumption.

2- parameters :

Type	Xk-160	Xk-250	Xk-300	Xk-400	Xk-450	Xk-560	Xk-660
Working diameter of rolls(mm)	160	250	300	400	450	560	660
Working length of rolls(mm)	320	620	750	1000	1200	1530	2130
Front roll surface speed(m/min)	8.95	14.1	15.1	18.65	24.26	27.72	28.6
Friction ratio	1:1.35	1:1.17	1:1.27	1:1.27	1:1.27	1:1.2	1:1.24
Max.nip(mm)	4.5	8	8	10	15	15	15
Capacity per.batch(kg)	1-2	8-15	15-20	18-35	25-50	35-50	165
Motor power(kw)	5.5	18.5	22	37	55	90	245
Overall dimension(mm	1380860 1320	34001500 1800	35801550 1695	43501850 1785	52002380 1840	58452284 1978	74653662 2080

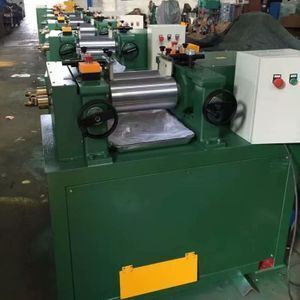

XK-160 lab rubber mixing mill

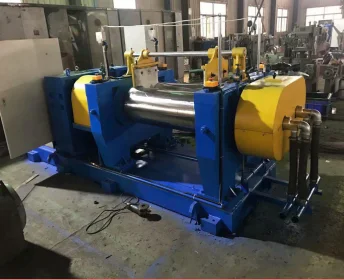

XK-400 open mixing mill

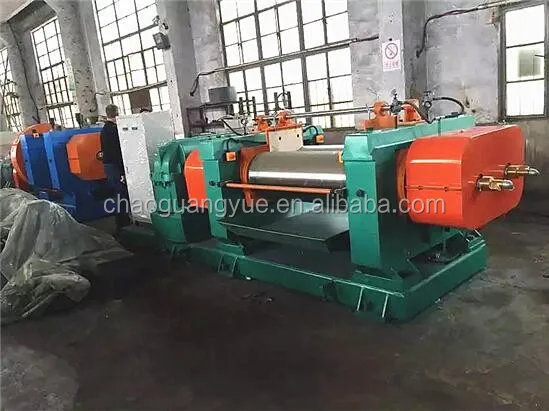

XK-450 open mixing mill

Welcome to our factory!

Qingdao Chaoguangyue Industry Co., Ltd. Is affiliated with Qingdao Guangyue Group . It is one of the important backbone enterprises in rubber machinery industry in China and is one member of Shandong machinery union company. The company owns powerful technical strength, advanced technic, the best design and strict quality guarantee system, which owns a high reputation in China rubber machinery industry. The main products are plate vulcanizing press, open rubber mixing mill, banbury intensive kneader, extruder, rubber machinery, textile machinery,shot blast cleaning machine, foundry machinery, woodworking machinery, wheel barrow and tire etc. The products have been sold to more than 20 provinces and cities in China and have been exported to more than 30 countries and areas.

Our certificate and factory
