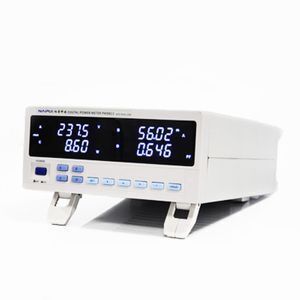

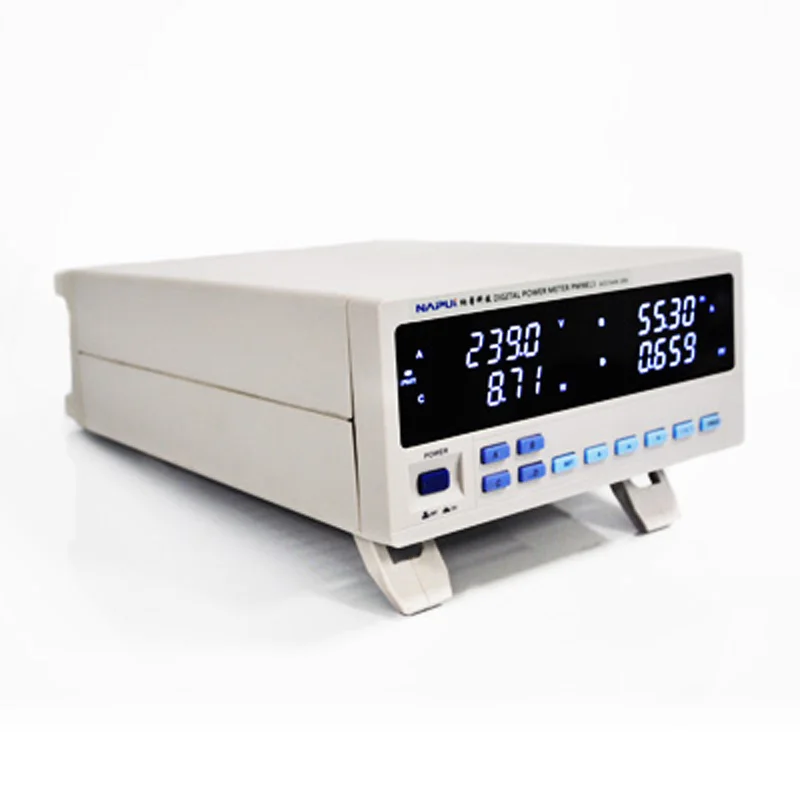

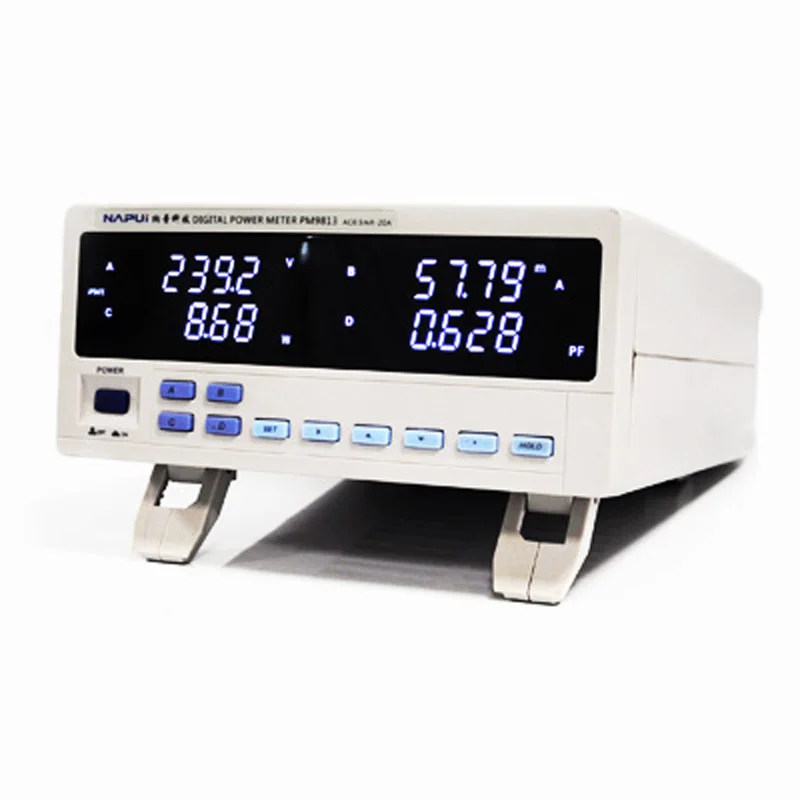

NAPUI PM9813 Single Phase Multi-functional Small Current Digital Power Meter Analyzer Model

Product details
Single gross weight:2.5 KG;Measuring Current Range:0.5mA-40A;
Place of Origin:Guangdong China;Package Preview:https://sc02.alicdn.com/kf/HTB1xmQKbhOMSKJjSZFlq6xqQFXai.jpg_640x640.jpg,https://sc02.alicdn.com/kf/HTB1WS_wX2BNTKJjSszcq6zO2VXac.jpg_640x640.jpg;
Power Range:0.01W-24KW;Frequency range:45-65Hz;
Brand Name:NAPUI;Power factor range:0.001-1.000;
Basic Accuracy:±(0.4% reading +0.1%range+1 digit);Warranty:One Year;
Operating Temperature:10~55;Package Type:Carton Packing;
Delivery Detail:7 days after payment;Current Range:0.5mA-40A;
Accuracy Class:0.5;Single package size:41X28X20 cm;
Selling Units:Single item;Voltage Range:5V-600V;
Dimensions:355mm*225mm*112mm;Communication Interface:RS232, RS485;
Measuring Voltage Range:5V-600V;Model Number:PM9813;
Display:LED Digital Screen;Measuring items:Voltage,current,power,power factor,frequency;

NAPUI PM9813 Single Phase Multi-functional Small Current Digital Power Meter Analyzer Model

We Support light customization,please contact us for more details at any time if necessary.



Products Features:

1. LED digital screen display, voltage, current, power, power factor/frequency

2. All measurements are Trms

3. Automatic range

4. Accuracy: 0.5

5. Not affected by external noise

6. Support data locking

7. Can be set current and power lower and upper alarm function, PASS the light is Green, NG the light is Red, Easy to distinguish



Areas of Application:

Power consumption test for household appliance

Power consumption test for the air-condition

Power consumption for light products

Power consumption test for LED Lamps

Test for electric machine and Motor

Test for chargers and switching power supply



Connection

Single Phase

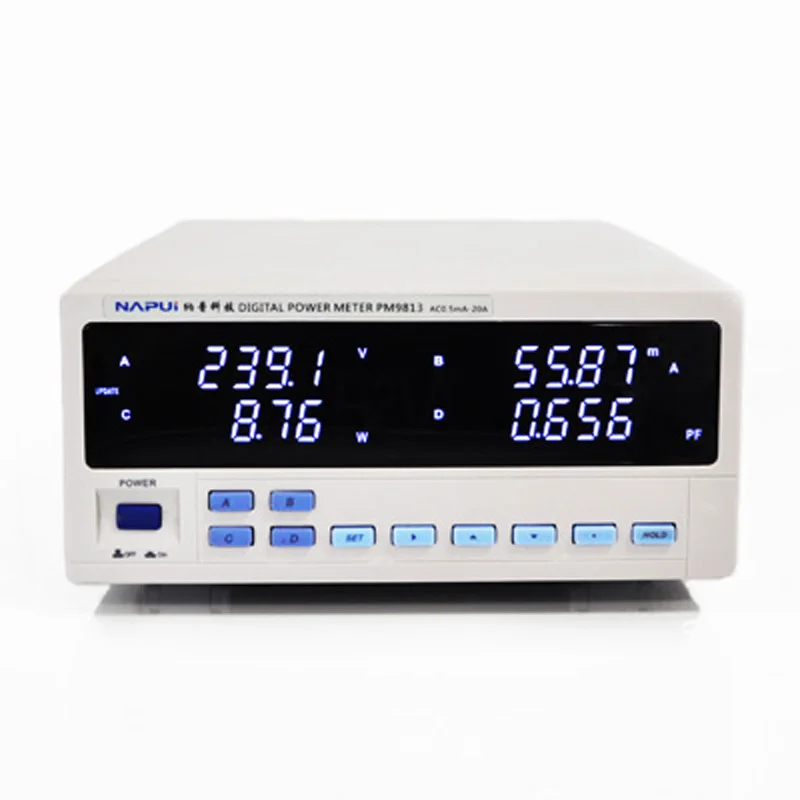

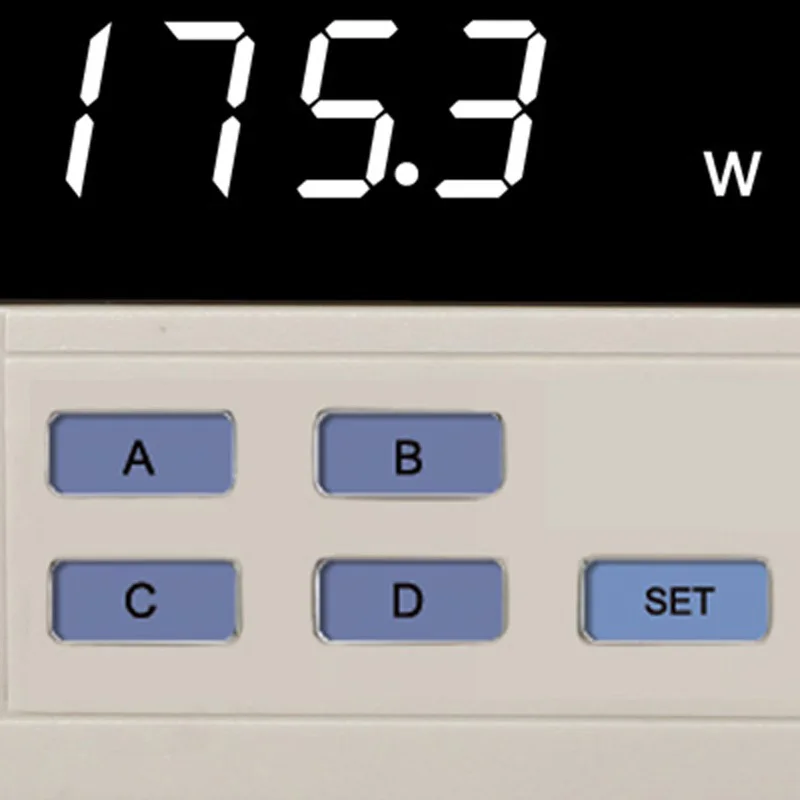

Display

LED Digital Screen

Measuring items

Voltage-V, current-A, active power-W, power factor-PF, frequency-Hz

Voltage Range

5V-600V AC(Switch the range automatically

Peak Voltage:700V AC

Min test voltage:5V(Below 5V can be customized)

Current Range

0.5mA-40A AC (Switch the range automatically)  Peak Current:52A AC

Min. test current :0.5mA AC

Power Range

0.01W-24KW(Applicable to the standby power consumption test)

Power factor range

0.001-1.000

Compute mode: watt(W)/[Voltage(V)*current(A)]=Power factor(PF)

The frequency range

45-65Hz

Communication Interface

Optional RS232 or RS485, Relay output function

Basic Accuracy

±(0.4% reading +0.1%range+1 digit)

Measuring Speed

Five times per second

Input Impedance

About 2MΩ(All voltage)

Power supply

100~250V AC,45-400 Hz, 100-300V DC

Volume and weight

355mm(L)*225mm(W)*112mm(H),size:225mm(W)*99mm(H)≈1.7KG

Attachment

Power line, operation Manual, warranty card
