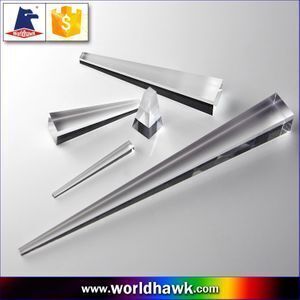

Tapered Light Pipe Prism Homogenizing Rods for LED Sources and so on

Supplier: Changchun Worldhawk Optics Co., Ltd.
Region: Jilin, China
Contact: Ms Lucy liang
Price: $4.00 / >=5 pieces
Min. Order: 5 pieces

Click here to contact

Product details

Packaging Detail:	About Tapered Light Pipe Prism package Inner packing-------special protective packing for optical products. Outer packing------carton, Shock absorption material and bubble wrap Transportation-----International Air Transport(UPS DHL FEDEX SF...);	Surface Accuracy:	1/4 lambda, 1/8lambda or better;
Clear Aperture:	≥90%;	Dimension Tolerance:	±0.2mm;
Surface Quality:	40/20;	Angle Tolerance:	+/- 2 arc seconds;
Coating:	Mirroring coating or customized;	Dimension (mm):	0.5mm-380mm;
Place of Origin:	Jilin China (Mainland);	Dimension tolerance:	±0.2mm;
Flatness:	1/4 Lambda or 1/8 Lambda;	Brand Name:	Worldhawk;
Model Number:	WH-PT;	Bevel:	<0.2±45°;
Port:	Any port of China Shanghai Shenzhen Changchun...;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,PayPal;
Surface Quality:	60/40, 40/20, 20-10;	Material:	N-BK7, UV Fused Silica, CaF2, ZnSe, or Ge etc.;
Supply Ability:	3000 Piece/Pieces per Month Upon the quantity;	Delivery Detail:	Shipped in 15 days after payment;

Prism Parameters

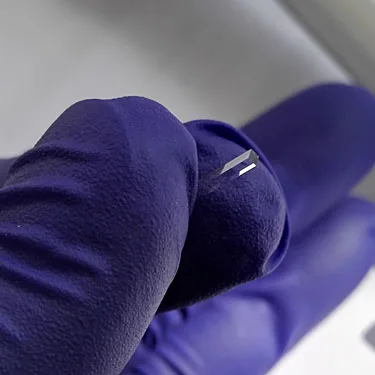

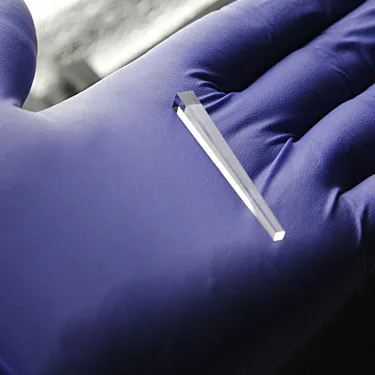

+ Tapered Light Pipe Prism Homogenizing Rods

Light pipe homogenizing rods utilize total internal reflection to homogenize non-uniform light sources regardless of their spectral characteristics. TECHSPEC® Tapered Light Pipe Homogenizing Rods are available in both 2X and 3X magnifications. The Numerical Aperture (NA) of the light output is reduced proportionally to the magnification, allowing significant reduction in NA of the output light.

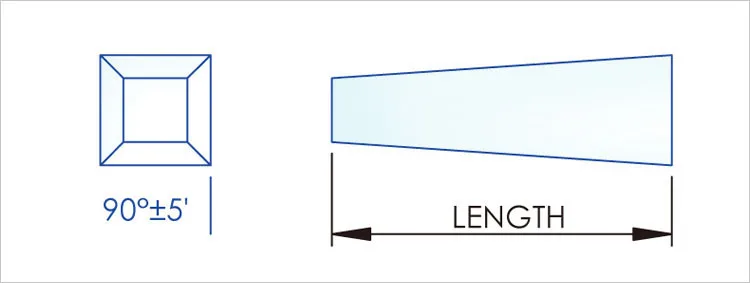

Tapered Light Pipe

+ General Parameters (Tapered Light Pipe Prism Homogenizing Rods)

	Standard	High Pricision
Material	N-BK7, Fused Silica, Custom
Size	0.5mm-380mm
Size tolerance	±0.1mm	±0.03mm
Angle Tolerance	<3'	<0.5''
Clear Aperture	≥90%	100%
Surface Quality	60/40, 40/20	20/10, 10/5
Surface Flatness	1/2 lambda, 1/4lambda	1/10Lambda, 1/20Lambda
Parallelism	+/-3' , +/-30''	<0.5''
Bevel	<0.2mm±45°	No Bevel (The Angle is unbroken)
Coating	Uncoated, AR, BBAR, Reflective

Customize
You can customise this product to your needs, please contact us for custom solution.

[ Click here to get quotes ]

+ Processing Equipment:

+ Other Optical Prisms
Prisms are widely used in optical system, which can reflect, deviate and rotate beams of light as well as dispersing their wavelengths.
Worldhawk offers many types of high precision prisms including Right Angle Prisms, Dove Prisms, Panta Prisms, Roof Prisms, Beamsplitters, Wedge Prisms, Rhomboid Prisms, Corner Cube and Tapered Light Pipe Prism etc..,
Worldhawk accepts the following products customized services: micro-prism, special angle prism, high-precision prism ......
Please email to sales at worldhawk.com for get an offer.

We accept high-precision and small quantities of custom prism services.

Click on the image above to get more product information!

Testing / Production

+ Inspection

Advanced testing equipment and methods are important guarantee for the production of high-precision products.

+ Our Factory

Advanced processing equipment and complete production system are ensure that we can effectively control every aspect of the product process to ensure product quality, and reduce losses and reduce costs!

Company / Catalogue

+ Company

Changchun Worldhawk Optoelectronics Co., Ltd, established in 2010 in China Optical City - Changchun, we have three branches in Changchun, Nanjing and Hong Kong.

Worldhawk is the professional supplier for the optical products with much experience in optics design, research and development, manufacturing and export. We have many experienced engineers and many skilled workers, they are the important guarantee for the higher quality products. We can ensure higher qualified rate because of the precision testing equipment.

We can provide all kinds of optical products processing, coating service, assembling the lens and high-altitude monitoring quipment and so on. We consider our customer relationship to be a valuable asset, We understand that your application is not standard and so we offer customization of all of our products.
