Certification: | CE; | Compressor type: | Semi -Hermetic Screw; |
cooling capacity: | 130720 Kcal/h; | Warranty: | 1 year; |
Dimension(L*W*H): | 2550*750*1580mm; | Weight: | 350-800kg; |
Lifetime: | more than 5 years; | Payment Terms: | L/C,T/T,Western Union; |
Control Type: | water circulation cooling water chillersion Valve; | Condition: | New; |
temperature range: | 3C~50C; | Safety setting: | 6 protections; |
Port: | Jiangmen/Shenzhen/Shanghai; | Evaporator style: | shell and tube; |
Type: | Water-Cooled; | Applicable Industries: | Manufacturing Plant; |
Condenser Type: | shell and tube; | Voltage: | 3PH~220V/380/415V~50HZ/60HZ; |
refrigerant: | R22/R407C; | Place of Origin: | Guangdong China; |
Brand Name: | XIECHENG; | Supply Ability: | 150 Set/Sets per Month; |
Packaging Detail: | Plywood case/Wood frame/Polythene film (Best protection to the goods); | After-sales Service Provided: | Video technical support,Online support; |
Power(W): | 152000; | Input Power: | 37000; |
Top Quality Industrial Water Cooling Chiller

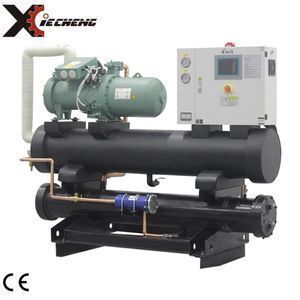

XIECHENG 50HP/36KW Industrial Water Chiller for All Kinds of Factories and Plants
The Water Chiller is to provide a cooling process for better industrial production. In plastic molding industry,
it improves quality of molded products and shorten period of injection molding cycles.
Hence maximizes productivity of plastic molding manufacturing.
And water could be used in various of different industries, just depends on the needs.

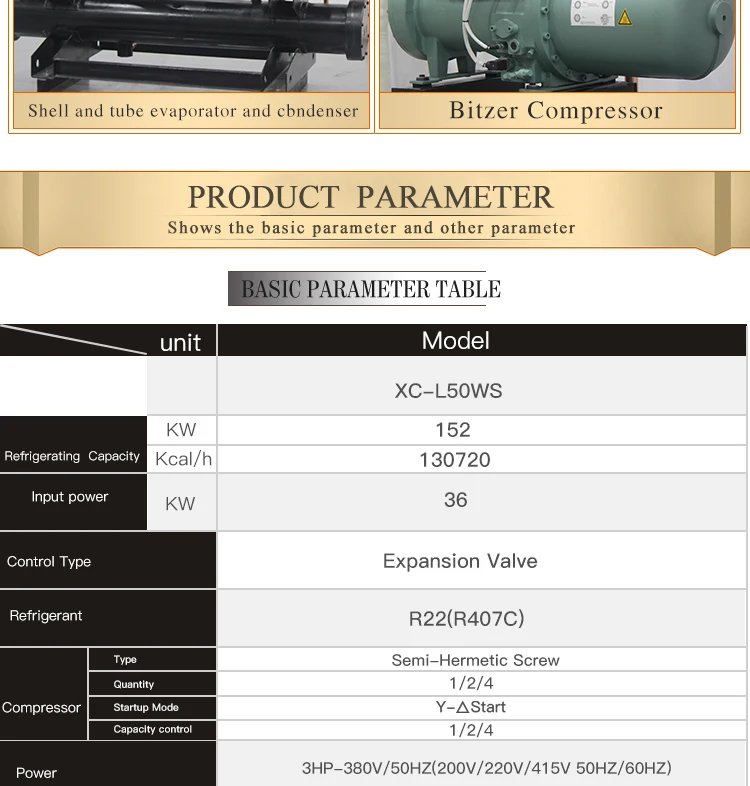

Model | UNIT | XC-L30WS | XC-L40WS | XC-L50WS | XC-L60WS | XC-L80WS | |
Refrigerating capacity | kw | 88 | 116.7 | 146.4 | 172 | 230 | |
kcal/h | 75680 | 100362 | 125904 | 146716 | 197800 | ||
Input Power | Kw | 22 | 30.9 | 37.9 | 45.8 | 60 | |
Control type | expansion valve | ||||||
Refrigerant | R22(R407C) | ||||||
Compressor | Type | Semi-hermetic Screw | |||||
quantity | 1 | 2 | |||||
Startup mode | Y- | ||||||
Capacity control | 0-25-50-75-100 | ||||||
Power | 3PH-380V/50HZ(200V/220V/415V 50HZ/60HZ) | ||||||

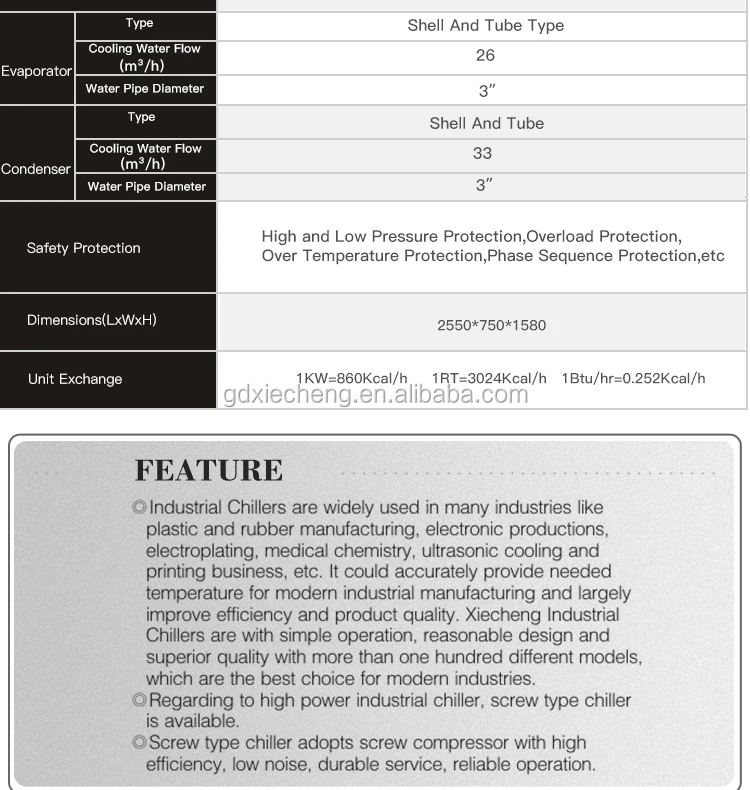

evaporator | Type | Shell and tube type | |||||
Cooling water flow (m3/h) | 19 | 21 | 26 | 30 | 39 | ||
inet and outlet pipe caliber (Inch) | 3" | 3" | 3" | 3" | 4" | ||
condenser | Type | Shell and tube | |||||
Cooling water flow (m3/h) | 21 | 26 | 33 | 40 | 45 | ||
inet and outlet pipe caliber (Inch) | 3" | 3" | 3" | 3" | 4" | ||
Dimensions(L*W*H) | mm | 1980*750*1580 | 2350*750*1580 | 2550*750*1580 | 2550*985*1600 | 3600*765*1650 | |
Net Weight | KG | 750 | 850 | 950 | 1150 | 1580 | |
unit exchange | 1kw=860Kcal/hr 1RT=3024Kcal/hr 1Btu/hr=0.252Kcal/hr |
What we provide with XIECHENG Industrial Water Chiller ?
1. A-class compressors from famous brands, high efficient shell condensers and evaporators*
-- excellent cooling, quiet with low electric consumption.
2. Microprocessor control--easy to operate;
3. Special open type reservoir tank with stainless steel--easy to clean and maintain;
4. Well designed and reasonable Pipelines-ensures power supply and saves energy;
5. Precise electronic thermostatic controller--accurately maintains temperature range from 30C to 50 0C*;
6. Current-overload protector, high-and-low pressure switches, electronic time delayer, fault display system--Safe and durable;
7. Liquid crystal display showing temperatures of outlet and inlet chill water--provides visualized and direct setting;
9. Single, double or quadruple compressors combination available--economic and efficient;
10. Industrially designed--elegant and economic with friendly connections between human & machine.
"*": Refers to depending on customer's requirement; Ultra low temperature down to -30 0C available with Ultra Cooling Models.
