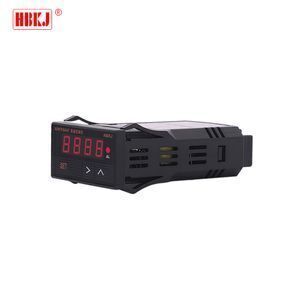

Universal 1/32 DIN Digital Controller Of Multifunction Auto meter AC85-265V DC12V DC24V
-
Supplier: Shenzhen Chuangyuantong Technology Co., Ltd. -
Region: Guangdong, China -
Contact: Ms. Bella T -
Price: $21.00 /piece -
Min. Order: 1 piece
| Brand Name: | HBKJ; | Single package size: | 12X9X6 cm; |
| Measuring Precision: | 0.2%FS±1; | Input Voltage: | AC/DC 85-260V 50/60Hz; |
| Brand: | HBKJ; | Package Preview: | https://sc01.alicdn.com/kf/HTB1K9APafjsK1Rjy1Xaq6zispXak.jpg_640x640.jpg; |
| Power Consumption: | <5W; | Display: | LED (red,green, blue, white, or other colors); |
| Model Number: | XMT600 / XMT600B; | Ambient Temperature: | 0-50; |
| Single gross weight: | 0.256 KG; | Selling Units: | Single item; |
| Measuring Range: | -1999~9999; | Open Size: | 45*22mm; |
| Place of Origin: | Beijing China (Mainland); | Delivery Detail: | 0 days after payment; |
| Outline Dimension: | 48*24*75mm; | Operating ambient humidity: | <85%RH, no corrosive gas; |
Universal 1/32 DIN Digital Controller Of Multifunction Auto meter AC85-265V DC12V DC24V

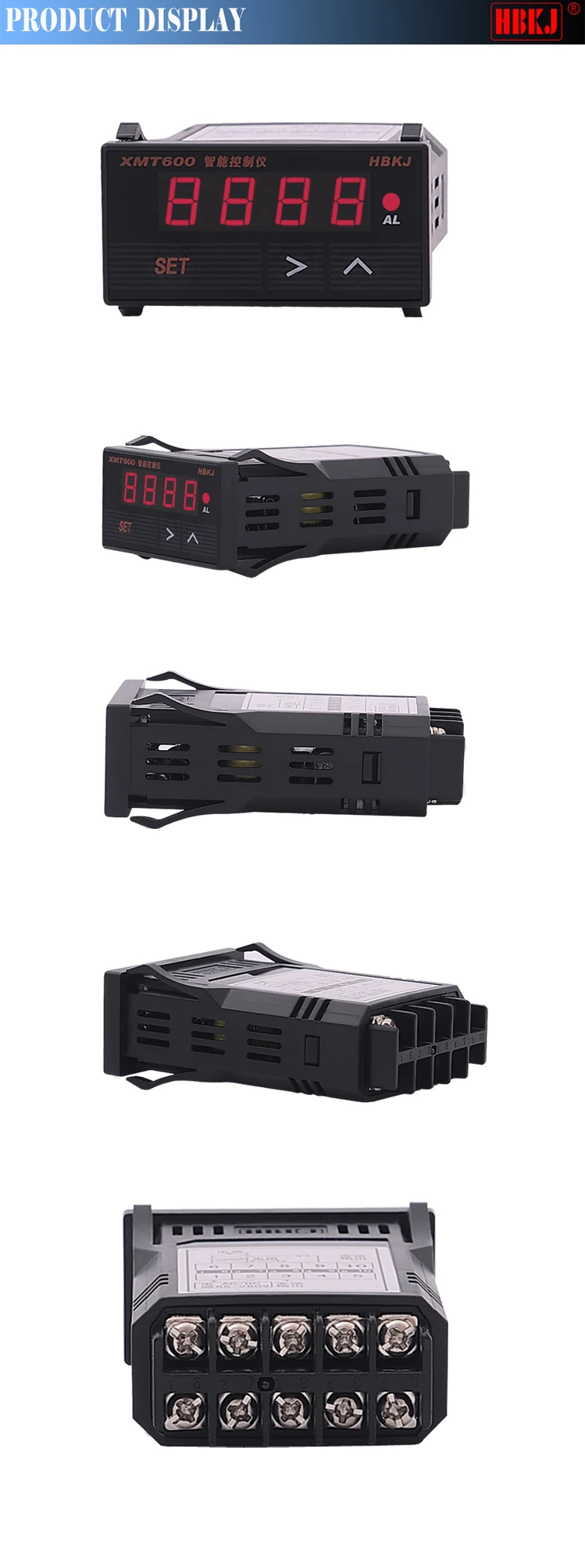

XMT600 XMT600B LED Display Intelligent Digital controller
Input Signal | RTD input(Pt100,Cu50) ; Thermocouple input(T, R, J, B, S, K, E, WRe3-WRe25) Standard Signal input(0-375Ω, 0-75mV, 0-30mV, 0-5V, 1-5V, 0-10V, 0-10mA, 0-20mA, 4-20mA) |
Power supply | AC/DC85-260V (Other Voltage can be customized) |
Contact capacity | AC 250V/3A; DC24V/5A |
Power Consumption | <5W |
Display Range | -1999~9999 |
Transmitting Output Signal | 0~20mA, 4-20mA, 0-5V, 0-10V |
Measure accuracy | ±0.2%FS |
Environment | 0~+50°C;≤85%RH |
Display | LED(red, blue, white, green, orange) |
Outline Dimension | 48×24×75mm |
Open Size | 45×22mm |
1. Characteristic
(1).Various RTD, thermocouples or standard input signals can be selected at
will. Display scope can be calibrated for nonlinear signal, and it can be set
for linear signal.
(2).Isolated transmitting output is 12 bit resolution. Its scope can be set.
(3).Two relay contact outputs can be set to high/low, high/high-high or
low/low alarm action types.
(4).Has cold junction compensation function for a thermocouple sensor
(5).Has sensor disconnection alarm function.
2. Our Advantages
Customized: We are the manufacturer! sample & OEM &ODM are available!
Safety: We have own test chart, all of our products have been rigorously tested in the factory.
Higt Quality:Our company uses the most advanced equipment to make the best quality products.
Certification: We have CE,ROHS,FCC and quality management system certification
Applications
Model XMT Series have display, control and transmit functions, and have been applied to many automatic control fields.
- Thermal Power
- Mechanical and electrical equipment
- Building automation
- Municipal engineering
- Solar power
- Petrochemical
- Metallurgy
- Water supply system
1. Packaging Information
2. Terms Of Payment
Payment Terms: We accept any payment, Such as T/T, L/C, PayPal, Western Union, D/P, D/A, O/A, MasterCard, Cash, etc
