Brand: | HBKJ; | Operating ambient humidity: | <85%RH, no corrosive gas; |
Display: | LED (red,green, blue, white, or other colors); | Input Voltage: | AC/DC 85-260V 50/60Hz; |
Outline Dimension: | 96*48*112mm; | Package Preview: | https://sc01.alicdn.com/kf/HTB1K9APafjsK1Rjy1Xaq6zispXak.jpg_640x640.jpg; |
Place of Origin: | Beijing China; | Single gross weight: | 0.25 KG; |
Single package size: | 6X12X12 cm; | Open Size: | 92*44mm; |
Selling Units: | Single item; | Brand Name: | HBKJ; |
Measuring Precision: | 0.2%FS±1; | Ambient Temperature: | 0-50; |
Measuring Range: | -1999~9999; | Model Number: | XMT604 / XMT604B; |
Power Consumption: | <5W; |
`

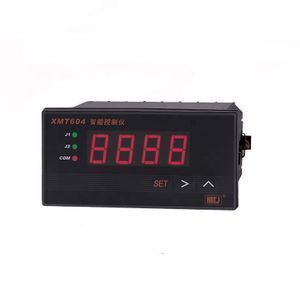

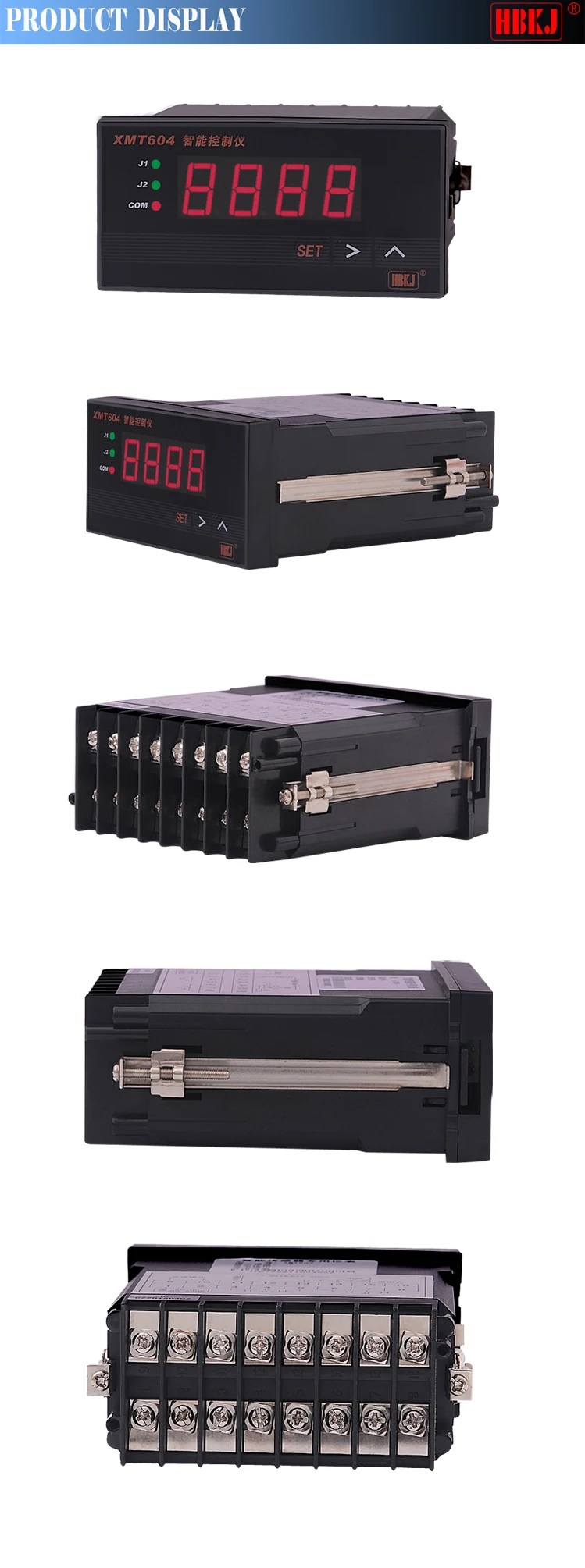

XMT604 XMT604B LED Display Intelligent Digital controller
Input Signal | RTD input(Pt100,Cu50) ; Thermocouple input(T, R, J, B, S, K, E, WRe3-WRe25) Standard Signal input(0-375Ω, 0-75mV, 0-30mV, 0-5V, 1-5V, 0-10V, 0-10mA, 0-20mA, 4-20mA) |
Power supply | AC/DC85-260V (Other Voltage can be customized) |
Contact capacity | AC 250V/3A; DC24V/5A |
Power Consumption | <5W |
Display Range | -1999~9999 |
Transmitting Output Signal | 0~20mA, 4-20mA, 0-5V, 0-10V |
Measure accuracy | ±0.2%FS |
Environment | 0~+50°C;≤85%RH |
Display | LED(red, blue, white, green, orange) |
Outline Dimension | 96×48×112mm |
Open Size | 92×44mm |
1. Characteristic
(1).Various RTD, thermocouples or standard input signals can be selected at
will. Display scope can be calibrated for nonlinear signal, and it can be set
for linear signal.
(2).Isolated transmitting output is 12 bit resolution. Its scope can be set.
(3).Two relay contact outputs can be set to high/low, high/high-high or
low/low alarm action types.
(4).Has cold junction compensation function for a thermocouple sensor
(5).Has sensor disconnection alarm function.
2. Our Advantages
Customized: We are the manufacturer! sample & OEM &ODM are available!
Safety: We have own test chart, all of our products have been rigorously tested in the factory.
Higt Quality:Our company uses the most advanced equipment to make the best quality products.
Certification: We have CE,ROHS,FCC and quality management system certification
Applications
Model XMT Series have display, control and transmit functions, and have been applied to many automatic control fields.
1. Packaging Information
2. Terms Of Payment
Payment Terms: We accept any payment, Such as T/T, L/C, PayPal, Western Union, D/P, D/A, O/A, MasterCard, Cash, etc
