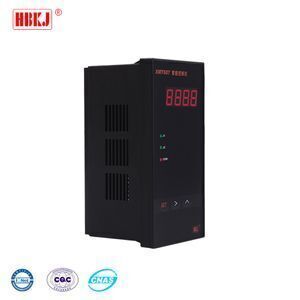

XMT607 Intelligent Digital Indicator for Pressure Sensor
-
Supplier: Shenzhen Chuangyuantong Technology Co., Ltd. -
Region: Guangdong, China -
Contact: Ms. Bella T -
Price: $21.00 /piece -
Min. Order: 1 piece
| Open Size: | 76*152mm; | Package Preview: | https://sc01.alicdn.com/kf/HTB1K9APafjsK1Rjy1Xaq6zispXak.jpg_640x640.jpg; |
| Ambient Temperature: | 0-50; | Brand Name: | HBKJ; |
| Operating ambient humidity: | <85%RH, no corrosive gas; | Outline Dimension: | 80*160*80mm; |
| Single gross weight: | 0.25 KG; | Measuring Precision: | 0.2%FS±1; |
| Input Voltage: | AC/DC 85-260V 50/60Hz; | Measuring Range: | -1999~9999; |
| Model Number: | XMT607 / XMT607B; | Place of Origin: | Beijing China (Mainland); |
| Display: | LED (red,green, blue, white, or other colors); | Power Consumption: | <5W; |
| Selling Units: | Single item; | Single package size: | 6X12X12 cm; |
| Brand: | HBKJ; |

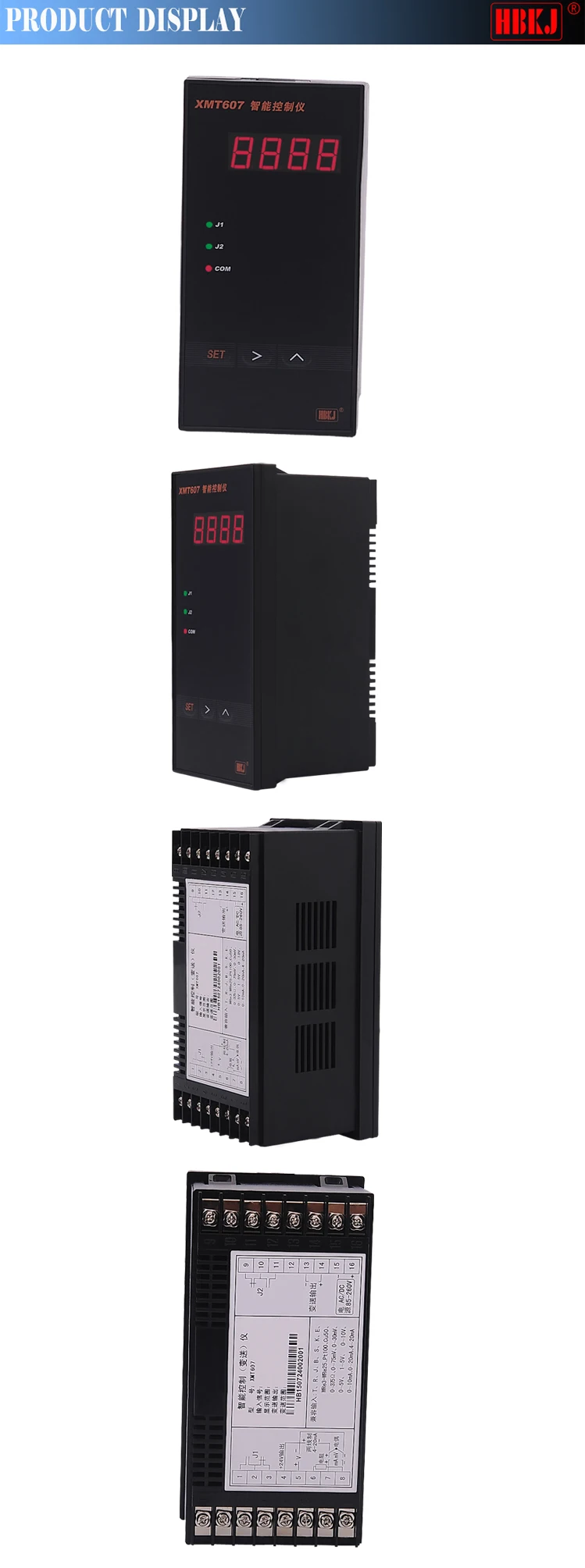

XMT607 Intelligent Digital Indicator for Pressure Sensor
XMT607 XMT607B LED Display Intelligent Digital controller
Input Signal | RTD input(Pt100,Cu50) ; Thermocouple input(T, R, J, B, S, K, E, WRe3-WRe25) Standard Signal input(0-375Ω, 0-75mV, 0-30mV, 0-5V, 1-5V, 0-10V, 0-10mA, 0-20mA, 4-20mA) |
Power supply | AC/DC85-260V (Other Voltage can be customized) |
Contact capacity | AC 250V/3A; DC24V/5A |
Power Consumption | <5W |
Display Range | -1999~9999 |
Transmitting Output Signal | 0~20mA, 4-20mA, 0-5V, 0-10V |
Measure accuracy | ±0.2%FS |
Environment | 0~+50°C;≤85%RH |
Display | LED(red, blue, white, green, orange) |
Outline Dimension | 80×160×180m |
Open Size | 76×152mm |
1. Characteristic
(1).Various RTD, thermocouples or standard input signals can be selected at
will. Display scope can be calibrated for nonlinear signal, and it can be set
for linear signal.
(2).Isolated transmitting output is 12 bit resolution. Its scope can be set.
(3).Two relay contact outputs can be set to high/low, high/high-high or
low/low alarm action types.
(4).Has cold junction compensation function for a thermocouple sensor
(5).Has sensor disconnection alarm function.
2. Our Advantages
Customized: We are the manufacturer! sample & OEM &ODM are available!
Safety: We have own test chart, all of our products have been rigorously tested in the factory.
Higt Quality:Our company uses the most advanced equipment to make the best quality products.
Certification: We have CE,ROHS,FCC and quality management system certification
Applications
Model XMT Series have display, control and transmit functions, and have been applied to many automatic control fields.
- Thermal Power
- Mechanical and electrical equipment
- Building automation
- Municipal engineering
- Solar power
- Petrochemical
- Metallurgy
- Water supply system
