Packaging Detail: | 400 ton mechanical power press with steel pallet shipped in container China manufacturer supply single cank 400 ton hot forging press; | Port: | Shanghai; |
Place of Origin: | Jiangsu China; | Power Source: | Mechanical; |
After-sales Service Provided: | Engineers available to service machinery overseas; | Power(W): | 37kw; |
overload protected system: | hydraulic overload pump; | CNC or Not: | Normal; |
lubrication system: | auto grease pump; | Voltage: | 380V; |
body: | c frame, steel welded; | Condition: | New; |
After-sales Service Provided: | Online support, Video technical support, Free spare parts, Field installation, commissioning and training; | metal stamping machine: | China manufacturer supply Single cank 400 ton hot forging press; |
Control System: | PLC(Touch Screen); | Brand Name: | WORLD; |
capacity: | 400 ton; | Dimension(L*W*H): | 2850x1750x4140mm; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Weight: | 29500kg; |
Certification: | CE,ISO; | control: | plc with cam controller; |
transmission: | single crankshaft, cross located; | Warranty: | 12months; |
clutch: | wet type pneumatic clutch; | Supply Ability: | 2000 Unit/Units per Year China manufacturer supply single cank 400 ton hot forging press; |
China manufacturer supply single cank 400 ton hot forging press
China manufacturer supply single cank 400 ton hot forging press
As a kind of general punching machine, C frame mechanical power press including single crank press or double crank press, mechanical clutch press or pneumatic clutch press, capacity range from 25ton to 400ton. No matter what stamping parts you produce, hard wares, tools, aluminum circles, auto parts, electric parts, home appliance parts, or mobile phone parts, you can find one or two models punching press here.

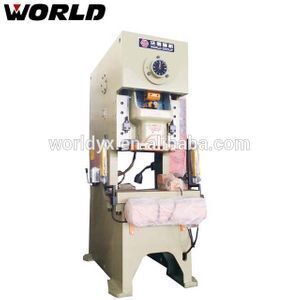

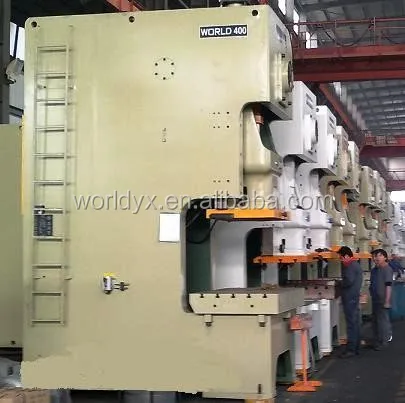

Features:400 ton C frame single action metal stamping machine
400 ton C frame single action metal stamping machine 400 ton C frame single action metal stamping machine
1. Steel welded body, tempering treatment, high rigidity, accuracy and stability;
2. Vertical located crankshaft, compact structure;400 ton C frame single action metal stamping machine
3. The crankshaft undergoes grinding treatment after high frequency quenching;
4. Lengthened rectangular guideway with a surface of bronze plate; 400 ton C frame single action metal stamping machine
5. Pneumatic dual balance cylinder, which balances the slide block and punch weight to reduce noise and impact;
6. PLC control and imported safety dual valve; 40 0 ton C frame single action metal stamping machine
7. Wet clutch and hydraulic overload protector. 400 ton C frame single action metal stamping machine
8. CE certificate 400 ton C frame single action metal stamping machine

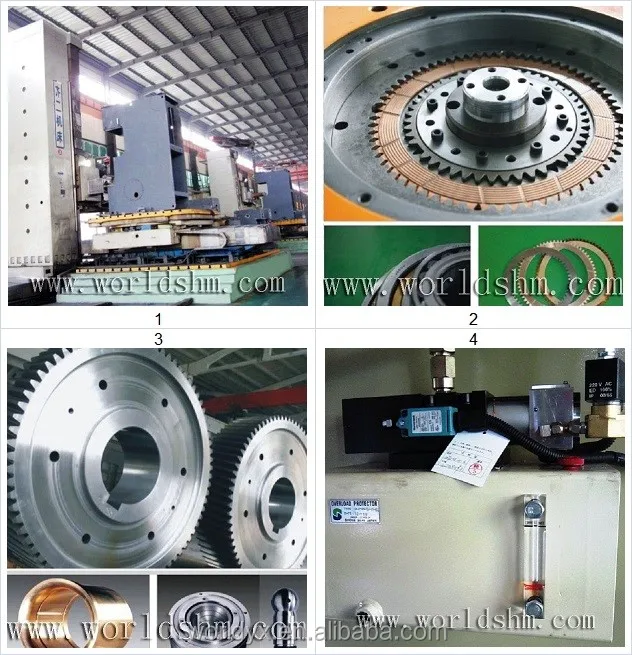

Details:400 ton C frame single action metal stamping machine
400 ton C frame single action metal stamping machine
1. Steel plate welded c frame body, heat treatment, produced by cnc boring and milling center, high rigidity and precission 400 ton C frame single action metal stamping machine
2. Wet type pneumatic clutch with safety solenoid valve, lower noise and longer service life.
3. Best quality gears, bushes, cylinders, link rods and ball screw ensure the high performance, high reliability and longer service life. 400 ton C frame single action metal stamping machine
4. Hydraulic overload protected system is standard equipped. The press will stop with oil pressure release if overload to protect the press and the die. It is easy to reset to normal status. 400 ton C frame single action metal stamping machine
5. PLC control, Omron or Panasonic brand, high quality with global warranty.
6. Double hands control buttons, touch screen control panel, cam controller with encoder.
7. Slide adjust motor is equipped on the back of the slide. This position is better to protect the motor and the press is more compact in this way. The slide is motorized adjusted with digital displayer.
8. Center auto grease lubrication system is standard equipped and the lubrication frequency can be setted with the touchscreen. In the meanwhile, manual thin oil lubrication system is equipped too.
Specifications:

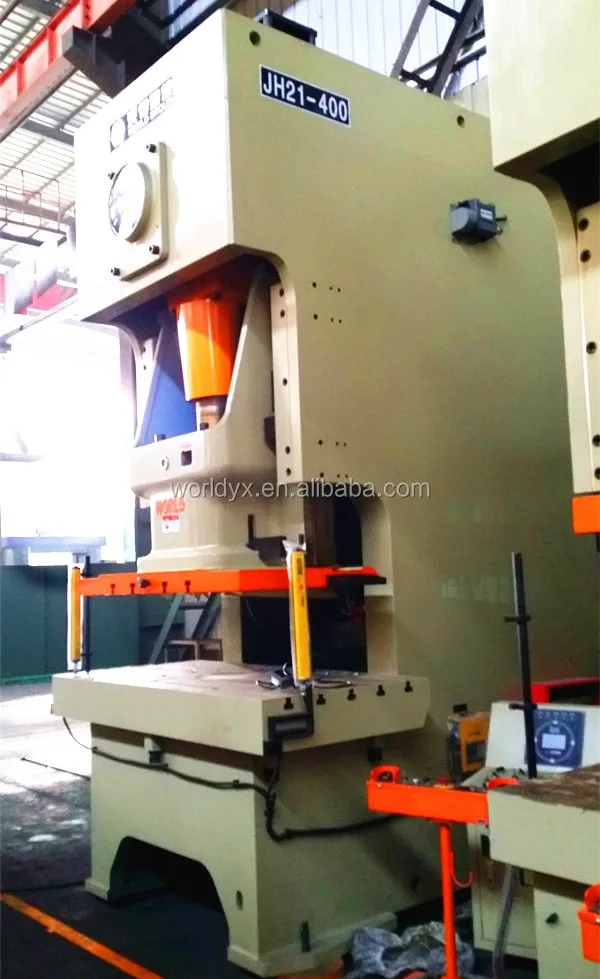

ITEM | CODE | UNIT | JH21-400 | |
Nominal Capacity | Pe | KN | 4000 | |
Slide Stroke | S | mm | 250 | |
Slide Strokes | Fixed | spm | Times/min | 30 |
Variable(optional) | spm | Times/min | 20-30 | |
Max. Die Shut Height | H2 | mm | 550 | |
Die Shut Height Adjustment | t | mm | 120 | |
Throat Depth | C1 | mm | 490 | |
Distance Between Uprights | d1 | mm | 1050 | |
Slide Bottom Size | FB | b | mm | 750 |
LR | a | mm | 1020 | |
Shank Hole Size | Diameter | d | mm | 70 |
Depth | I | mm | 130 | |
Bolster Size | FB | D | mm | 950 |
LR | C | mm | 1700 | |
Thickness | H3 | mm | 210 | |
Bed Opening Hole Diameter | ¢ | mm | 290 | |
Overall Dimensions | FB | A | mm | 2850 |
LR | B | mm | 1750 | |
Height | H | mm | 4150 | |
Motor Power | KW | 37 | ||
Weight(approximate) | kg | 31600 |

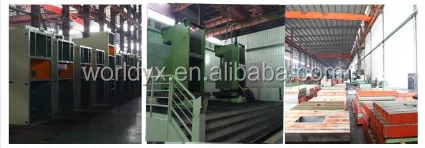

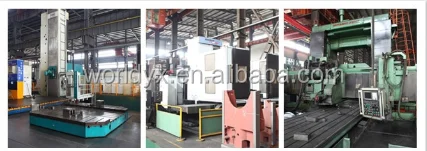

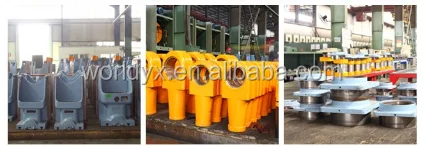

Workshop:
\
Shanghai Yingxin World Machinery Co., Ltd was established in Shanghai which acted as an exporting centerof world group.
World Precise Machinery Group establishes in 1953 which is located in Shanghai economic zoom. World Precise Machinery is the pioneer of the first five years planning of the New China, and also is one of the oldest and most professional manufacturer of punching equipment. After listing in Singapore market, World’s products are paid great attention with high quality and superb technique.It includes 20 series 200 types of products such as all types of presses, shearing machines, bending machines and punching machines. These machines are widely applied in the fields of space, automobile manufacture, communications and computers.
Options: Quality certificate:
- light curtain for safety - ISO 9001
- inverter for adjustable stroke speed - CE
- variable speed motor for adjustable stroke speed - SGS inspection if needed
- cushion
- hydraulic die quick change device
Warranty and service:
- one year warranty for whole press.
- all spare parts are available as we produce most of the parts in our factory.
- it is easy to get the electric parts as all are international famous brands.
- we can provide technical support via email, phone or video.
- we can send out engineers for service, installation or training with reasonable additional cost.
- English operation and maintenance manual is provided with the press.
- All safety warning tags and control panels are in English.
Our products range: www.worldpowerpress.com
- J23 and JH23 inclinable eccentric press, capacity from 6.3ton to 125ton.
- JH21 c frame single crank press, capacity from 25ton to 400ton.
- JH31 semi-straight side single crank press, capacity from 110ton to 400ton.
- JW31 H frame single crank press, capacity from 110ton to 400ton.
- JH25 c frame double crank press, capacity from 110ton to 315ton.
- JW36 H frame double crank press, capacity from 110ton to 500ton.
- JX36 close type big table press with double crank, capacity from 400ton to 1000ton.
- JS36 close type gear press, capacity from 300ton to 1250ton.
- JS31 close type gear press, capacity from 160ton to 1000ton.
- hydraulic shearing machine
- hydraulic press brake and cnc press brake
For more information, please contact:
