Payment Terms: | L/C,D/A,D/P,T/T,Western Union; | Supply Ability: | 10000 Piece/Pieces per Year 88HP 1.4m3 Grain Tank Kubota Type Small Rice Wheat Harvester Com; |
Grain Tankl: | 1.4m3; | Place of Origin: | Jiangsu China; |
Engine: | Changchai 88hp; | Name: | 88HP 1.4m3 Grain Tank Kubota Type Small Rice Wheat Harvester Combine; |
Type: | Combine Harvester; | walk speed: | 0-9km/h; |
Condition: | New; | Model: | 4LZ-4.0E; |
Weight: | 2900kg; | Packaging Detail: | 3 PCS in 40HQ. 88HP 1.4m3 Grain Tank Kubota Type Small Rice Wheat Harvester Combine; |
Drive Type: | Gear Drive; | After-sales Service Provided: | Engineers available to service machinery overseas; |
feeding capacity: | 4kg/s; | Application: | Rice; |
Usage: | Grain Harvester; | Cutting width (mm): | 2200mm; |
Warranty: | 1 Year; | Certificate: | ISO; |
HST: | Korea HST; | Brand Name: | WORLD; |
Port: | Shanghai; | Dimension(L*W*H): | 4900x2890x2700mm; |
Gearbox: | ZKB65; |

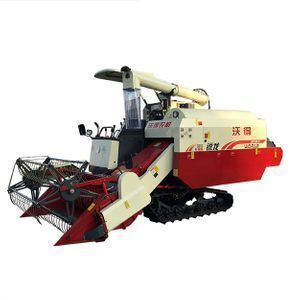

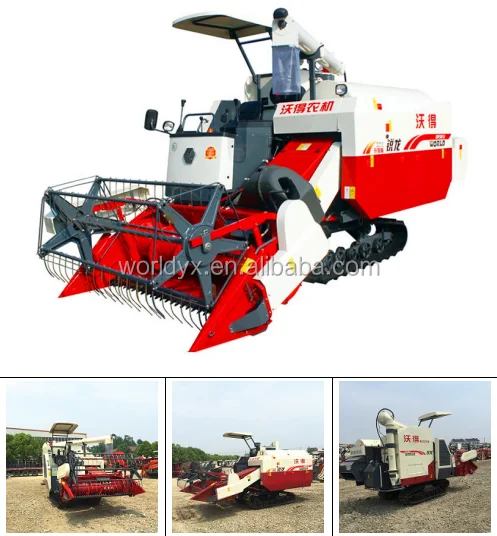

88HP 1.4m3 Grain Tank Kubota Type Small Rice Wheat Harvester Combine
Main Detail Specifications
Feeding Capacity (kg/s) | 4 | ||
Work Dimension L*W*H (mm) | 4900*2890*2700 | ||
Weight (kg) | 2900 | ||
Cabin/Sun shade | Sun shade | ||
Engine Part | Model No. | Changchai 4L88 | |
Power/Speed (hp/rpm) | 88/2700 | ||
Fuel | Light Diesel Oil | ||
Fuel Capacity (L) | 130 | ||
Fuel Consumption(kg/hm2) | 12~30 | ||
Start | Motor Starter | ||
Gear Box | ZKB65 made by WORLD Factory. | ||
HST | 40CC HST Imported from south Korea. | ||
Walking Part | Rubber Track | Length of Ground Contact (mm) | 1700 |
Center Distance (mm) | 1160 | ||
Size(mm) | 450*90*51 | ||
Average Contact Pressure (kpa) | ≤20Kpa | ||
Min. Ground Clearance (mm) | 300 | ||
Gear Shifts | Variable Sun-transmission 3 Shifts | ||
Walk Speed (Km/Hour) | Low:0~1.85 Medium:0~6.5 High:0~9 | ||
Theoretical Work Speed (Km/Hour) | 0.9-6.5 | ||
Harvesting Unit | Grain Lifter | Divider | |
Working Width (mm) | 2200 | ||
Reel Bat | Dia. × Length (mm) | 900×2028 | |
Gearshift Method | Constant Speed | ||
Adjusting Means | Hydraulic | ||
Stubble Height[Lift] (mm) | 25cm or above | ||
Threshing &Harvesting Unit | Threshing Mode | Axial Flow Type, Bullet Rotor | |
Threshing Rotor | Type of Threshing | Beat Bar | |
Dia. ×Length (mm) | 620*2050 | ||
Rotating Speed(rpm) | 662/732 | ||
Fan | Diameter | 400 | |
Separating Type | Vibrating Sieves +Air Blow | ||
Area of Sieves (Lowe and Upper Sieves) (m2) | |||
Grain-unload Unit | Grain Tank Capacity (M3) | 1.4 | |
Grain Discharging Type | 360 Degree Rotary Discharging Pipe | ||
Alarm Units | Water Temperature, Battery, Oil, Grain Tank, Jam of 2# Auger | ||
Work Efficiency(hm2/h) | 0.4~0.7 | ||
Crops | Rice, Wheat |
Big Capacity 150LFuel Tank,1.4CBM Big GrainTank : 360 degree discharging pipe:
Vertical discharging pipe
