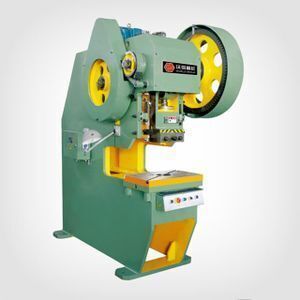

10 ton Deep Throat small punching power press machine price(J21S-10)

Supplier: Shanghai Yingxin World Machinery Co., Ltd.
Region: Shanghai, China
Contact: Mr Savvy World Machinery
Price: $3000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Place of Origin:	Jiangsu China;	Warranty:	2 years;
punching press:	10 ton Deep Throat small punching power press machine price(J21S-10);	Nominal capacity:	10Ton;
Machinery Test Report:	Provided;	Warranty of core components:	2 years;
Single gross weight:	65.0 KG;	Stroke speed:	145 spm;
Video outgoing-inspection:	Provided;	Throat Depth:	300mm;
Weight (KG):	900;	After-sales Service Provided:	Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;
Marketing Type:	New Product 2020;	Brand Name:	WORLD;
Packaging Detail:	steel pallet;	stroke length:	45mm;
After Warranty Service:	Video technical support,No service,Online support,Spare parts,Field maintenance and repair service;	Single package size:	86X69X180 cm;
weight:	900kg;	Showroom Location:	None;
Key Selling Points:	Long Service Life;	power:	1.1kw;
Condition:	New;	Applicable Industries:	Manufacturing Plant,Machinery Repair Shops;
Selling Units:	Single item;	body:	casted;
Local Service Location:	None;	Core Components:	Gear;

10 ton Deep Throat small punching power press machine price(J21S-10)

Specifications:

Item		Unit	J21S-10	J21S-16	J21S-25	J21S-40	J21S-63	J21S-80	J21S-100
Nominal capacity		KN	100	160	250	400	630	800	1000
Slide stroke length		mm	45	55	65	90	110	120	140
Stroke speed		times/minute	145	125	55	45	40	38	38
Max. die shut height		mm	180	220	270	320	390	440	480
Die shut height adjustment		mm	35	45	55	65	80	90	100
Throat depth		mm	300	500	600	710	800	800	900
Columns distance		mm	208	278	330	470	590	600	720
Slide bottom size	L-R	mm	170	200	250	300	400	430	540
Slide bottom size	F-B	mm	150	180	220	260	360	360	480
Size of handle hole	Diameter	mm	30	40	40	50	50	60	60
Size of handle hole	Depth	mm	55	60	60	70	70	75	75
Size of worktable	L-R	mm	370	450	560	700	860	950	1080
Size of worktable	F-B	mm	240	300	370	460	570	650	710
Thickness of worktable		mm	35	40	50	65	80	100	120
Table hole diameter		mm	80	100	120	150	180	200	220
Worktable surface to ground distance		mm	730	750	800	835	860	850	850
Overall dimensions	F-B	mm	835	1250	1835	2338	2748	2720	2815
	L-R	mm	665	850	950	1335	1500	1715	1790
	Height	mm	1763	2030	2215	2660	2828	3290	3625
Power of electric motor		KW	1.1	1.5	2.2	5.5	7.5	7.5	11
Weight(Approximate)		KG	950	1750	2750	5900	7600	9800	10080

10 ton hydraulic press price(J21S-10)

Features:

J21S series of press machine deepens the throat, and its throat depth is four times of that of common machine. The J21S series has large work space, and it can finish the forming in one punch without turning around. It is widely used for the machining of large size plates, and all the J21S series adopt steel plates welded machine body with high strength and rigidness. The machine has reliable performance and works smoothly.

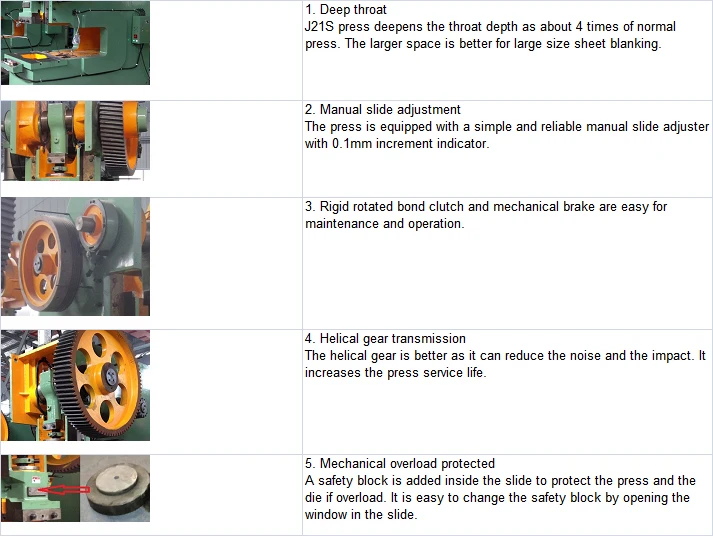

Details:
