Name: | latest agricultural machine 88 HP soybean wheat rice combine harvester; | Gearbox: | ZKB65; |
Dimension(L*W*H): | 4900x2890x2700mm; | Usage: | Grain Harvester; |
feeding capacity: | 4kg/s; | After-sales Service Provided: | Engineers available to service machinery overseas; |
Certificate: | ISO; | Model: | 4LZ-4.0E; |
Type: | Combine Harvester; | Condition: | New; |
Grain Tankl: | 1.4m3; | Supply Ability: | 10000 Pieces per Year latest agricultural machine 88 HP soybean wheat rice combine har; |
Weight: | 2900kg; | walk speed: | 0-9km/h; |
Engine: | Changchai 88hp; | Delivery Detail: | 30 days after order; |
HST: | Korea HST; | Brand Name: | WORLD; |

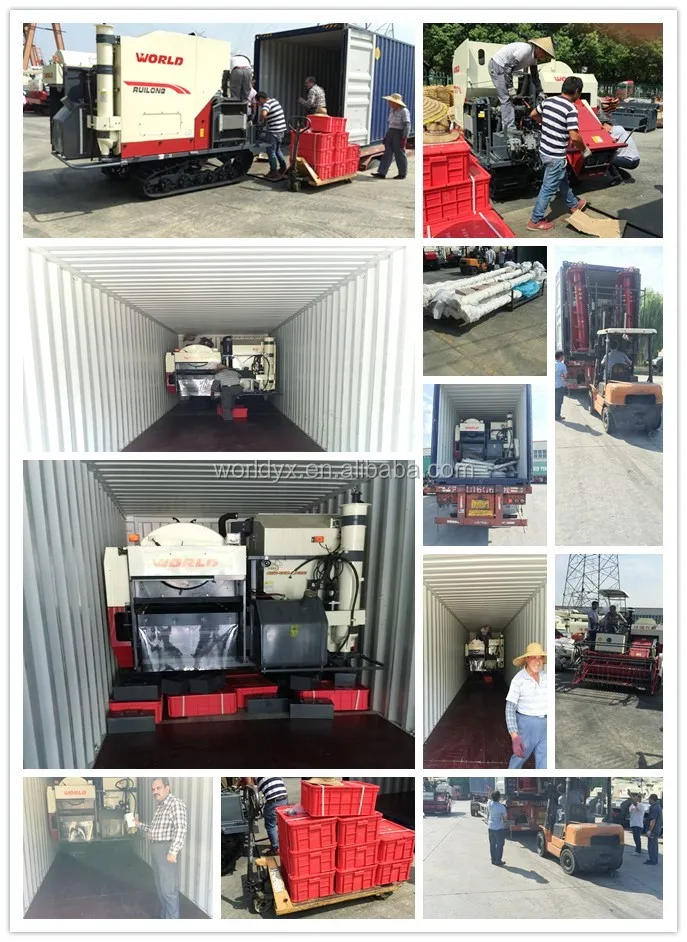

Drive Type: | Gear Drive; | Packaging Detail: | 3 PCS in 40HQ. latest agricultural machine 88 HP soybean wheat rice combine harvester; |
Cutting width (mm): | 2200mm; | Place of Origin: | Jiangsu, China; |
Port: | Shanghai; | Warranty: | 1 Year; |
Product name: | latest agricultural machine 88 HP soybean wheat rice combine harvester; | Model Number: | 4LZ-4.0E; |
Application: | Rice; |

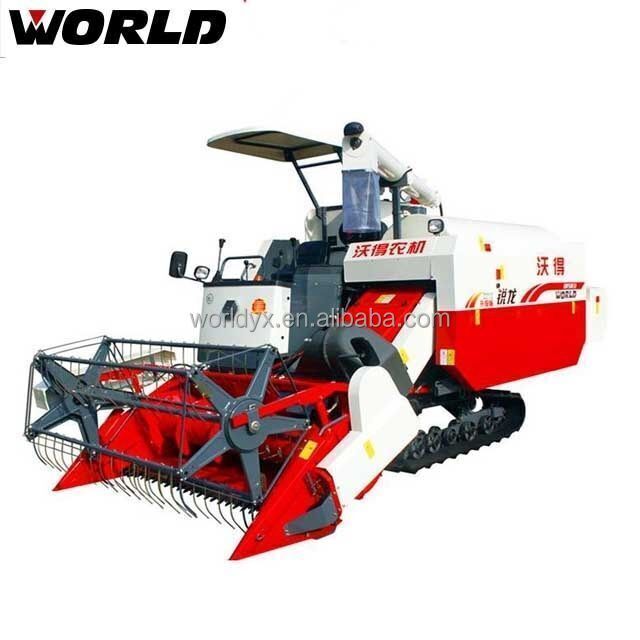

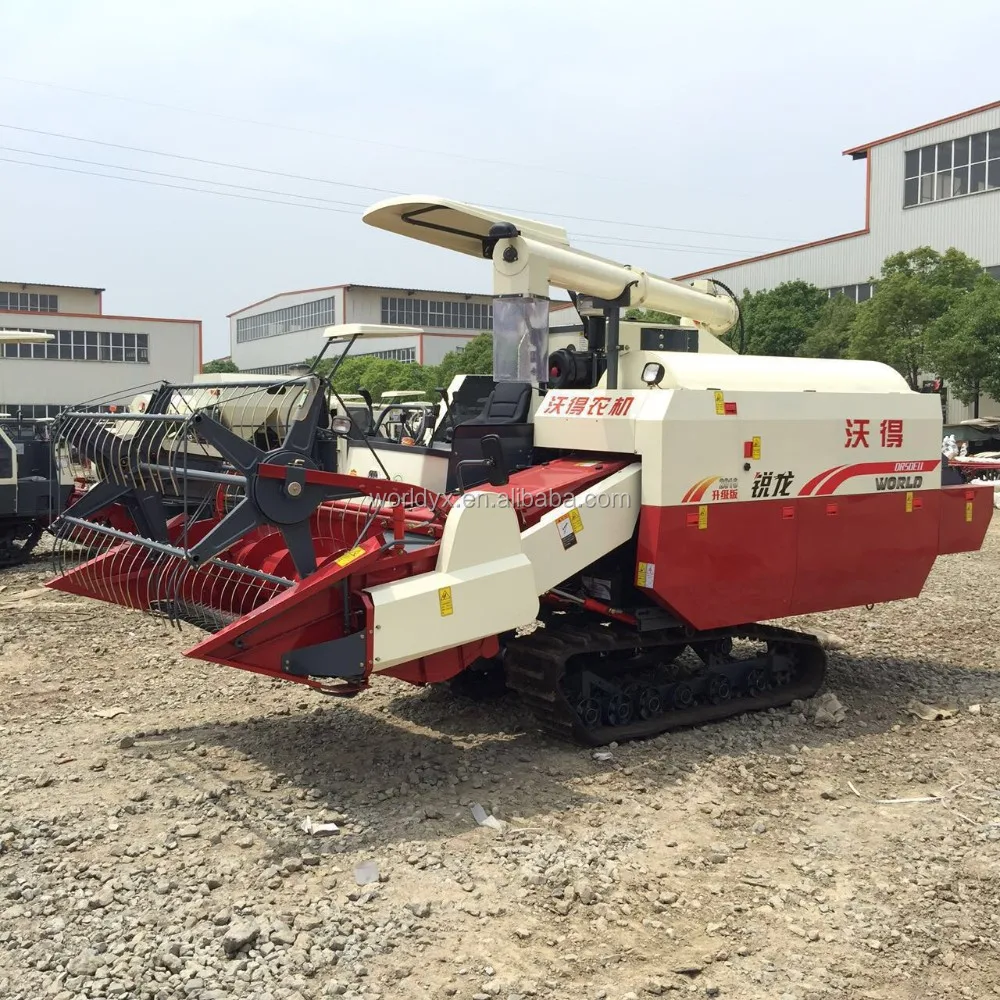

latest agricultural machine 88 HP soybean wheat rice combine harvester
Main Features:
-Changchai 4L88 engine, 88hp
-Korean imported HTS 40CC
-Imported belts
-1.4m3 grain tank
-360 degree rotary auger
-Sunshade or Cabin with A/C
Specifications of latest agricultural machine 88 HP soybean wheat rice combine harvester
Feeding Capacity (KG/s) | 4.0 | ||
Work Dimension L*W*H (mm) | 4900*2890*2700 | ||
Weight | (KGS) | 2900 | |
Cabin/Sun-roof | Sun-roof | ||
Engine Part | Model No. | Changchai 4L88 | |
Power/Speed (ps[Hp]/rpm) | 88/2700 | ||
Fuel | Light Diesel Oil | ||
Fuel Capacity (L) | 130 | ||
Fuel Consumption(kg/hm2) | 12~30 | ||
Start | Motor Starter | ||
Gear Box | ZKB65 made by WORLD Factory. | ||
HST | 40CC HST Imported from south Korea. | ||
Walking Part | Rubber Track | Length of Ground Contact (mm) | 1700 |
Center Distance (mm) | 1160 | ||
Size(mm) | 450*90*51 | ||
Average Contact Pressure (kpa[kgf]/cm2) | ≤20Kpa | ||
Min. Ground Clearance (mm) | 300 | ||
Gear Shifts | Variable Sun-transmission 3 Shifts | ||
Walk Speed (Km/Hour) | Low:0~1.85 Medium:0~6.5 High:0~9 | ||
Theoretical Work Speed (Km/Hour) | 0.9-6.5 | ||
Harvesting Unit | Grain Lifter | Divider | |
Working Width (mm) | 2200 | ||
Reel Bat | Dia. × Length (mm) | 900×2028 | |
Gearshift Method | Constant Speed | ||
Adjusting Means | Hydraulic | ||
Stubble Height[Lift] (mm) | 25cm or above | ||
Threshing &Harvesting Unit | Threshing Mode | Axial Flow Type, Bullet Rotor | |
Threshing Rotor | Type of Threshing | Beat Bar | |
Dia. ×Length (mm) | 620*2050 | ||
Rotating Speed(rpm) | 662/732 | ||
Fan | Diameter | 400 | |
Separating Type | Vibrating Sieves +Air Blow | ||
Area of Sieves (Lowe and Upper Sieves) (m2) | 1.645 | ||
Grain-unload Unit | Grain Tank Capacity (M3) | 1.4 | |
Grain Discharging Type | Vertical Discharging Pipe | ||
Alarm Units | Water Temperature, Battery, Oil, Grain Tank, Jam of 2# Auger | ||
Work Efficiency(hm2/h) | 0.4~0.7 | ||
Crops | Rice, Wheat | ||
Total Loss | Less than 2.5% | ||
Breakage | Less than 1.5% | ||
Impurity | Less than 1.5% |

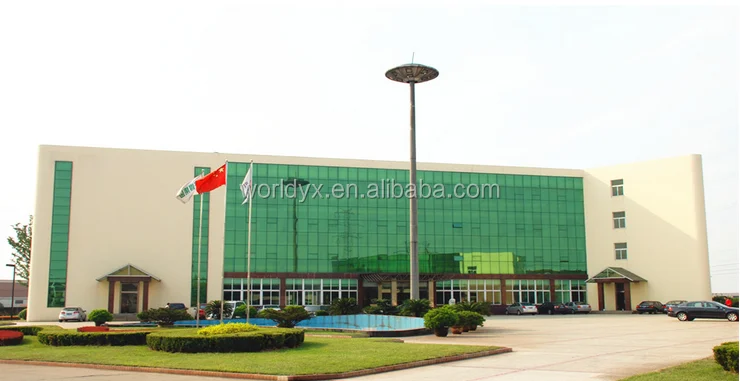

Shanghai Yingxin World Machinery Co., Ltd
was established in Shanghai which acted as an exporting center
of world group. The overseas business was growing very fast in these years. The main exporting machines include:
1.Wheel loaders with bucket capacity 1.8m3 to 3m3
2.Excavators from 1.8ton mini excavator to 42ton mining excavator
3.Some other earth moving machines and road construction machines as road roller, motor grader, bulldozer,
backhoe loader etc
4.Mechanical press with capacity 6.3ton to 1000ton
5.Hydraulic sheet shearing machine and bending machine (press brake)

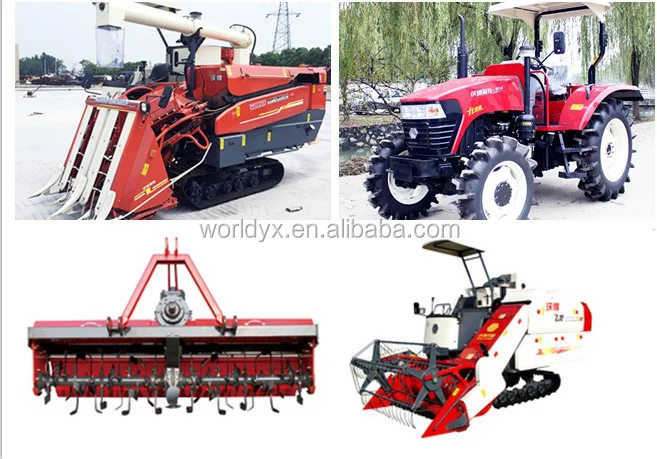

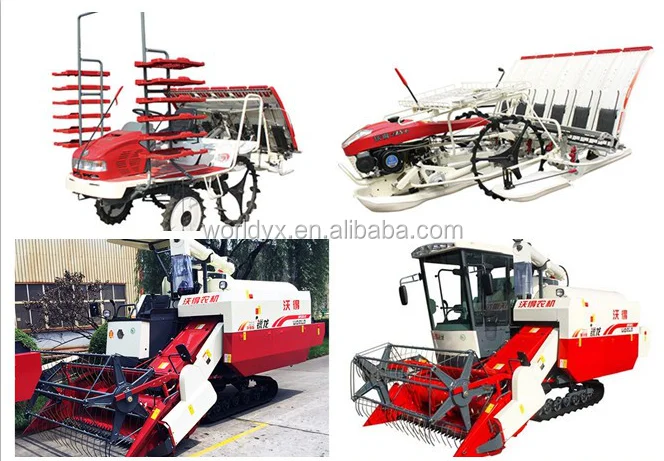

6.Agriculture machines as farm tractor and combine harvester
7.Garden tools as lawn mower and tiller etc
World provides high quality machines with reasonable prices. The exporting center can provide warranty, service, parts
and technology support for all world brand machines. Welcome to visit world facilities and hope you will like world brand
machines. Stay with world, Grow with world. One world, One dream.
