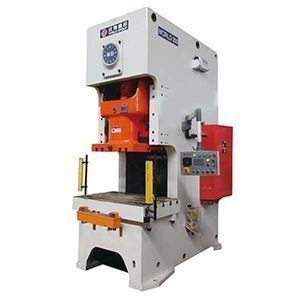

Single crank C frame JH21 power press machine

Supplier: Shanghai Yingxin World Machinery Co., Ltd.
Region: Shanghai, China
Contact: Mr Savvy World Machinery
Price: $3000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Port:	Shanghai for 25ton to 400ton C frame single crank hot forging press machine;	clutch:	wet type pneumatic clutch;
Weight:	26600kg;	Place of Origin:	Jiangsu China;
electric parts:	Schneider electric parts;	power press:	mechanical stamping press;
cam controller:	Italy ELCO brand encoder with cam controller;	Brand Name:	WORLD;
Certification:	CE;	CNC or Not:	normal;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Power Source:	mechanical;
After-sales Service Provided:	Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Engineers available to service machinery overseas;	Dimension(LWH):	2720x1680x3865mm;
forging press:	Single crank C frame JH21 power press machine;	Supply Ability:	2000 Unit/Units per Year Single crank C frame JH21 power press machine;
Nominal capacity:	25ton to 400ton;	Voltage:	380V;
Packaging Detail:	with steel pallet Single crank C frame JH21 power press machine;	Warranty:	1 YEAR;
optional equipment:	inverter, light curtain, cushion..;	Condition:	New;
Power(W):	30kw;	motor:	Siemens main motor;
PLC:	Panasonic or Omron PLC;

Product Description

Product Application

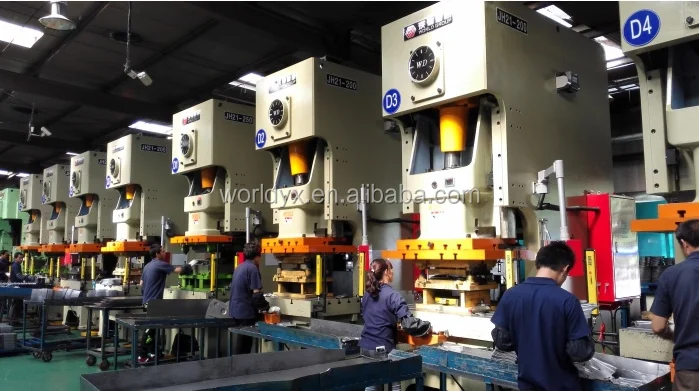

It can used for Home applicance, Air conditioner, Air cooler, refrigerator, Auto parts, Automotive parts, Car parts, Filters, Washing machine, Kitchen sinks, Kitchen products，Kitchenware,Kitchen applicance,Kitchen utensile,Kitchen supplies, Gas stove, Gas cooker, Mobile parts, Mobile phone parts， Microwave oven, hinge etc.

Single crank C frame JH21 power press machine
Nominal capacity	25ton -400ton	bolster tickness	80mm-210mm
Nominal stroke	3mm-8mm	motor	3kw-37kw
slide stroke	50mm-250mm	weight	2450kg-29500kg
slide stroke per minutes	20-150min-1	standard equipment	wet clutch
Max die set height	265mm-550mm	motor	Siemens main motor
Die height adjustment	50mm-120mm	PLC	Panasonic or Omron PLC
throat depth	210mm-490mm	electric parts	Schneider electric parts
slide bottom size	360x250mm-1020x750mm	solenoid valve	Japanese Toyooki or Taco brand safety solenoid valve
bolster size	720x400mm-1700x950mm	encoder with cam controller	Italy ELCO brand encoder with cam controller

Main Features

1)Steel welded body, tempering treatment, high rigidity, accuracy and stability;
2)Vertical located crankshaft, compact structure;
3)The crankshaft undergoes grinding treatment after high frequency quenching;
4)Lengthened rectangular guideway with a surface of bronze plate;
5)Pneumatic dual balance cylinder, which balances the slide block and punch weight to reduce noise and impact;
6)PLC control and imported safety dual valve;
7)Wet clutch and hydraulic overload protector

Certifications

Detailed Images

Machine Parts

Name: Wet type pneumatic clutch

Brand: WORLD

Original: China

Imported clutch disc, NOK seals, lower noise and maintenance cost, longer service life

Main Features

Name: double hand control buttons
Brand: IDEC
Original:Japanese

Fixe type or movable T stand

Machine Parts

Name: encoder with cam controller
Brand:ELCO
Original: Italy
Italy ELCO brand encoder with cam controller

Main Features

Name: PLC
Brand: Panasonic or Omron
Original: China
Panasonic or Omron PLC

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* catalogue support.

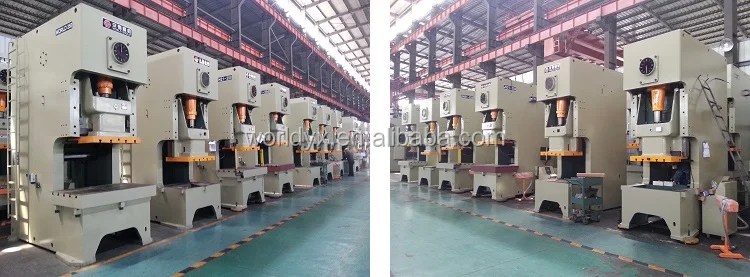

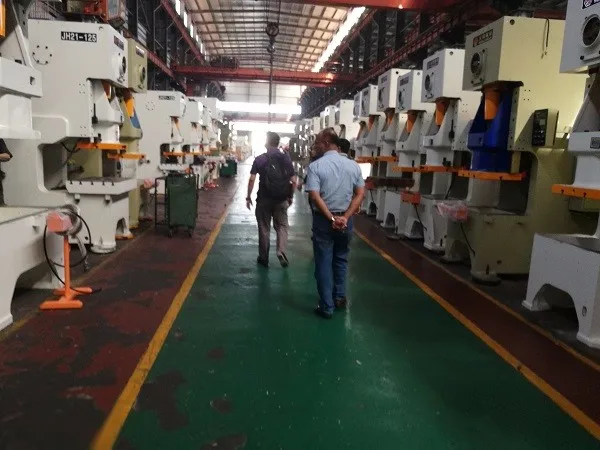

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

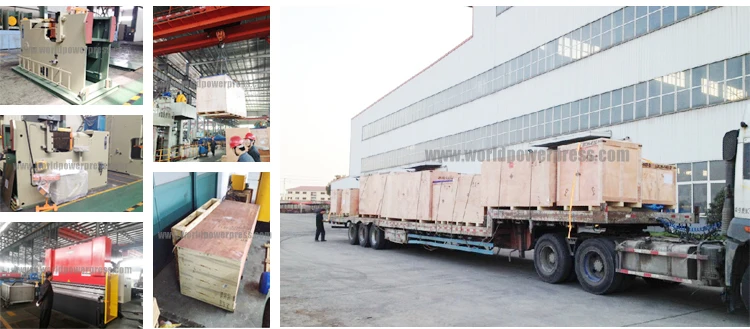

Packing & Delivery

Packaging
Size	6.058×2.438×2.591meter
Weight	17.5T

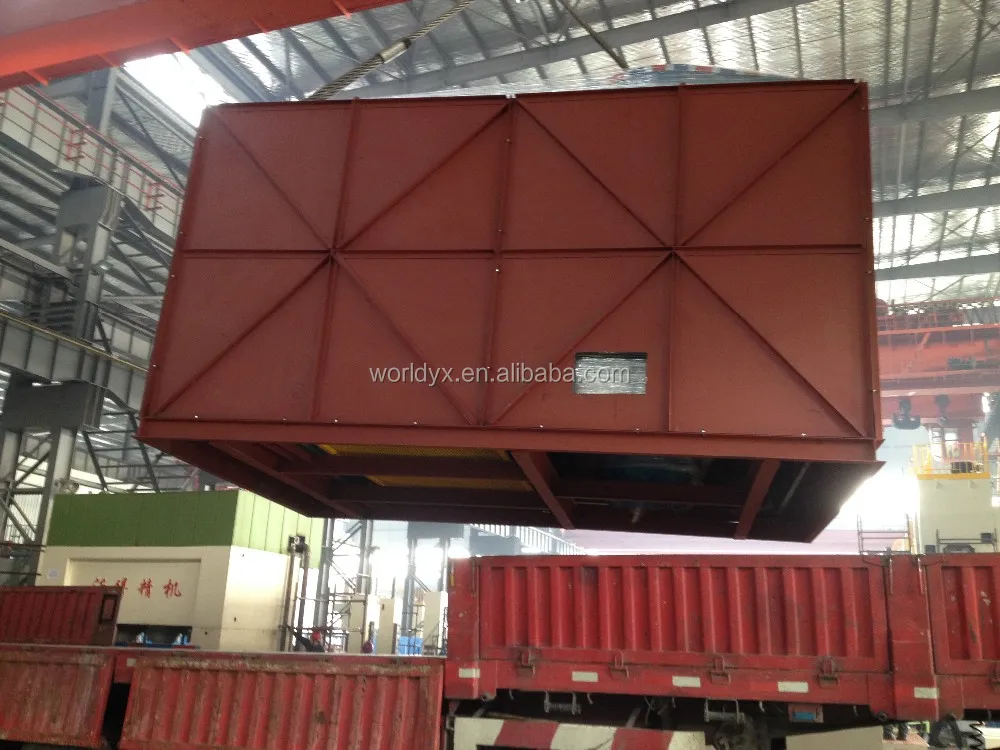

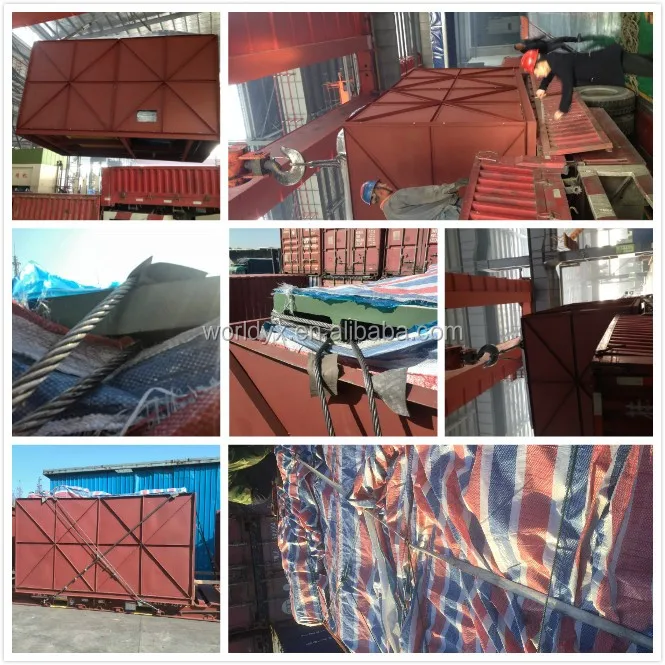

Packaging Details	The normal package is steel box(Size: LWH). If the machine is too big,we will use special container for packing or pack it according to customers special request.

Packaging
Size	12.192×2.438×2.591meter
Weight	22T
Packaging Details	The normal package is steel box(Size: LWH). If the machine is too big,we will use special container for packing or pack it according to customers special request.
