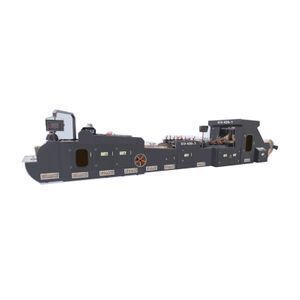

HD-430-1 Roll Fed Square Bottom Paper Food Bag Making Machine

Supplier: Shanghai Printyoung International Industry Co., Ltd.
Region: Shanghai, China
Contact: Ms Wendy Wen
Price: $50000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	Printyoung;	Supply Ability:	10 Set/Sets per Month;
Voltage:	380V;	Name:	HD-430-1 Roll Fed Square Bottom Paper Food Bag Making Machine;
Packaging Detail:	wooden case each HD-430-1 Roll Fed Square Bottom Paper Food Bag Making Machine;	Dimension(LWH):	1250022002000mm;
After-sales Service Provided:	Engineers available to service machinery overseas;	Material Core Diameter:	76mm;
Showroom Location:	Italy,Algeria,South Africa,Morocco;	Warranty:	1 year;
Port:	shanghai;	Production Speed:	80-150bags/min;
Place of Origin:	Shanghai China;	Certification:	CE;
Material:	Paper;	Applicable Industries:	Printing Shops;
Local Service Location:	Italy,Morocco,Algeria,South Africa;	Max. Paper Roll Diameter:	1200mm;
Paper Roll Width:	510-1190mm;	Model Number:	HD-430-1;
Payment Terms:	L/C,D/P,T/T;	Condition:	New;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Machine Type:	Bag Forming Machine;
Bag Type:	Shopping Bag;	Key Selling Points:	High Productivity;
After-sales Service Provided:	Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;	Paper Weight:	70-150g/m2;
Weight:	11000kg;	Computerized:	Yes;

Product Description

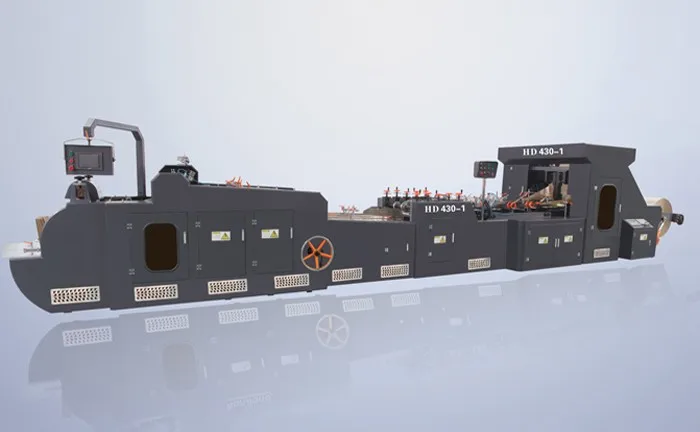

HD-430-1 Roll Fed Square Bottom Paper Food Bag Making Machine

This machine is built to make shopping bags or food bags with paper rolls, paper can be pre-printed. Machine is equipped with a photocell device. This machine features a continuous function of automatic paper feeding, gluing, creasing, bottom-sticking and bag forming at a stroke. This is ideal equipment for making paper bag for shopping, loading foods, sugar, flour and so on.

Model	HD430-1
Paper Roll Width	510-1190mm
Tube Length	280-600mm
Bag Width	160-430mm
Bottom Width	80-175mm
Paper Weight	70-150g/m²
Max. Paper Roll Diameter	1200mm
Material Core Diameter	76mm
Production Speed	80-150bags/min
Total Power	16Kw
Machine Weight	11000kg
Machine dimensions	1250022002000mm
