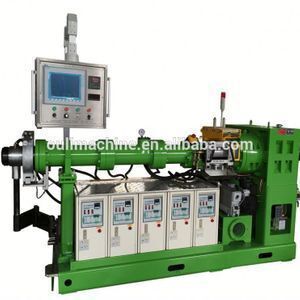

Well Known Hot Machine / Pin Barrel Cold Feed Rubber Extruder (Xj-65) Ru

Supplier: Qingdao Ouli Machine Co., Ltd.
Region: Shandong, China
Contact: Mr Roy Ren
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Engineers available to service machinery overseas;	Basement:	welding;
Place of Origin:	Shandong China;	Name:	hot feed rubber extruder (xj-65);
Certification:	ISO9001:2008/CE;	Power(W):	160KW;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Port:	Qingdao port , Dalian port ,Shanghai port ,Tianjin port etc;
Gearbox:	Hard gear reducer;	Brand Name:	OULI;
Colour:	Required;	Condition:	New;
Warranty:	3 Years;	Delivery Detail:	30 days after ordering;
Application:	rubber extruding;	Motor:	AC or DC;
Model Number:	XJW-150;	Supply Ability:	30 Set/Sets per Month;
Certification:	CE SGS ISO;	Voltage:	Required;
Screw material:	38CrMoAlA;	Type:	Rubber Kneader;
Voltage:	required;	Packaging Detail:	Package: standard export wooden case;
Dimension(LWH):	350032002800mm;	Bush:	Bearing;
Weight:	1t-22t;

Well Known Hot Machine / Pin Barrel Cold Feed Rubber Extruder (Xj-65) Ru

NAME : hot feed rubber extruder (xj-65)

MODEL : XJW-150

hot feed rubber extruder (xj-65) parameter

hot feed rubber extruder (xj-65)
Parameter/model	XJD-75	XJD-90	XJD-120	XJD-150	XJD-200	XJD-250
Screw dia.(mm)	75	90	120	150	200	250
L/D	8-14	12-16	12-16	12-18	12-18	12-18
Screw speed(r/min)	60	~60 (55)	~50	~45	~33	~26
Motor power(kw)	37-45	45~75	75~110	160~250	220~355	355~450
Capacity(kg/h)	100-180	250~350	600~800	1000-1500	1600-2500	2800-3500
Total weight(t)	2.1	3	4.2	5.5	9.8	15

hot feed rubber extruder (xj-65) configuration

hot feed rubber extruder (xj-65) features

1. Screw is made of best 38CrMoALA, its hardness is higher generally than HRC62 ( 60-65 ), Depth of nitrogen is higher than 0.55-0.7 mm ( 0.4-0.7 )

2. Bush is also made of 38CrMoALA, its hardness is generally higher than HRC66( 65-70 ), Depth of nitrogen is generally higher than 0.55-0.7 mm ( 0.4-0.7 mm )

3. Feeding device is made of feeding roller and feeding barrel, Feeding roller is driven by gears and its structure resembles Italy type. The rubber will never leak out, then it is never impossible for that the rubber enters into the bearing bush.

4.the rubber strainer can be used in different applications,including single head,doublehead ,hot feed,cold feed.

5.the machine ody is equipped with a temperature retulation device.the screw and bushes are subjected to nitrogenation treatment to get enough strength and excellent wear-resistance.

6.the head is fitted with a mechanical cutter,which operates hydraulically,the operation is sample and easy.

hot feed rubber extruder (xj-65) package and FAQ

1. Ship date: 30----120 working days

2. Payment terms: T/T or L/C

3. Full range of devices to be provided on schedule, as per client demands.

4. Responsible for training works and maintenance of the machine

5. Responsible for installing and debugging all devices.

6. Formula available and long term technical supports.

7. Guarantee: 2 years guaranteed repair and lifelong tracking service,with parts provided.

8. Package: standard export wooden case

Qingdao Ouli machine CO., LTD was located in beautiful Jiaonan , the west coast of Qingdao city Shandong province China. Ourcompany is specialized in Rubber machinery production enterprise with R &D, design, production, sales and service.

OULI main products:

Rubber mixing equipment: kneader, bucket,mixing mill, bale cutter

Rubber calendaring machine: 2 roll ,3 roll, 4roll calender, calendaring line

Rubber vulcanizing machine: Four-column press, Frame press, E-type press,tire and tube press , Belt vulcanizing press .

Rubber extruding equipment: Hot feed extruder,cold feed extruder

Automatic and semi-automatic waste tirerecycling equipment

Reclaimed rubber production line

The productshave been exported to many countries and districts around the world, such as America, France, Canada, Australia, Southeast Asia, and the Middle East. By theadvanced quality and service, our products have gained the praise of domesticand foreign customers.

hot feed rubber extruder (xj-65)
