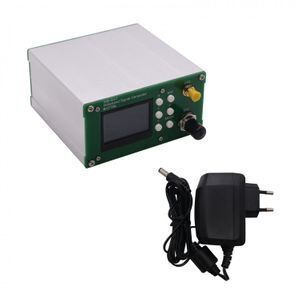

WB-SG11Hz-8GHz Wideband Signal Generator with Make-Break Modulation + Power Adapter

WB-SG11Hz-8GHz Wideband Signal Generator with Make-Break Modulation + Power Adapter

Features:
- 1Hz-8GHz output with make-break modulation and built-in OCXO
- Can be connected to external reference
- CH1 Frequency Range: 1Hz-200MHz
- CH1 Stepped Frequency: 1Hz-19.999999MHz/1Hz, 20MHz-200MHz/10Hz
- CH1 Output Amplitude: 3.3Vpp
- CH1 Interface Type: BNC
- CH2 Frequency Range: 35MHz-8GHz
- CH2 Stepped Frequency: 35MHz-4G/0.5KHz, 4G-8G/1KHz
- CH2 Modulation: ON/OFF (Make-Break) Modulation; Modulation Frequency 1Hz-1MHz; Stepped Frequency 1Hz
- CH2 Output Impedance: 50 ohm
- CH2 Interface Type: SMA
- Internal Reference Frequency: 10MHz
- Internal Reference Type: OCXO
- Internal Reference Aging: 0.5Hz/year
- 10M Reference Output Power: 5dBm
- External Reference Input Power Range: 0dBm to +20dBm
- Operating Modes: CH1 Point Frequency Mode, CH2 Point Frequency Mode, CH1 Frequency Sweep Mode & CH2 Frequency Sweep Mode

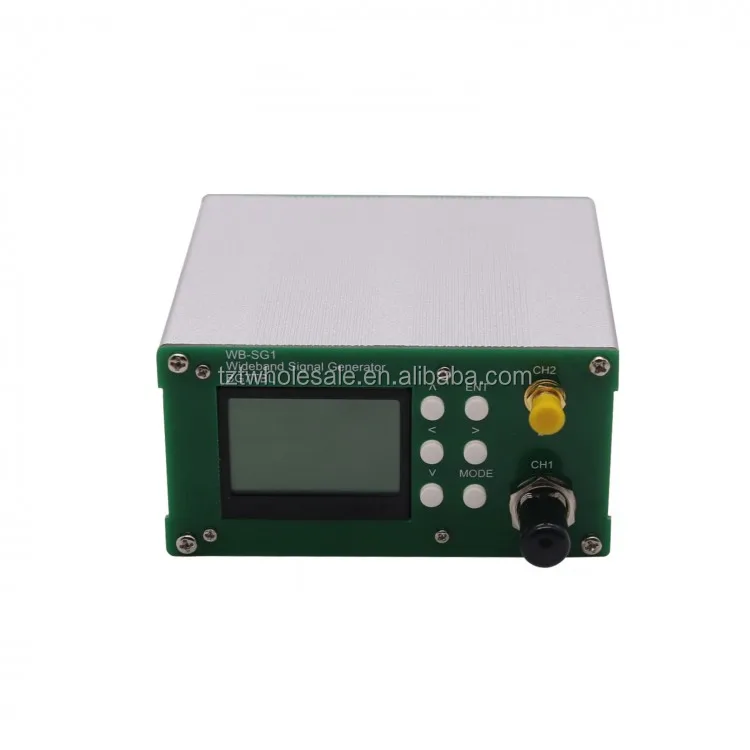

Front Panel:
- MODE: Switch Operation Modes
- ENT: Input Data
- <>^V: Left/Right/Up/Down Buttons
- CH1: Channel 1 Output
- CH2: Channel 2 Output

Rear Panel:
- 10M REF INPUT: External 10M Reference Input
- 10M REF OUTPU: 10M Reference Output
- USB: USB Port
- STD ADJ: Internal OCXO Frequency Fine Tuning
- Power Switch
- DC Socket
- Power Supply: 11.7-12.5V; Start: <0.5A; Stability: <0.25A
- Weight: 350g

Package Included:
- 1 x Signal Generator
- 1 x DC12V Power Adapter

Detail photo
