Portable Desktop/Tabletop Small Mini Dimension UV Curing Oven Dryer Machine with Conveyor
-
Supplier: Xiamen Tmax Battery Equipments Limited -
Region: Fujian, China -
Contact: Mr Aaron Huang -
Price: $1000.00 /set -
Min. Order: 1 set
| Port: | Xiamen Port; | Warranty: | 2 years; |
| Condition: | New; | Voltage: | AC220V; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union; | After-sales Service Provided: | Online support,Video technical support; |
| Brand Name: | TMAX; | Dimension(L*W*H): | 800*430*850mm; |
| Certification: | CE; | Automatic Grade: | Semi-Automatic; |
| Weight: | 30kg; | Supply Ability: | 10000 Set/Sets per Month; |
| Applicable Industries: | Battery; | Packaging Detail: | 1 Standard exported package: Internal anticollision protection, external export wooden box packaging. 2 Shipping by express, by air, by sea.; |

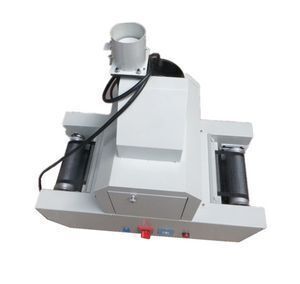

Portable Desktop/Tabletop Small Mini Dimension UV Curing Oven Dryer Machine with Conveyor
Description
This is a transmission type UV curing device, widely used in laboratory and mobile phone casings, optical discs, membrane switches, UV plastic coatings for electronic plastic casings; various UV coatings, IMD injection molding products, ink curing; for curing electronic components , liquid crystal film, terminal glue seal, mobile phone component bonding, plastic component bonding and LCD; etc.; The device is small in size, light in weight, well-made, easy to move, suitable for desktop placement.
Technical Parameter
Main wave | 365nm |
Feed height | 0-50mm |
Dimensions | 800*430*850mm |
Transmission method | Net belt transmission |
Conveying width | 200mm |
Mesh belt material | Te-flon |
Transmission speed | 0-13m/min |
Lamp | 1KW UV |
Ventilator | 120w*1 set |
Transfer motor | AC electronic governor |
UV curing machine operation:
1. Start using the program: turn on all power supplies of 220V according to the total open - drive adjustment - turn on the fan - start the UV switch
2. Stop using the program: Turn off the UV light switch - drive off switch - continue to exhaust for 10 minutes - turn off the fan switch - turn off the main power
3. Note: After the power supply is interrupted for a period of time, turn it on again, otherwise reduce the service life of the UV light fixture.
Warning: When the UV lamp is lit, it will emit strong ultraviolet rays. The skin should not be exposed to the light source. If you are worried about burns, do not look directly at the light source with your eyes, otherwise it will cause visual impairment.
If you do not understand, please contact customer service or call our company for consultation.
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
-
