TMAX Brand 300C 25Tons Laboratory Automatic Hydraulic Heat Press Automatic Lamination Heat Press

Product details
After-sales service provided:Online supportMechanical test report:if
Packaging Preview:Showroom location:not any
Main selling point:automaticbrand:TMAX
Packaging Details:1 Standard export packing: Internal anti-collision protection, external export wooden box packing. 2 Express, air, sea to find the most suitable way according to customer requirements. 3 Responsible for the damage during transportation, the damaged part will be replaced for you free of charge.Weight (kg):330kg
Supply capacity:10000 sets per monthmaximum. Operating temperature:300℃ or 500℃
Marketing Type:New Products 2020After Warranty Service:Video technical support, online support, spare parts
Applicable industries:scientific researchpayment terms:L/C,Western Union,D/P,D/A,T/T
Layers:1Health status:new
Maximum pressure (T):25 tonsport:Xiamen Port
Core components:Hot Pressplace of origin; place of origin:China
temperature control:Two digital controllersTable size (mm):200*200
Core Components Warranty:2 yearsWarranty:1 year
Local service location:not anytype:Hot Press
Video external inspection:ifPlaten area:200mm x 200mm
Product Description

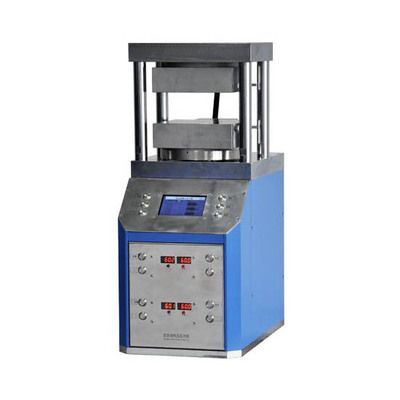

300C 25 Ton Laboratory Automatic Hydraulic Heat Press Automatic Lamination Heat Press

feature

RYJ-300 automatic high temperature heat press is an integrated widened double plate high temperature heat press developed on the basis of the original manual heat press and automatic split heat press. This heat press has a wide range of applications and meets the needs of some customers for large tonnage pressure and large area sample heating.

The hot press is mainly used in some laboratories and units that need to prepare or test powder samples, granular samples, plastic films and other solid samples under high temperature and high pressure. The chemical stability of the sample granules or powder is improved after being heated and pressurized, and it is not easy to be broken, which is beneficial to cutting and preservation.

It is very suitable for engineering and technical personnel in colleges and research institutes to perform spectrum detection and qualitative analysis.



technical parameter

model

TMAX-RYJ-300

product category

laboratory heat press

Heating die size

Double heating plate, 180mm*180mm/200x200mm/300*300mm/400*400mm optional

2 flat plates up and down, stainless steel 3Cr13, polished surface

Pressure Range and Accuracy

0-25 metric tons; accuracy 0.01 Mpa

pressurization process

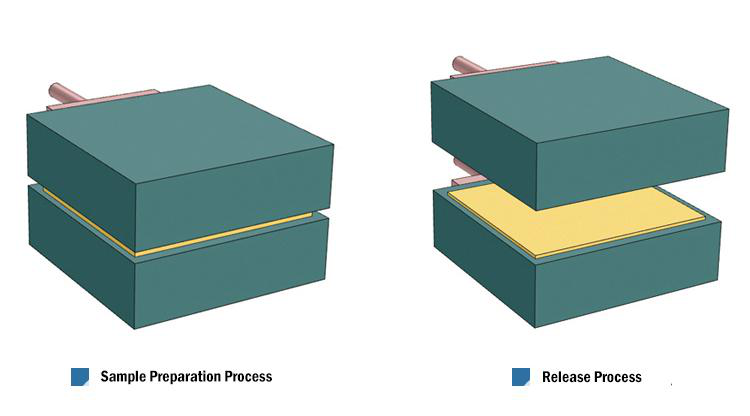

Program pressurization -- pressure maintenance -- pressure relief

compress time

0-999s

Pressure control

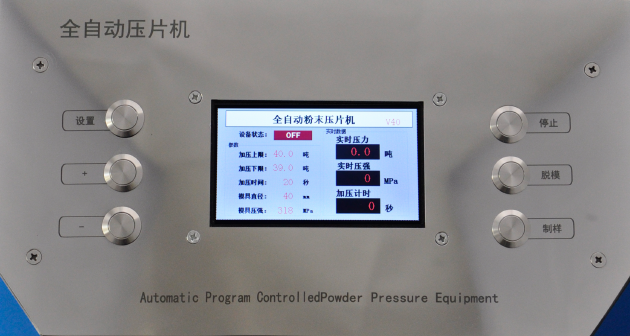

LCD touch screen automatic control; indicator/pointer type, dual scale display in tons and MPa

Piston diameter

φ150mm chrome cylinder

Thermostat temperature control

RT-600℃

Abrasive heating temperature

RT-300℃ (recommended temperature does not exceed 450℃)

Temperature control accuracy

0.1℃

temperature control

Dual PLC Program Temperature Controller

Equipment Insulation Method

Imported hot plate + stainless steel water-cooled hot plate

Mold cooling method

Water-cooled fast cooling; includes water cooler

machine structure

Integrated structure, fully automatic temperature and pressure control

power supply

Maximum power when heater is 220V/2000W

Machine size

420×550×680mm

machine weight

about 300 kg

the whole frame

One-piece structure patent technology, equipment without sealing connection, reduce oil leakage points

Host size

330×500×680mm

Dimensions

370×580×680mm

obey

CE certification

Warranty

One-year limited warranty, lifetime support

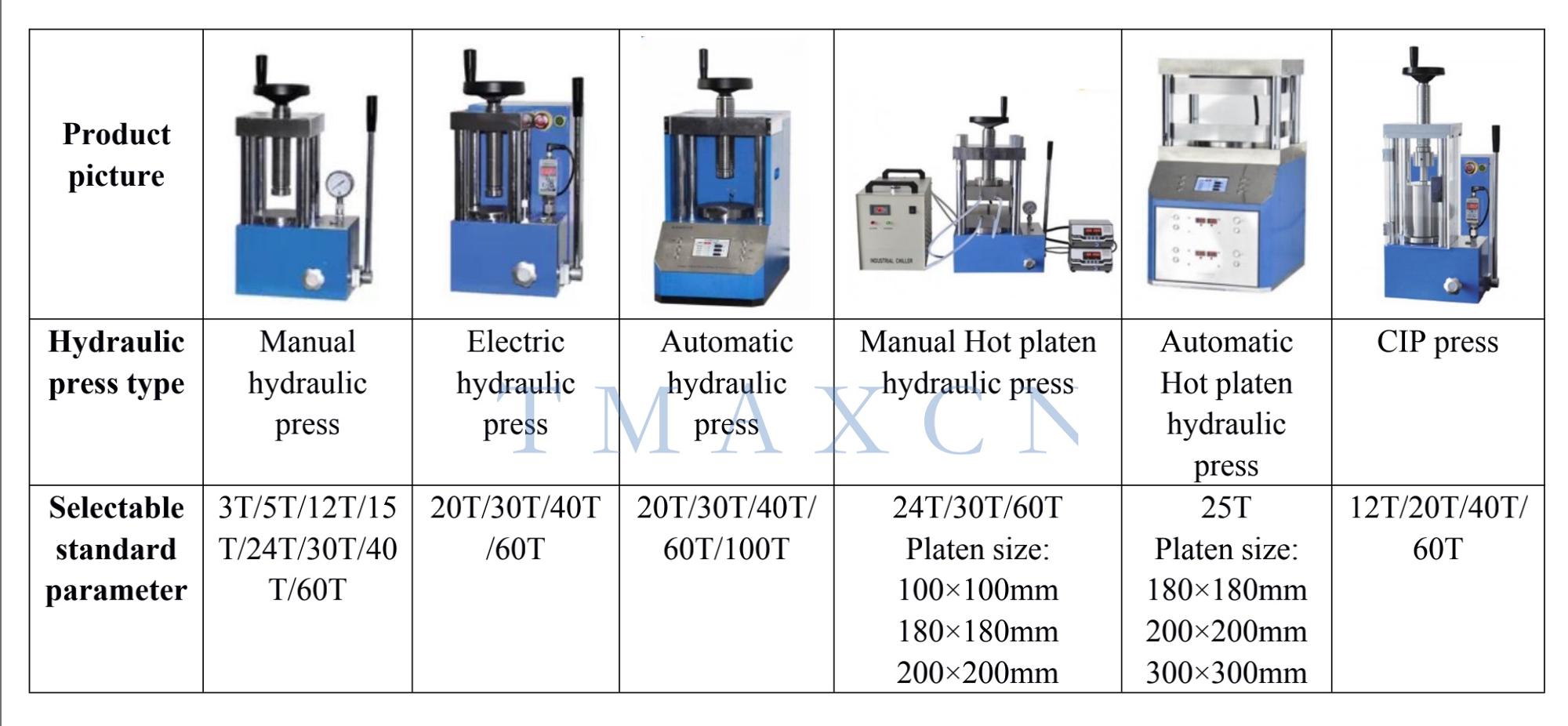

Related Products



What is a heat press?

The hot press is mainly used in some laboratories and units that need to sample or test solid samples such as powder samples, granular samples, plastic films, etc. under high temperature and high pressure. After heating and pressurizing, the chemical stability of the sample particles or powder is improved, and it is not easy to be broken, which is beneficial to cutting and preservation. It is a matching equipment suitable for qualitative analysis for engineering and technical personnel of universities and research institutes to perform spectral detection. This machine is multi-purpose, equipped with suitable pressure die, and can also be used as an ordinary manual powder tableting machine. At the same time, the machine can also be used in other workplaces that require corresponding pressure, as a press to test the pressure resistance of various objects, etc.

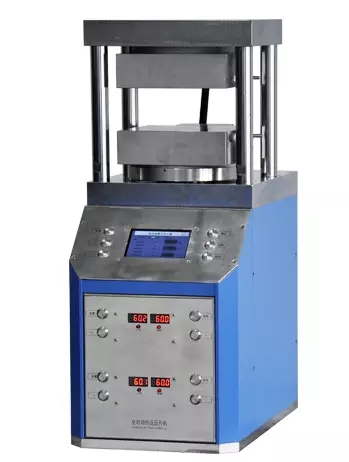

Product Image
