Roll to Roll Calendering Machine for Battery

Product details
Application:Battery Equipments;Dimension(L*W*H):520mm(L) x 280mm(W) x 370mm(H);
Port:Xiamen Port;Brand Name:TMAX;
Rolling Speed:0-40mm/s adjustable;After-sales Service Provided:Engineers available to service machinery overseas;
Roller Dimensions:Opitional;Certification:CE;
Delivery Detail:10-25days;Model Number:TMAX-DG;
Voltage:110V/220V;Warranty:2 Years;
Roller Surface Hardness:62 HRC;Condition:New;
Color:Request;Warning1:Never roll materials with hardness > 50HRC;
Roller Material:Made from hardened tool steel (RC > 62) with Cr electroplated coating;Power(W):110V - 240V AC, 50/60Hz, automatic switch for worldwide use;
Packaging Detail:1 Standard exported package: Internal anticollision protection, external export wooden box packaging. 2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way. 3 Responsible for the damage during the shipping process, will change the damage part for you for free.;Roller diameter tolerance:0.004mm;
Place of Origin:Fujian China;Weight:50KG;
Supply Ability:10000 Set/Sets per Month;Warning2:This rolling machine can be used under Ar gas;
Payment Terms:L/C,D/A,D/P,T/T,Western Union;
Product Description

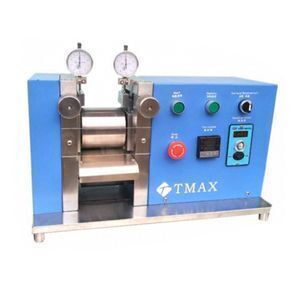

Roll to Roll Calendering Machine for Battery



TMAX-DG is a UL/CSA ready electric rolling press with variable speed 24DC gear motor and UL certified switch power supply, which can be used from 110V- 220VAC under Argon gas glovebox. It has dual rollers and is an ideal rolling press for preparing electrode sheet for Li-Ion batteries research after coating and drying.



SPECIFICATIONS:

Model

DG100L

DG150L

DG200L

DG250L

DG300L

DG330L

GY200W

Roller Dimensions

96mm(Dia.) x 100mm(W)

96mm(Dia.) x 150mm(W)

96mm(Dia.) x 200mm(W)

96mm(Dia.) x 250mm(W)

96mm(Dia.) x 300mm(W)

96mm(Dia.) x 330mm(W)

200mm(Dia.) x 200mm(W)

Working Voltage

110V - 240V AC, 50/60Hz, automatic switch for worldwide use

Structure

Heavy duty steel frame, gears, and handle
Dual micrometer for accurate thickness adjustment in the range 0 - 2 mm Maximum

Roller

1. Roller diameter tolerance: 0.004mm
2. Material: Made from hardened tool steel (RC > 62) with Cr electroplated coating
3. Rolling Speed: 0-40mm/s adjustable

Roller Surface Hardness

62 HRC
Never roll materials with hardness > 50HRC

Compliance

CE Certificate

Warranty

Two Years limited warranty with lifetime support

Warnings

1. Never roll materials with hardness > 50HRC
2. In order to prolong the lifespan of the roller bearings, regular lubrication is recommended.
3. Multi-step thickness calibration: When calibrating the thickness, make increment/decrement of 0.1mm or 20% of sheet thickness each time.
4. Must clean roller surface for each rolling and use acetone to clean and lubricate when not in use to avoid corrosion
5. This rolling machine can be used under Ar gas.





Our Company & Team

Certifications

CERTIFICATE

Strength Proof

All our products are passed the inspection standards included SGS, CE, ASTM with 100% quality.

Cooperative Partner

Packaging & Shipping

PACKAGE:

     1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

     2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

     3 Responsible for the damage during the shipping process, will change the damage part for you for free.



DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.

FAQ
About Product

 1.Which procedure to secure your Quality?

Our company has own research & development and production base, the products have been calibrate by central laboratory professionals before before they leaves the factory, ensure the accuracy of test results and authority.
2.How about your company product after-sales service system?
Product after-sale guarantee period is 12 months,and we can provide lifetime repair guarantee.We have agents in some countries,they can provide door-to-door service.If there is no agent,our professional pre-sales and after-sales department can reply you within 24 hours for any technical problems.
3.Products standards?
Our instruments adopts ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE and other international testing standards.
4.Our country's power supply and plug are different, how do you solve it?
We can according to different countries and the power plug, equipped with transformer and plug that in accordance with your local requirement.
5.Payment methods?
T/T, L/C, D/P and so on
6.Packing method?
Standard export wooden box packaging
7.How about customers evaluation for your products?
Our company has established long-term cooperation with the SGS, Bureau Veritas, TUV and Intertek,our high quality products and first-class after-sales service.Our services get the trust of the customer satisfaction and recognition for themselves.
8.Main export market?
Now our products have been exported to North America, Europe, southeast Asia, South America and other countries.
10.How to ensure the customer standard use the instrument?
We can provide each product related video showing how to install and operate.If you have specific needs, we also can arrange engineer to the customer's company for equipment operation training.

About Shipping

 1.Order processing?

Please allow a processing time of 12-24 hours for your order(s) to ship. Equipment orders will take up to 2 weeks before leaving our warehouse. (Order processing is done during normal weekdays only, no holidays or weekends.)
2. Shipping methods?
1 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
2 Responsible for the damage during the shipping process, will change the damage part for you for free.
3.Order tracking?
Online order can be tracked by login to your account. Please allow 24 hours after order is shipped to see logging details.
If you need a tracking number for your order, please send an email to us with your order/invoice number.
4. Import/export tax, duty, GSM, Customs Clearance, and etc?
All import/export related expenses are sole responsibility of the buyer; charges will vary from country to country. Please consult with your local import experts or transportation carrier for more details.
5.Lost or Stolen packages?
Please report all lost or stolen packages to us at the earliest possible time. An investigation will be open soon after reporting the incident to us, and a final ruling will be issued by the carrier for the claim after 10-15 business days. A replacement package will be sent as soon as the claim is accepted by the responsible carrier.
