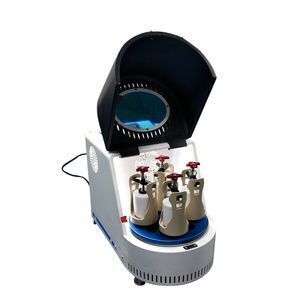

0.4L 2L 4L 6L 8L 20L Lab Small Planetary Vertical Ball Mill Machine With 4 Ball Mill Jars

Supplier: Xiamen Tmax Battery Equipments Limited
Region: Fujian, China
Contact: Mr Aaron Huang
Price: $890.00 /set
Min. Order: 1 set

Click here to contact

Product details

Core Components:	Ball Mill;	Weight:	220 Lb;
Local Service Location:	none;	Capacity(t/h):	Depends;
Packaging Detail:	1 Standard exported package: Internal anticollision protection, external export wooden box packaging. 2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way. 3 Responsible for the damage during the shipping process, will change the damage part for you for free.;	Certification:	CE;
Condition:	New;	Lock Clamps (included ):	Various jars are available as optional from 50ml upto 250ml capacity;
Place of Origin:	Fujian China;	Tank (Jar):	Four stainless Jars are included;
Warranty:	1 Year;	Package Preview:	;
Digital display:	Timer controls major platen's running time from 0 - 9999 hours;	Video outgoing-inspection:	Provided;
Rotary Rate:	Main plate rotation: 50-400 rpm;	Marketing Type:	New Product 2020;
After-sales Service Provided:	Online support;	Type:	Ball Mill;
Warranty of core components:	2 years;	Machinery Test Report:	Provided;
Motor Type:	Other;	Supply Ability:	10000 Set/Sets per Month;
Dimension(LWH):	350x400x400mm;	Port:	Xiamen Port;
Application Notes:	Must place 4 jars or 2 in symmetrical with similar weight;	Brand Name:	TMAX;
Applicable Industries:	Battery;	Showroom Location:	none;
Speed control:	Variable by changing frequency of three phase AC motor;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union;

0.4L 2L 4L 6L 8L 20L Lab Small Planetary Vertical Ball Mill Machine With 4 Ball Mill Jars

I. Explanation and Principle

Planetary Ball Mill is designed for mixing, fine grinding, and preparing small volume high-tech material production, which features with small volume, high efficiency, low noise and Lock clamps. If choosing with optional vacuum jar, it can grind samples under the vacuum condition or filled with inert gas. The product is extensively used in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry, Medicine, and Environmental Protection, etc.

Working Principle:

When the plate rotates, the tank axis makes the planetary rotation in opposite directions and the balls in the tanks grind and mix samples in high-speed movement. The product can smash and blend various products of different materials .

It has 3 types of mill methods:dry mill; wet mill ; vacuum mill.

Two or four grinding jars can work together.

(Note: granularity of grand products is dependent on the material properties, size, and quantity of milling media and processing time. According to customer's feedback, minimum granularity can be as small as 0.1 um).

2. Application Field

The product is extensively applied in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection etc.

It's widely used in research institutes, universities, enterprise laboratories and small batch producing manufacturer.

3. Sample Testing

1.Material: Chinese herbal medicine

2.Grinding tank: zirconia jars

3.Grinding method: dry

4.Grinding Speed: 500rpm (rotation)

5.Selected equipment: XQM-2

6.Grinding tank volume: 500mLx4

7.Grinding time: 1hour

8.Discharge particle size:Soluble in water

1.Application: Abrasives and abrasives;

2.Material: glass powder;

3.Particle size of feeding: 0.5mm;

4.Feeding amount: 2000g;

5.Material properties: brittle;

6.Customer requirements: 35 μ m;

7. Sequential analysis: particle size analysis

8. Selected equipment: planetary ball mill XQM-4;

9.Jar and ball configuration: corundum tank with zirconia ball;

10. Operating parameters: rotation 560 rpm, grinding time of every 20 minutes in positive and reverse rotation;

11. Grinding results: 99% < 35 μ M;

12.Results (suggestion): the XQM-4 planetary mill can be used to grind glass powder

Specifications

Model	Capacity	Specification of milling tank	Qty
XQM-0.2	0.2L	50ml	2/4 set
XQM-0.4	0.4L	50ml-100ml	2/4 set
XQM-1	1L	50ml-250ml	2/4 set
XQM-2	2L	50ml-500ml	2/4 set
XQM-4	4L	250ml-1L	2/4 set
XQM-6	6L	lL-1.5L	2/4 set
XQM-8	8L	1L-2L	2/4 set
XQM-10	10L	1L-2.5L	2/4 set
XQM-12	12L	1L-3L	2/4 set
XQM-20	20L	2L-5L	2/4 set
XQM-40	40L	5L-10L	2/4 set
XQM-60	60L	10L-15L	2/4 set
XQM-100	100L	20L-25L	2/4 set

Model selection guidance

Selection of size of planetary ball mill:

According to the number of materials to be ground, choose the size of the planetary mill.

Calculation formula for size selection of planetary ball mill: a = C /ρ* 3.

Note: A is the size of planetary mill (unit: l), C is the mass of primary grinding material (unit: kg), ρis the bulk density of grinding material (unit: kg /L).

For example, if 2kg of material is ground at one time and the bulk density of material is 1.5kg/L, the size of planetary mill in row a = 2/ 1.5*3 = 4L is selected.

Reference table for selection of planetary ball mill style and special function configuration

Model selection of planetary ball mill	Nature of abrasive material
Vertical planetary mill	Grinding of general materials, no special requirements
Comprehensive planetary mill or horizontal planetary mill	The material is easy to sink and bind
Double planetary mill	Ultra high speed and ultra-fine grinding are required
With air cooling device or liquid nitrogen device	The grinding process is hot and needs to be cooled
Equipped with vacuum ball milling tank	Easy to oxidize, requiring vacuum environment or atmosphere protection
With heating device	High temperature grinding required

Planetary ball mill style and special function configuration options:

Planetary ball mill is divided into vertical, horizontal, comprehensive, double planet four styles, according to the material grinding requirements, choose the corresponding styles, each style of products can be equipped with air cooling or heating equipment according to the grinding material temperature requirements.

Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls,tungsten mill balls, etc.
