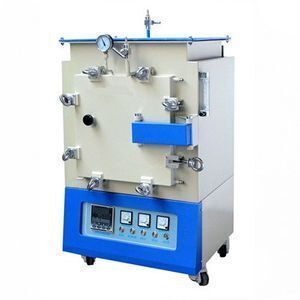

Laboratory High Temperature 1200C 1400C 1700C Box-type Hydrogen H2 Inert Gas Atmosphere Sintering Furnace

Supplier: Xiamen Tmax Battery Equipments Limited
Region: Fujian, China
Contact: Mr Aaron Huang
Price: $980.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply Ability:	10000 Set/Sets per Month;	Showroom Location:	None;
Local Service Location:	None;	Thermocouple type:	S;
Key Selling Points:	High Productivity;	Brand Name:	TMAX;
Maximum temperature:	1400C;	Weight (T):	0.3 T;
After Warranty Service:	Video technical support,Online support,Field maintenance and repair service;	Packaging Detail:	1 Standard exported package: Internal anticollision protection, external export wooden box packaging. 2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way. 3 Responsible for the damage during the shipping process, will change the damage part for you for free.;
Condition:	New;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union;
Temperature controller precision:	+/- 1°C;	Voltage:	220V/380V;
Warranty:	2 years;	Type:	Induction Furnace;
Port:	Xiamen Port;	Applicable Industries:	Manufacturing Plant,Energy & Mining;
After-sales Service Provided:	Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support;	Usage:	Sintering Furnace;
Rated temperature:	1350C;	Power (kW):	3;

Product Description

Laboratory High Temperature 1200C 1400C 1700C Box-type Hydrogen H2 Inert Gas Atmosphere Sintering Furnace

Detailed technical parameters:

Model	TMAX
Power	3KW	5KW	7KW	9KW	13KW		18KW
Chamber size(mm)	160X150X150	200X200X200	300X200X200	300X250X250	400X300X300		500X400X400
Boundary dimension(mm)	550X515X905	590X555X995	590X655X985	640X655X1035	690X715X1125		834X902X1335
Supply voltage	220V			380V
Phase	Single phase			single phase		three phase
Heating element	silicon carbide rod
Control mode	UAV program temperature control instrument 1, 30-stage program temperature control intelligent PID adjustment. 2. With over-temperature protection, the electric furnace heating circuit is automatically cut off when the temperature is over-temperature or broken. (When the electric furnace temperature exceeds 1420 degrees or the thermocouple is blown, the AC relay on the main circuit will be automatically disconnected and the main circuit will be disconnected. The ON light on the panel is off, the OFF light is on, and the limited protection electric furnace). 3, with 485 communication interface (standard when purchasing software) 4, with power-off protection function, that is, when the power is turned on after the power is turned off, the program does not start from the starting temperature, but the furnace temperature rises from the time of power failure. 5, the meter has the function of temperature self-tuning (you need to pay extra for the replacement of imported instruments, optional) FP93 temperature controller European instrument Touch screen instrument (shimashima, Japan)
Furnace material	Type 1600 alumina polycrystalline fibre. Furnace material imported from Japan is available (additional charge is required for the selection of imported furnace material)
Control accuracy	+/- 1 ℃
Trigger	· Phase-shifted trigger
Electric appliance	Zhejiang chint
Silicon controlled	· 106/16E SEMIKRON
Maximum temperature	1400 ℃
Rated temperature	1350 ℃
Heating rate	≤20 ℃/ Min (it can be modified as required)
Recommended rate of temperature rise	≤10 ℃/ Min
Thermocouple Type	S type
Vacuum pump (optional)	VRD-16 2XZ-2
Identification	CE
Peripheral surface temperature	≤45℃
