5V 1mA 10mA 20mA 30mA 50mA 8 Channel Coin Cell Tester Battery Capacity Testing Machine Equipment

Supplier: Xiamen Tmax Battery Equipments Limited
Region: Fujian, China
Contact: Mr Aaron Huang
Price: $800.00 /set
Min. Order: 1 set

Click here to contact

Product details

Noise:	<85dB;	Supply Ability:	10000 Set/Sets per Month;
Model Number:	TMAX-5V50mA;	Per Channel Voltage Range:	0-5V;
Database:	MySQL Database;	Per Channel Output Power:	2W;
Port:	Xiamen Port;	Data Output:	EXCEL,TXT;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union;	Packaging Detail:	1 Standard exported package: Internal anticollision protection, external export wooden box packaging. 2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way. 3 Responsible for the damage during the shipping process, will change the damage part for you for free.;
Place of Origin:	China;	Per Channel Current Range:	0.004A-0.05A;
Accuracy:	± 0.05% of FS;

Product Description

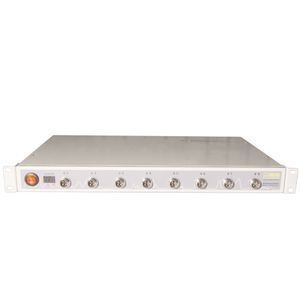

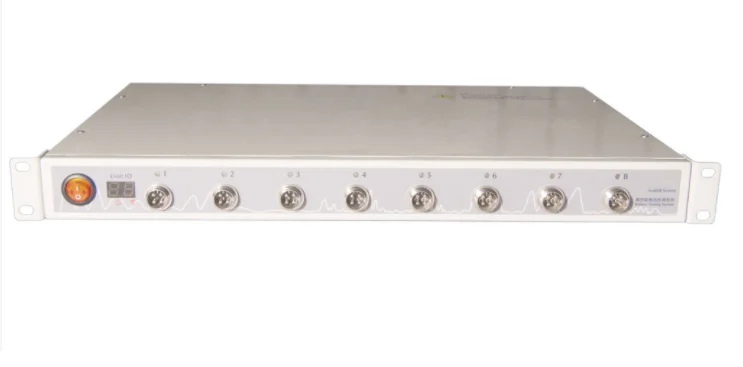

5V 1mA 10mA 20mA 30mA 50mA 8 Channel Coin Cell Tester Battery Capacity Testing Machine Equipment

Features

1. 5V50mA Battery Tester is an eight-channel battery analyzer to analyze, voltage 0-5V. Each channel of the analyzer has independent constant-current and constant-voltage source, which can be programmed and controlled by computer software.

2. This coin cell tester system provides most applications in battery testing fields such as electrode materials research, battery performance test, small scale battery formation, capability grading, battery pack testing, etc.

3. The coin cell tester is suitable for all kinds of coin cell battery such as lithium battery, NI-MH battery, Zn-Mn watch battery and so on.

Specifications

Model		TMAX-5V50mA
Input Power		AC 220V ±10% / 50Hz
resolution		AD:16bit;DA:16bit
Input Resistance		≥1MΩ
Input Power8		80W
Channel Features		Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure
Channel Control Mode		Independent Control
Voltage	Per Channel Voltage Range	0-5V
	Min discharge Voltage	0V
	Accuracy	± 0.05% of FS
	Stability	± 0.05% of FS
Current	Per Channel Current Range	0.004A-0.05A
	Accuracy	± 0.05% of FS
	Stability	± 0.05% of FS
Power	Per Channel Output Power	2W
Power	Stability	± 0.1% of FS
Time	Current Response Time	20ms (0-Full Range)
Time	Step Time Range	≤(365*24 )hour/step, Time Form Support 00:00:00(h,min:s,ms)
Data Recording	Record Condition	Minimum Time Interval: 100ms
		Minimum Voltage Interval: 10mV
		Minimum Current Interval : 2mA
	Record Frequency	10Hz
Charge	Charge Mode	Constant Current Charge,Constant Voltage Charge, Constant Current and Constant Voltage Charge,CPC
Charge	End Conditon	Voltage,Current,Relative Time,Capacity,-ΔV
Discharge	Discharge Mode	CCD,CPD,CRD
Discharge	End Condition	Voltage,Current,Relative Time,Capacity,-ΔV
Pulse	charge	CCC
	Discharge	CCD
	Min Pulse Width	500ms
	Automated Switch	Automated switch from charge to discharge for each pulse
	End Condition	Voltage, Test Time
DCIR	Support DCIR testing
Cycle	Loop Measure Range	1~65535 times
	Max Steps Per Loop	254
	Nested Loop	Nested loop Function,Max Support 3 Layers
Protection	Software Protection	l Power-down Data Protection
		l Off-line Testing Function
		l Setting Protection Condition,Setting Parameter: Low Voltage limit,Upper Voltage limit,Low Current limit, Upper Current limit,Delay Time
	Hardware Protection	Additional Anti-reverse Protection Model

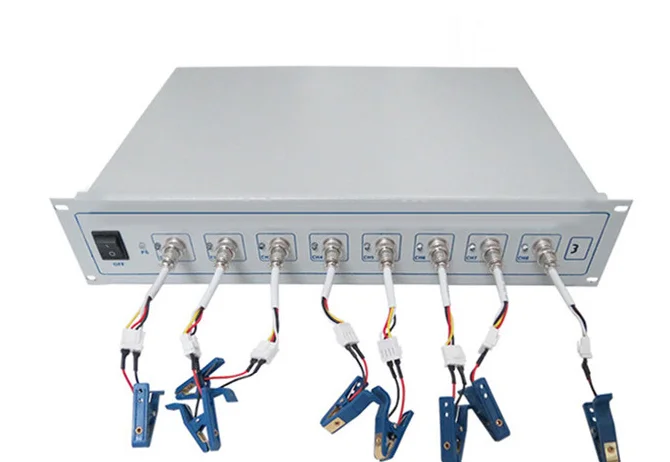

Voltage and Current Testing Sample		4-wire connecting
Noise		<85dB
Database		MySQL Database
A Means of Communication of Upper Machine		TCP/IP Protocol
Data Output		EXCEL,TXT
Communication Interface		Ethernet Port
Per Unit Main Channels No.		8
Dimensions (LWH)		3U,about 500550400(mm)
