Fully Automatic High Speed Square Bottom Paper Bag Making Machine with online handle

Product details
Computerized:Yes;Certification:CE;
Warranty:1 year;Condition:New;
Place of Origin:Shanghai China;Voltage:380;
After-sales Service Provided:Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;Machine Type:Bag Forming Machine;
Bag Type:Shopping Bag;Brand Name:champion;
Single gross weight:21,000 KG;Applicable Industries:Printing Shops;
Material:Paper;Package Type:W/C;
Model Number:CZB1260S-450;Single package size:1645X530X510 cm;
Selling Units:Single item;Package Preview:https://sc01.alicdn.com/kf/HTB1dhv8XaSs3KVjSZPiq6AsiVXaD.jpg_640x640.jpg;
Product Description

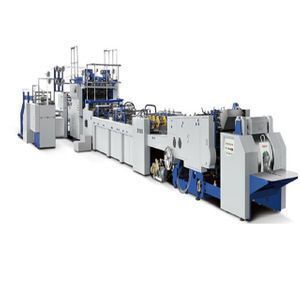

CZB1260S-450 fully automatic square bottom paper bag making machine adopts sheet paper, reel reinforced paper and twist rope paper as material to produce paper bags in one time. The process contains handle making, handle pasting, top folding (or without top folding), tube forming, gusset folding, bottom pasting, compaction output or reinforced paper pasting, top folding, tube forming, gusset folding, eyelet punching, bottom pasting and compaction output. Three bag types are all available on this machine. Based on the traditional machine mechanical handle/patch cutting unit, this machine updated to servo cutting system which has a much more compact structure. Shorter setup time, safer working condition, bigger and convenient operation space are all its advantages.

Features:

1) handle making, Top folding,automatic creasing,eyelet punching.

2) Feeder: enhanced prestack paper feeder to realize non stopping paper feeding

3)The handle making of 1260S is controlled by servo motor.

4) Standard configuration bag compaction table,improve work efficiency.

5)The design of 1260S is more reasonable than others. It has more space for the engineer to maintain and adjust/test the machine

6)  Three types of paper bag can be done on this machine.



Suitable paper

         A    B    C    D   E



Max.Size:   1200   600    170   450   490

Min.Size:    620    320    70    220  235

Suitable Paper: Kraft paper, art paper





This machine can
produce 3 kinds of
different paper bags







Max.sheet(LXW)
Min.sheet(LXW)
Sheet Weight
Bag Width
Bottom Width
Bag  length
Top turn in width
Handle patch length
Handle patch width
Handle patch weight
Handle patch roll diameter
Handle patch roll width
Paper rope diameter
Handle rope height
Speed
Total Power
Total Weight
Machine Size
Glue Type

1200X600
620X320
120g-190g
220-450mm
70-170mm
250-490mm
40-60mm
188.5mm
30-50mm
140g-200g
φ 1000mm
60-100mm
4-6mm
170-190mm
40-70bags/min
25kw
22T
16.45x5.3x3.1m
Water soluble cold glue
(hot-melt glue)

1200X600
620X320
120g-190g
220-450mm
70-170mm
250-490mm
40-60mm
188.5mm
30-50mm
140g-200g
φ 1000mm
60-100mm
----
----
40-70bags/min
25kw
22T
16.45x5.3x3.1m
Water soluble cold glue
(hot-melt glue)

1200X600
620X320
120g-190g
220-450mm
70-170mm
250-490mm
----
188.5mm
30-50mm
140g-200g
φ 1000mm
60-100mm
4-6mm
170-190mm
40-70bags/min
25kw
22T
16.45x5.3x3.1m
Water soluble cold glue
(hot-melt glue)
