Condition: | New; | Brand Name: | CANAMX; |
After-sales Service Provided: | Engineers available to service machinery overseas; | Packaging Detail: | standard; |
Port: | Any ports in China; | Place of Origin: | china; |
Supply Ability: | 10 Unit/Units per Month; | Applicable Industries: | Construction works ,Energy & Mining; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |

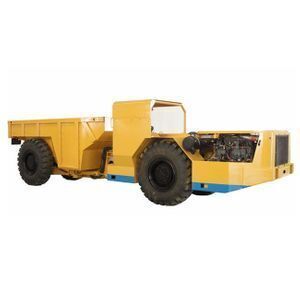

Canmax underground mining truck UK-12 for sale

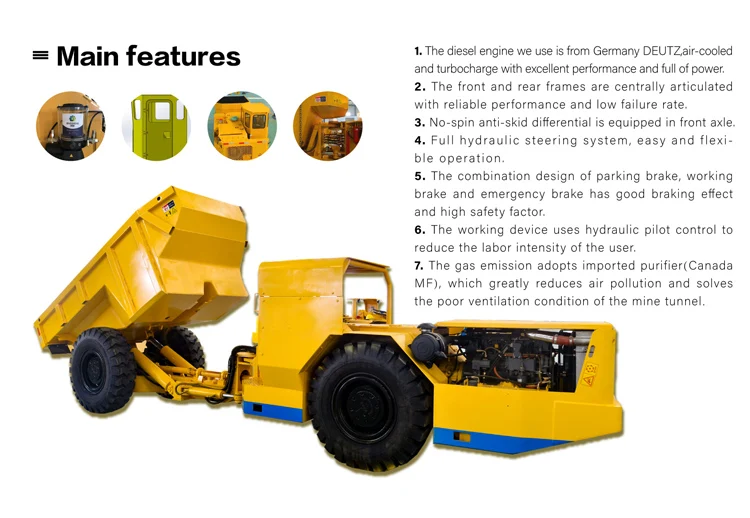

Features
1,Imported Germany DEUTZ engine with excellent performance and powerful.
2,Combined design of parking brake, working brake and driving brake, good braking effect and high safety factor.
3,The front and rear frames are articulated with flexible steering and reliable performance.
4,Working devices are controlled by hydraulic pilot, which reduces the labor intensity of the user.
5,Full hydraulic power steering system, easy operation.
6,Dry type platinum emission purifier with silencer, reduce underground air and noise pollution.
7,Rigidly planetary axles.
8,All wet brakes, spring applied, hydraulic release.
9,Dry type air filter from Germany MANN.
Parameters
1,Power:115kw(150hp)
2,Volume:6m3
3,Payload: 12T
4,Weight(unladen):11T
5,Dimension:L7920mm,W1920mm,H2180mm
Engine | |
Manufacturer | DEUTZ |
Model | BF4M1013EC |
Rated power | 115KW/2300rpm |
Maximum torque | 520Nm/1400rpm |
Numbers of cylinders | 4 |
Bore/Stroke | 108mm/130mm |
Displacement | 4.764L |
Inlet form | Turbocharged |
Emission standard | Europe II/CNII |
Tank volume | 180L |
Diesel Air Filter | |
Manufacturer | MANN/DEUTZ |
Type | Dry |
Emmission Purifier | |
Manufacturer | Canada ESC |
Type | catalytic purifier with silencer |
Torque converter | |
Manufacturer | US DANA |
Model | C323.7 |
Type | Single stage three element,with Hydraulic pump driving device |
Gearbox | |
Manufacturer | US DANA |
Model | R32421 |
Number of gears | Four gears for both forward and backward |
Axle | |
Manufacturer | CN XUZHOU |
Model | K12F/R |
Type | Rigid planetary drive Axle |
Front axle(Unladen) | 5850kgs |
Rear axle(Unladen) | 5150kgs |
Front axle(laden) | 11700kgs |
Rear axle(laden) | 11300kgs |
Differential | NO-SPIN |
Wheel & Tyres | |
Wheel Rim | Standard 10.0 |
Tyre | LINGLONG |
14.00-24 | |
Nylon | |
24 Plyrating | |
Air pressure 575Kpa | |
Hydraulic Parts | |
Working&Steering Pump | US PARKER/P31B205HIOH17-25DAB07-1 |
Steering wheel | US PARKER/ HGB32236 |
Braking Pump | Italy Salami |
Brake pedal valve | US Mico |
Accelerator pedal valve | US Mico |
Liquid filled valve | Rexroth |
Solenoid valve | CN Huade |
Lifting cylinder | 150/85-769 |
Steering cylinder | 100/50-418 |
Braking system | |
Comprise | Combination design of parking brake, working brake and emergency brake |
Description | Fully enclosed spring applied, hydraulic release wet multidisc brake |
Frame | |
Connection form | Articulated |
Material | Manganese steel Q345B |
Electrical system | |
Working voltage | 24V DC |
Battery | 12V*2 Series connection |
Alternator | 55A,28V |
Starting motor | 4KW/24V |
Headlight | LED 2 *40W |
Rear light | LED 1*18W |
We supervise the process from the factory to the port designated by the customer to ensure that the customer's products arrive at the destination accurately and safely.
Our factories have passed the certification of relevant organizations.
For example, ISO, CNAS, IAF and so on.
Products have also passed CE, GHOST certification and so on.
Every year, we regularly attend the Canton Fair, the Philippines, Indonesia, Russia and other construction machinery and building machinery exhibitions.
We have received more than 1000 clients and training engineers from more than 100 countries around the world.
we are famous building machinery manufacturer, professional construction machinery exporter and one stop solution supplier in China, our team have more than 15 years experience in this field already.
(1)Warranty:Every product issued shall enjoy a one-year/2000 working hour warranty period, during which we will repair or replace the defective parts free of charge if material or process defects occur and spare parts are in normal working condition.
(2)Spare parts:CANMAX is dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function.with our global distributor network,you are guaranteed with fast deliveries and services, wherever you are,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
(3)Installation & Maintenance:CANMAX is able to provide with the overall installation of complicated machinery,allowing you to start the normal operation of construction machinery solutions.After installation,we will make inspection of the whole machine,operate equipment,and provide you with testing data reports of installation and operation.
(4)Training:CANMAX offer perfect facilities and comfortable environment and can provide training services to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other training, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.
(5)Technical Advice: CANMAX can also help customers to coordinate with trained service personnel and provide you with detailed and extensive knowledge. Through our technical advice, your machine life can be significantly extended and sustained high capacity.
We have already exported our products to more than 80 countries and regions, including: Africa, the Middle East, South America, Central Asia, Russia, Iran, Mexico, Australia, New Zealand, Holland, British, Mongolia and so on.
Which countries do you export to?
Asia: India, Philippines, Thailand, Burma, Vietnam, Bangladesh, Kazakhstan, Turkmenistan, etc. Middle East: Saudi Arabia, Iran, UAE, Jordan, Oman, Syria, Pakistan, Qatar, etc. Europe: Russia, Ukraine, Belarus, Bulgaria, etc. Africa: South Africa, Kenya, Congo, Ethiopia, Nigeria, Ghana, Algeria, Senegal, Tunisia, etc. South America: Brazil, Peru, Chile, Cuba, Venezuela, Mexico, etc. Oceania: Papua New Guinea, Australia, etc.
What is the proportion of your products exported?
75% of our products are exported to all over the world.
What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term customers. TT, L/C, D/P, depending on the cooperation time, country and contract value.
What kind of logistic service do you supply?
A. Transportation: railway transportation, international through transport, including (international railway through transportation, Sea-rail intermodal through transportation, sea-land multimodal transportation. Means of transport : Container, LCL, FRC, ro-ro, bulk cargo, train carriage, truck, air plane.
B. Term: FOB,CIF, DAP, to door service, etc.
What spare parts can you supply?
All kinds of spare parts of XCMG, SHANTUI, ZOOMLION, SINOTRUCK, SHACMAN, LIUGONG, SANY, SDLG, LONKING, XGMA, CUMMINS ENGINE, ZF GEAR BOX, etc.
Send Message or Chat Now for Best price!!!
CANMAX, as a professional one-stop machinery equipment supplier, we always keep the service philosophy " Running On Faith, Keep Promise, Focus On Customer Concerns, Walk To Success With Customer ", devote ourselves to what customer needs, and provide products and service with high performance and good price.
Please let us know the main use, brand, power and other requirements of the purchased products.
We will recommend the related products to you.
↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓
