mini cnc 3040 router/4 axis cnc wood engraving machine

Supplier: Shanghai Sihao Machinery Equipment Co., Ltd.
Region: Shanghai, China
Contact: Ms Sihao Sihao
Price: $500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;	Name:	4Axis Carving cutting tool;
Applicable Industries:	engraving machine;	Table size:	320mm*530mm;
Certification:	CE ISO9001;	X,Y,Z Working Area:	85(Y)mm*60(Z)mm;
Key Selling Points:	Multifunctional;	Carving deepth:	55mm;
Condition:	New;	keyword:	mini cnc router;
Warranty:	2 years;	Driving unit:	1204 trapezoidal screw;
Brand Name:	sihao mini cnc router;	Place of Origin:	Shanghai China;
Weight (KG):	25;	Port:	Shanghai;
Packaging Detail:	one wood case for one set;	Supply Ability:	3000 Set/Sets per Month mini cnc router;
Voltage:	220V/110V;	Dimension(LWH):	524041cm;
After-sales Service Provided:	Online support;	CNC or Not:	CNC;
Repeat accuracy:	0.05mm;	Carving speed:	300-2500mm/min;
Maximum speed:	0-4000mm/min;	Shape dimension:	610x480*400mm;

Product Description

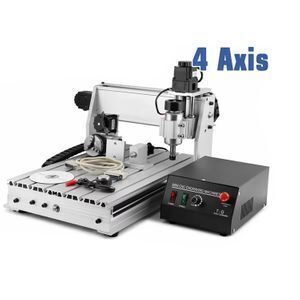

mini cnc 3040 router/4 axis cnc wood engraving machine

Introduction

USB CNC3040 is suitable for Industry,Technology Research,Advertising Design,Arts Creation,Teaching,Student Project and Hobby Purposes.USB 3040 CNC engraver is a desktop CNC machine and designed for processing Industrial or Hobby Prototype Building, Building Model Making,PCB,Advertising Signs,Artwork,Crafts,Aircraft Models,RC Model parts,etc.So,you can do engraving work at office or home.

Exquisite USB 3040 is a miniature version of mobile longmen structure of carving machine,put on you computer is like putting a printer or scanner that coordination,and can completely as a compute peripherals tools,anywhere,anytime,help you to design intent fast real appear.Nonmetal materials on the milling,and it can also be used to carving simple PCB/CNC.

Application

This USB 3040 engraver is a user-friendly desktop engraving machine for those with limited space and /or a limited budget.The Computerized CNC Engraving and Cutting Machine is suitable for various materials, such as WOOD, PMMA or other plastic,MDF board,native wood,PVC,Acrylic, wood,composite board plywood,It can be used widely to process or make advertising signs,PCB,nameplates,badges,seals,bronzing plate,aluminium alloy,acryplates,ABS resin double color plate,PVC foaming board,indentation plates,signs,construction models,instrument panels,wooden products,etc.

If you want to make sure this laser engraver will engrave on a certain item or cut a certain item, you are welcome to send me a sample of that item and I will test it for you.

Features

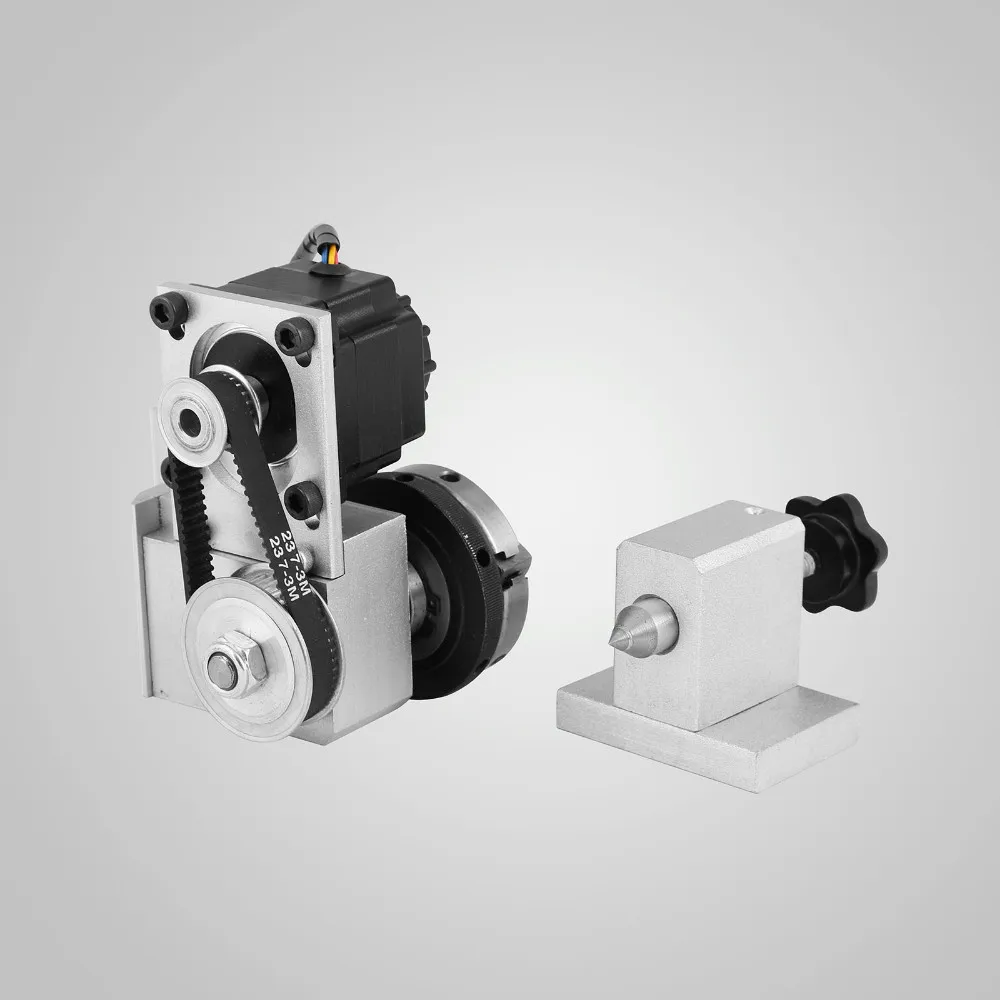

With four axis(rotary axis) and tailstock
With USB function
Simple operation and installation
More steady and strong equiped with aluminum alloy frame materials
Can be controlled only by desktop computer,not suitable for laptop
Mach 3 software is simple and intelligent
Can control the engraving more precise
Emergency stop button enhance security
Large 3D engraving in soft wood,MDF board,native wood,PVC,Acrylic we suggest use one or two spiral flute ball bits.
Can engraving much more materials by spiral flute bits,such as metal,steel,MDF board,solid wood,composite board plywood,stone.
Spindle motor knob is useful for small positioning adjustment ,with steady and strong support structure.
Cover plates reducing pollution for the screws and shafts.
The reinforced and thickened machine body make transportation absolutely to be safer and longer life time.
The chrome shafts is not easy to deform,suitable for long time use.
Flexible coupling can be used for high torque transmission.
High Precision Stepping motor makes engraving more precise .
2 years Free warranty

Technical

3040T tetraxial engraving machine part parameters:

Effective working travel:275(X)mm*385(Y)mm*60(Z)mm
Shape dimension:610x480*400mm
Max.workpiece dimension:70mm
Work table dimension:320mm*530mm
Carving deepth: 55mm
Frame materials:aluminum alloy 6063 and 6061
Leadscrew:1204 double thread Trapezoidal screws
Driving units X axis:1204 trapezoidal screws
Driving units Y axis:1204 trapezoidal screws
Driving units Z axis:1204 trapezoidal screws
Sliding units X axis:Dia.16mm chrome plate shafts
Sliding units Y axis:Dia.16mm chrome plate shafts
Sliding units Z axis:Dia.12mm chrome plate shafts
Stepping motor type:57 two-phase 1.8A
Spindle motor:200w dc motor 500~8000PRM/Min
Principal axis collet:ER11 /3.175 mm
Repeat accuracy:0.05mm
Spindle precision:radial beat acuities 0.03 mm
Control unit:triaxial one-piece drive + ring variable power + PWM speed
Carving Instructions:G-code/.tab /.nc / .ncc/.txt
Communication interface:through parallel or USB connection with computer
Software environment:all
Maximum speed:0-4000mm/min
Carving speed:300-2500mm/min (different materials differ)
Machine weight:28KG

Control box parameters:

Operating Voltage:AC110V-AC220V(we also stock USA.UK.EU.AU.plugs and 110V-240V power version for the country all over the world.)
Control unit:2.5A stepping motor driver plus adjustable spindle speed controller
Computer connection:on board parallel port,USB
Command code:G code
Acceptable software:only CNCUSB
Protection:Emergency stop button

Package Content

1 X Engraving machine
1 X Control box
1 X Parallel cable
1 X Power cable(we also stock 110V or 220V power version and USA.UK.EU.AU.plugs for the country all over the world.)
1 X Tool box and tools
3 X Axis motors
1 X English manual
