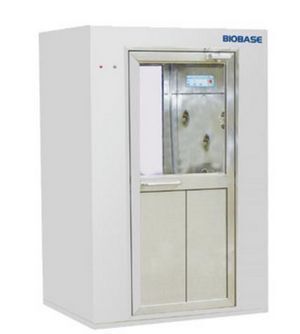

2019 BIOBASE Air Shower with photoelectric sensor,automatic blowing, HEPA Filter.

Supplier: Biobase Meihua Trading Co., Ltd.
Region: Shandong, China
Contact: Mr Jeffrey Xue
Price: $800.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Shower Area Size(WDH):	8008901930mm;	Power(W):	20W;
Place of Origin:	Shandong China;	Spraying Wind Speed:	25m/s;
Port:	Qingdao;	Consumption:	1000W;
Fluorescent Lamp:	20W*1;	HEPA Filter:	99.999% efficiency at 0.3 um;
Packaging Detail:	Wooden package;	Air Shower Time:	0~99s (adjustable);
Warranty:	1 year;	Weight:	300kg;
No.of SS Nozzles:	6;	Voltage:	220, 110v;
Brand Name:	BIOBASE;	External Size(WDH):	130010002050mm;
Package Size(WDH)mm:	140011502200;	After-sales Service Provided:	Video technical support;
Payment Terms:	L/C,T/T;	Chassis:	Stainless Steel;
Condition:	New;	Supply Ability:	100 Unit/Units per Month;
Certification:	CE ISO;	Dimension(LWH):	130010002050mm;

Air Shower

Air shower is a necessary passage for person entering clean room in order to minimized the amount of particulate contaminant, achieve workplace strict clean purification standards. Personnel move through the air shower while

particulate contaminants are blew off by the clean high speed air. So the dust cannot be brought into clean

area.

Features
1.Photoelectric sensor,automatic blowing.
2.Designed with circulation wind to easure the cleanness of shower area under non-shower status.
3.Double doors with electric interlock.
4.LED display with adjustable blowing time (0~99s).
5.HEPA Filter,Class 100 cleanness.

Models:

Model	AS-1P1S	AS-1P2S	AS-2P2S
External Size(WDH)	130010002050mm	150010002050mm	150020002050mm
Shower Area Size(WDH)	8008901930mm	8008901930mm	80018901930mm
HEPA Filter	99.999% efficiency at 0.3 um
Spraying Wind Speed	25m/s
Air Shower Time	0~99s (adjustable)
No.of SS Nozzles	6	12	24
Fluorescent Lamp	20W*1	20W*1	20W*2
Consumption	1000W	1500W	2000W
Cabinet Material (Optional)	1. Full cold-rolled steel with powder coating. 2. Internal stainless stell,external with cold-rolled steel 3. Full Stainless Steel.
Door Material (Optional)	1. Cold-rolled steel with powder coating. 2. Stainless Steel
Chassis	Stainless Steel
Power Supply	AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Gross Weight	300kg	400kg	700kg
Package Size(WDH)mm	140011502200	160011502200	160016502200
