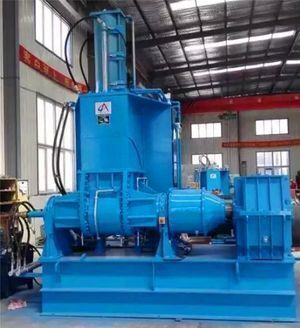

banbury rubber mixer rubber kneader machine (5L 35L 55L 75L 110L)

Supplier: Qingdao Chaoguangyue Industry Co., Ltd.
Region: Shandong, China
Contact: Mr Daguang Qiu
Price: $2000.00 /set
Min. Order: 1 set

Click here to contact

Product details

chamber:	hard chromed;	function:	internal rubber mixing;
Supply Ability:	30 Set/Sets per Month;	Dimension(LWH):	220018002100mm;
Applicable Industries:	Manufacturing Plant;	Model Number:	XSN-75;
Certification:	CE SGS ISO9001;	Key Selling Points:	High Productivity;
Voltage:	customer demand;	Power(W):	55kw;
Port:	Qingdao;	Year:	2019;

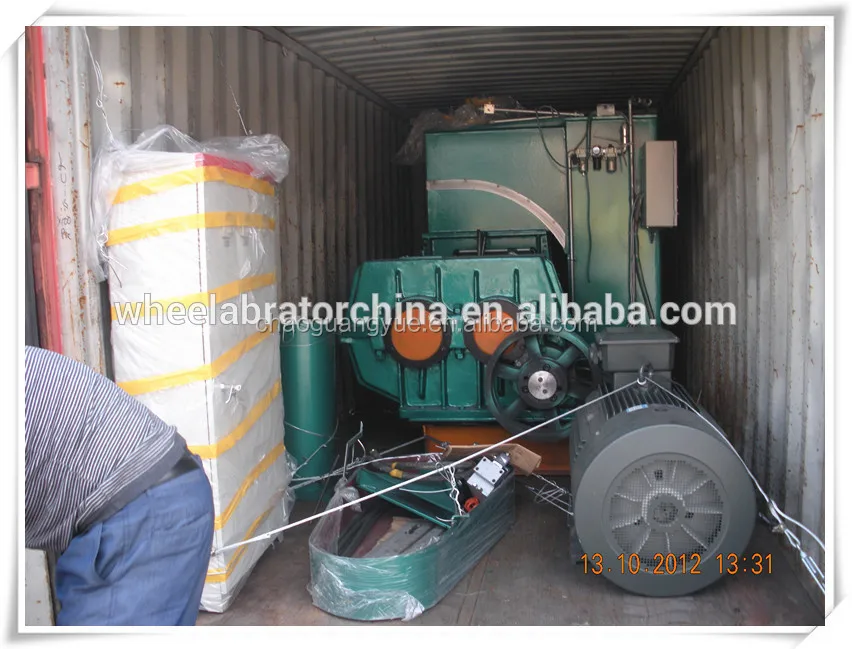

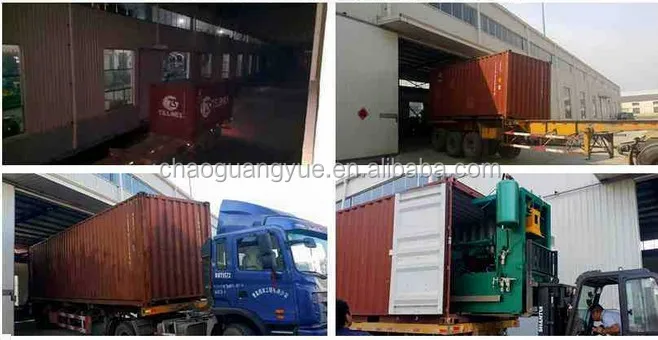

mix material:	NR, SBR, CR, EPDM;	Packaging Detail:	within 20 GT in bulk;
Brand Name:	CGY;	Advantage:	good after service, save energy;
open type:	hydraulic tilting;	Weight:	6000kgs;
Place of Origin:	Shandong China;	control:	PLC;
After-sales Service Provided:	Field maintenance and repair service,Field installation, commissioning and training;	Condition:	new;
Warranty:	2 years;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Color:	Green Blue;	Mixing Time:	6-12min;

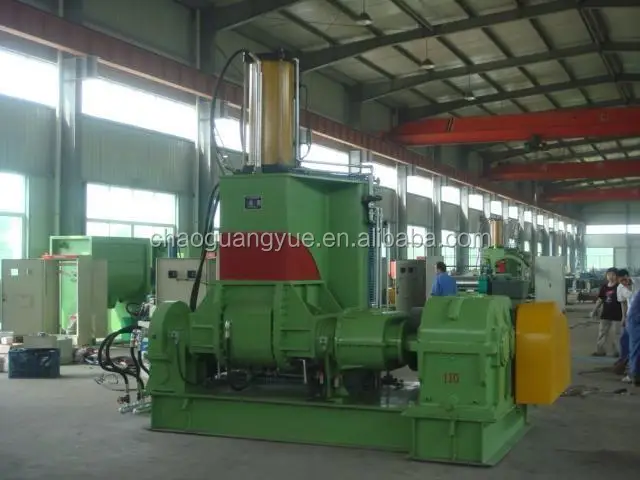

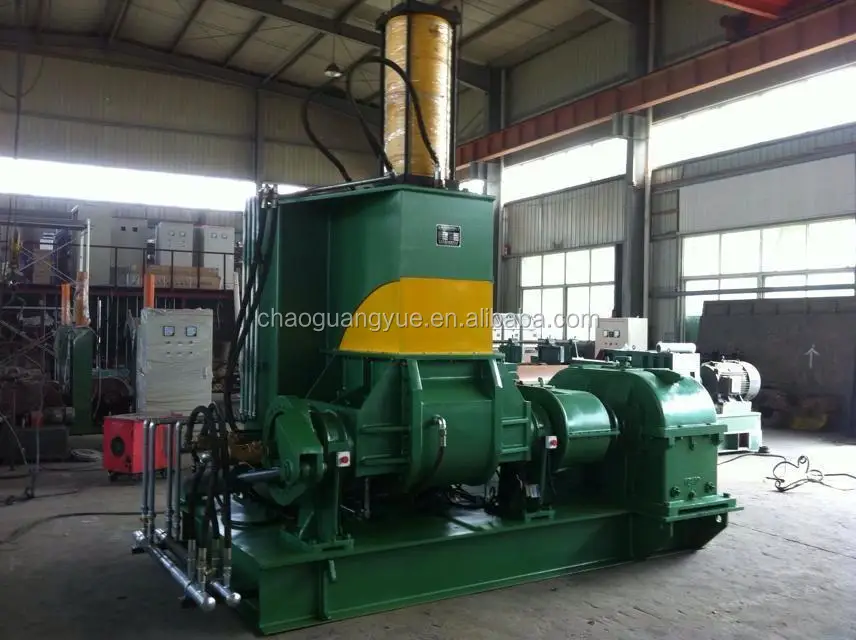

banbury rubber mixer rubber kneader machine (5L 35L 55L 75L 110L)

1-Name: Rubber banbury mixer Internal rubber mixer, Rubbe kneader.

2-Function:

Dispersion kneader, equipped with a pair of rotors which perform relative rotation with the specific shape, is a kind of machine for intermittently plasticating and mixing the polymer materials under with adjustable temperature and pressure.

3-Range for materials processing:

Rubber Compounds and End Products
Natural Rubber, Synthetic Rubber, Mastication of NR, SBR, CR, EPDM, Fluorine Rubber, Silicone Rubber, ECT.

4-Version: XSN-75

5-Description:

1)Maximum Dispersion & High Production
Double blades, proper clearance & high cooling effect gives excellent dispersion. Its production is 4 to 5 times more than an ordinary mixing mill thus saving on labor and electricity.
2)Easy Cleaning and Colour Change
Mixing chamber can be tilted which enables easy cleaning, because of this, different coloured compounds can be made nice.
3)Short Mixing Time
Mixing time ranging from 6 to 12 minutes depending on compound's specific gravity.

6-Main parameters:

			X(S)N-3 X(S)N-3×32	X(S)N- 10×32	X(S)N- 20×32	X(S)N- 35×30	X(S)N- 55×30	X(S)N- 75×30	X(S)N- 110×30	X(S)N- 150×30	X(S)N- 200×30	X(S)N- 300×30
Total Volume of Mixing Chamber (L)			8	25	45	75	125	180	250	325	440	700
Working Volume of Mixing Chamber (L)			3	10	20	35	55	75	110	150	200	300
Driving Motor Power (KW)			5.5	15	30	55	75	110	185	220	280	280/400
Tilting Motor Power (KW)			0.55	1.1	1.5	2.2	2.2	4	4	5.5	7.5	7.5
Tilting Angle			135	140	140	140	140	140	140	140	140	140
Rotational Speed Of Rotor (Front/Rear) (r/min)			6~60 32/24.5	32/23.5	32/25	32/24.5	30/24.5	30/24.5	30/24.5	30/24.5	30/24.5	30/24.5
Pressure of Compressed Air (MPa)			0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8
Capacity of Compressed Air (m3/min)			≥0.3	≥0.5	≥0.7	≥0.9	≥1.0	≥1.0	≥1.5	≥2.0	≥2.0	≥2.0
Pressure of Cooling Water (Rubber Mixing) (MPa)			0.2~0.4	0.2~0.4	0.2~0.4	0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4
Pressure of Heating Steam( Plastics Mixing) (MPa)			0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8
Overall Dimention (mm)	L		1,660	2,850	2,630	3,200	3,280	3,330	3,930	4,200	5,070
	W		960	1,300	1,520	1,900	1,930	2,620	3,000	3,300	3,500
	H		1,750	2,2280	2,550	2,950	3,070	3,340	3,660	3,900	4,600
Weight (kg)		2,000		3,300	4,500	6,500	7,800	10,500	14,500	19,500	22,500	27,500

7-Features

1,high efficiency. Rubber or plastic material will plasticized or mixed with high productivity in a closed ,pressurized and controlled temperature environment.

2,energy saving. the capacity is 6~8 times compared with open mill under the same condition of power level.

3,eco-friendly.the special dust sealing unit provide reliable sealing

4,durable in use. The banbury rotor adopt 42Crmo material and plated hard chorme made it wear-resisting greatly so does the speed reduce and gearbox;

5,excellent cooling/heating effect .all the parts connect with material adopt jacket structure and can adapt different requirements for the rubber or plastic mixing process.

6,high mixing quality.optimization of the parameters such as the helical angle of rotor wings and the wing overlap length brings about homogenous distribution of the stock.

7,PLC control.
