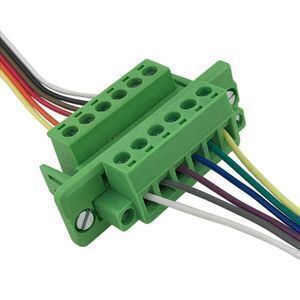

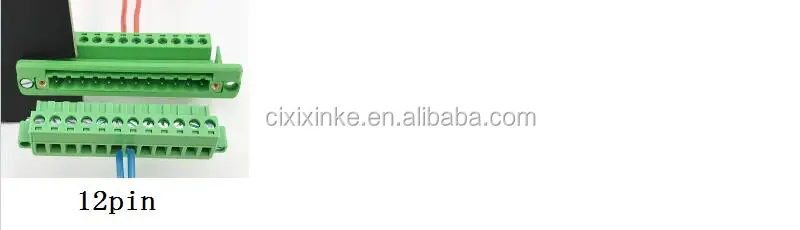

XINKE through wall or panel terminal block plug-in type with flange plug 2-24P XK2EDGWC-5.08MM pitch 2EDGRKM 2EDGKM

Product details
Poles:2-24p;Model Number:XK2EDGRKM+KM+WC-5.08;
corlor:green;Brand Name:XINKE;
Single gross weight:0.003 KG;Material of terminal:PA66;
Wire range:2.5mm2;Contact material:copper;
Number of Contacts:2-24;Type:Plug-in;
Single package size:2X3X1.5 cm;Selling Units:Single item;
Temperature:-40℃~+105℃;Package Type:4 plastic bags in one box,male and female Separate packaging;
Conductor Size:12-24 AWG;Place of Origin:CN;ZHE;
Rated voltage:300V;Rated Current:10A;
Pitch:5.08mm;Package Preview:https://sc01.alicdn.com/kf/HLB1LkmaL9zqK1RjSZPcq6zTepXax.jpg_640x640.jpg,https://sc02.alicdn.com/kf/HLB1fUmMLW6qK1RjSZFmq6x0PFXaR.jpg_640x640.jpg;
Product Description

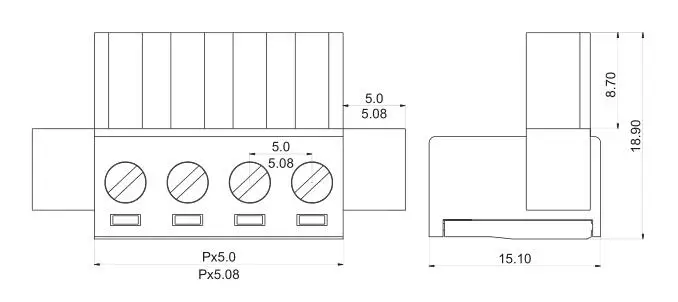

Pitch:5.08mm;Poles:2P-24P;Rated Voltage/Current:300V/10A

male:

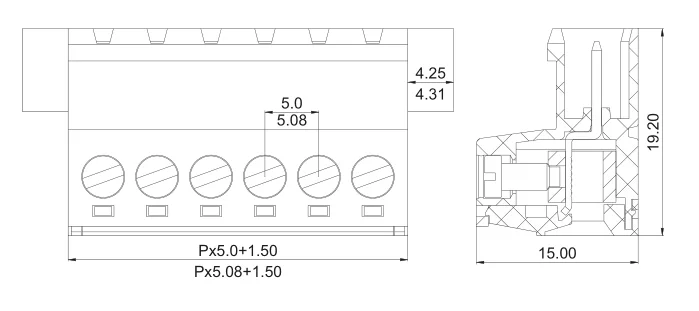

female:

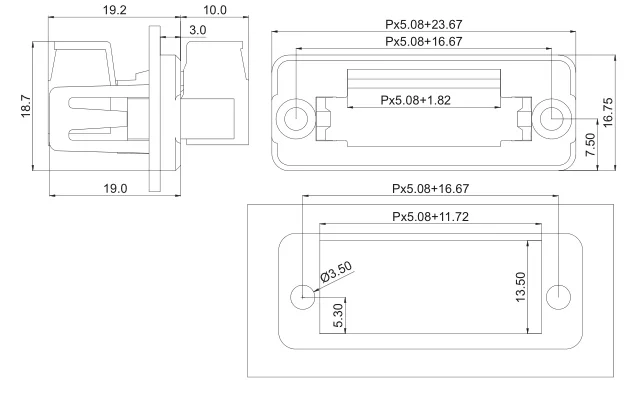

fixed bracket:



Plastic material:PA66
Terminal material:copper
Screw:M2.5 Steel
Rated voltage:300V
Rated current:10A
Wire range:24-12 AWG   2.5mm2
Withstanding voltage:AC2500V/1Min
Temp.:-40℃~+105℃
Strip length:7-8mm
Pitch:5.08mm





Packaging & Shipping

The package of  XINKE has the  the unity of inner and outer packing.

Also special cartons can be made for the customer if have any requirements.



Company Information

see more about us:  www.cxxkdz.com



Product Overviews



FAQ

 How to order our products on alibaba:

The price on alibaba is only for one pole,and our product is at least 2 poles.First pls confirm how many poles do you need for one unit,then Multiply by your quantity,is the total poles you need to submit to me,if the product  have flange,then the price of two flange ears equals to one pole,you also should add the flange price, after i change the correct freight cost,i will ask you to pay for the order,then i will send you the product!



If any question,pls contact me,i will glad to help you!

My WECHAT is:  xu986251562,pls add me ,we can talk easily!

Crystal



Our Services

1.About the samples:

 We are honored to offer samples to you when the prices are confirmed. Samples are free, however, the freight cost should be collected by customer. Usually 5 stes is inproved,if sample quantity is more than our regular one, we will extra collect sample cost.

2.About the payment:

The payment terms can be flexiable depend on the quantity and products. We

firstly prefer Trade Assurance on alibaba,Another, new customer we prefer the 100% T/T before shipping or 30%T/T advance before producing large quantity.

3.About the delivery time:
For regular products, we keep them in stock. In order to supply products to customer in time, our factory set a warehouse with 1700 square meters. We can meet the quickest shipment according to customers’ requirement.
