Type: | Plug-in; | Wire range: | 1.5mm; |
Color: | GREEN; | Model Number: | XK15EDGK-3.5; |
Selling Units: | Single item; | Number of Contacts: | 2 - 24; |
Rated Current: | 8A; | Brand Name: | XINKE; |
Single gross weight: | 0.002 KG; | Rated voltage: | 300V; |
Conductor Size: | 16 - 28 AWG; | Single package size: | 0.4X1.2X1.6 cm; |
temperature: | -40℃~+105℃; | Place of Origin: | Zhejiang China; |
Packaging Detail: | 4 plastic bags in a box; | Poles: | 2p-24p; |
Pitch: | 3.5MM; | Contact material: | copper; |
Material of terminal: | PA66; |
Pitch:3.5mm;Poles:2P-24P;Rated Voltage/Current:300V/8A
Plastic material: | PA66 |
Terminal material: | copper |
Screw: | Steel |
Rated voltage: | 300V |
Rated current: | 8A |
Wire range: | 28-16AWG 1.5mm2 |
Withstanding voltage: | AC2000V/1Min |
Temp.: | -40℃~+105℃ |
Strip length: | 7-8mm |

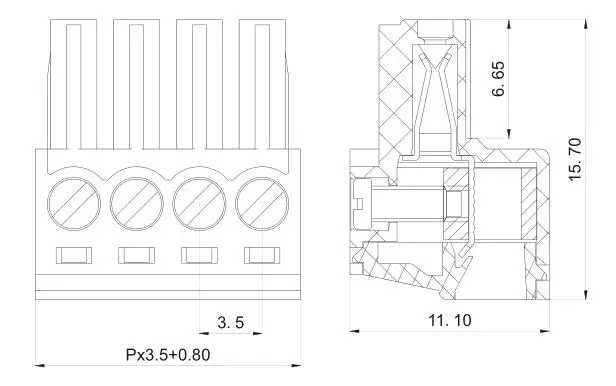

Pitch: | 3.5mm |
The package of XINKE has the the unity of inner and outer packing.
Also special cartons can be made for the customer if have any requirements.
see more about us: www.cxxkdz.com
How to order our products on alibaba:
The price on alibaba is only for one pole contact,and our product is at least 2 poles.First pls confirm how many poles do you need for one unit,then Multiply by your quantity,is the total poles you need to submit to me!
For large quantity,we have discount!
If any question,pls contact me,i will glad to help you!
My WECHAT is: xu986251562,pls add me ,we can talk easily!
Crystal
1.About the samples:
We are honored to offer samples to you when the prices are confirmed. Samples are free, however, the freight cost should be collected by customer. If sample quantity is more than our regular one, we will extra collect sample cost.
2.About the payment:
The payment terms can be flexiable depend on the quantity and products. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
3.About the delivery time:
For regular products, we keep them in stock. In order to supply products to customer in time, our factory set a warehouse with 1700 square meters. We can meet the quickest shipment according to customers’ requirement.
