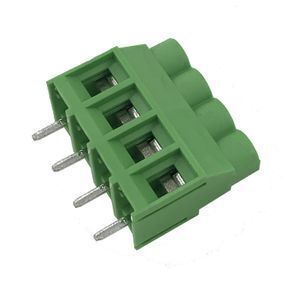

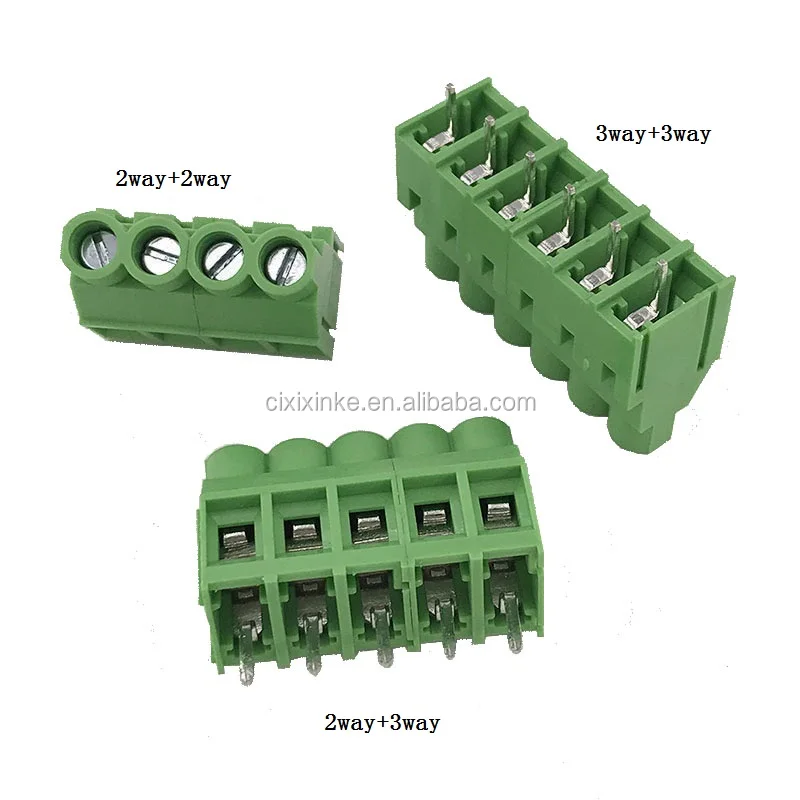

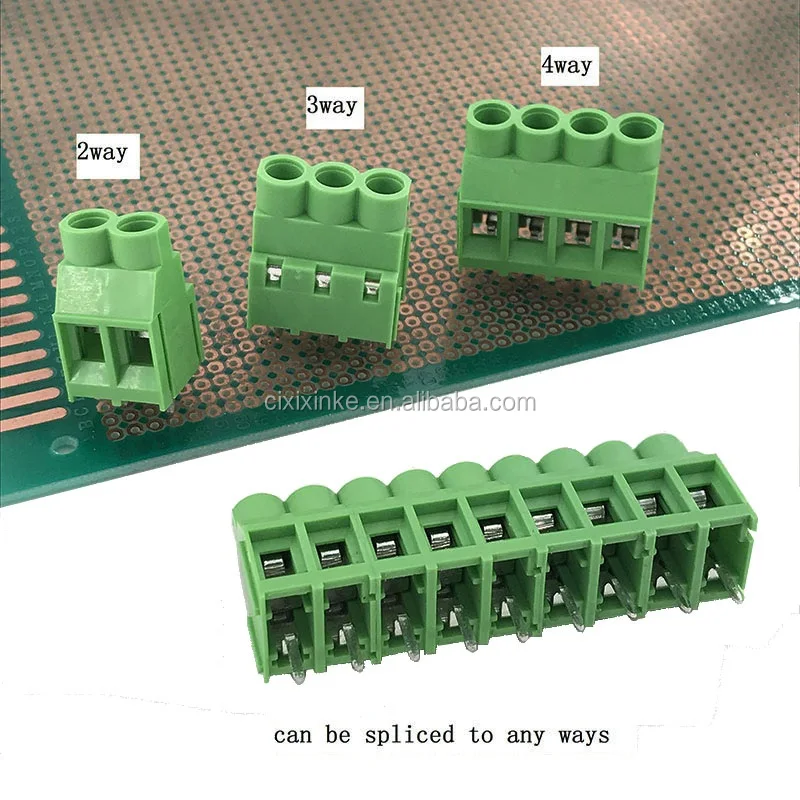

XINKE PCB screw terminal block XK635-6.35MM pitch 2way 3way 4way for power distribution can be spliced 300V 30A

Product details
Rated voltage:300V;Contact material:copper;
Model Number:XK635-6.35MM;Number of Contacts:1 - 10;
Single gross weight:0.004 KG;Place of Origin:Zhejiang China;
Material of terminal:PA66;Package Preview:;
Selling Units:Single item;Conductor Size:11 - 20 AWG;
Wire range:4mm2;temperature:-40℃~+105℃;
Type:Screw;Poles:2P,3P,4P;
Rated Current:30A;Color:Green;
Brand Name:XINKE;Pitch:6.35MM;
Packaging Detail:4 plastic bags in a box;Single package size:0.7XX cm;
Material:Nylon PA66;
Product Description

Pitch:6.35mm;Poles:2P,3P,4P;Rated Voltage/Current:300V/30A



Plastic material:PA66
Welding needle:brass
Screw:M3 Steel
Rated voltage:300V
Rated current:30A
Wire range:22-10AWG  4mm2
Withstanding voltage:AC2500V/1Min
Temp.:-40℃~+105℃
Strip length:6-7mm
Maximum locking torque:0.5Nm(4.4lb-in)

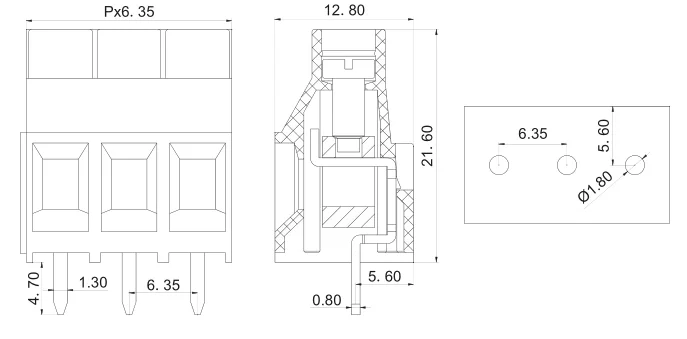

Pitch:6.35mm







Packaging & Shipping

The package of  XINKE has the  the unity of inner and outer packing.

Also special cartons can be made for the customer if have any requirements.
