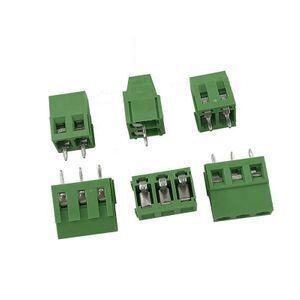

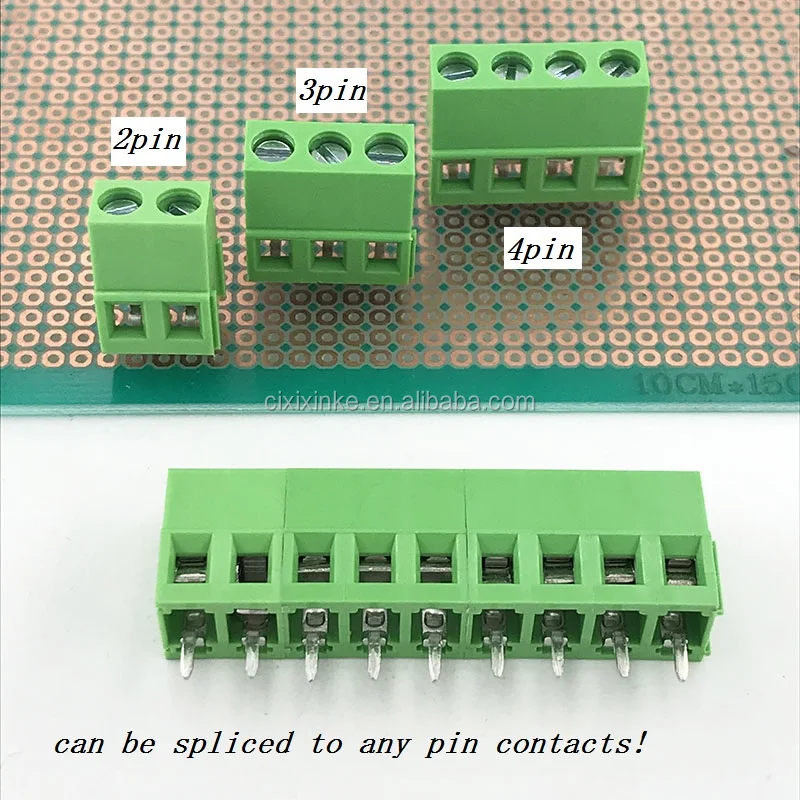

5.08mm pitch PCB screw terminal block connector can be spliced of 2PIN 3PIN XK128L-5.08MM

Product details
Rated Current:10A;Color:Green;
Material of terminal:PA66;Packaging Detail:4 plastic bags in a box;
Wire range:2.5mm2;temperature:-40℃~+105℃;

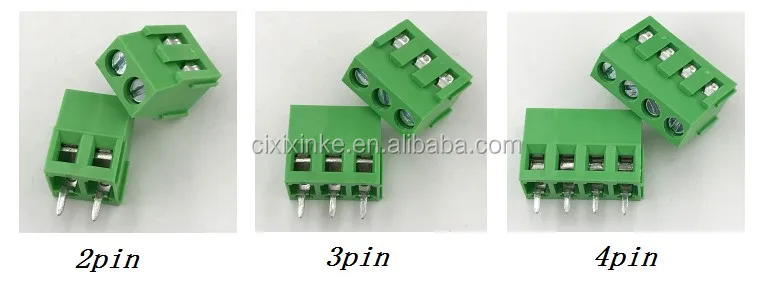

Poles:2p,3P;Place of Origin:Zhejiang China;
Rated voltage:300V;Brand Name:XINKE;
Conductor Size:11 - 20 AWG;Type:PCB;
Port:Ningbo or Shanghai;Number of Contacts:1 - 10;
Payment Terms:L/C,T/T,PAYPAL;Contact material:copper;
Model Number:XK128L-5.08MM;Package Preview:;
Supply Ability:5000 Pole/Poles per Day;Pitch:5.08MM;

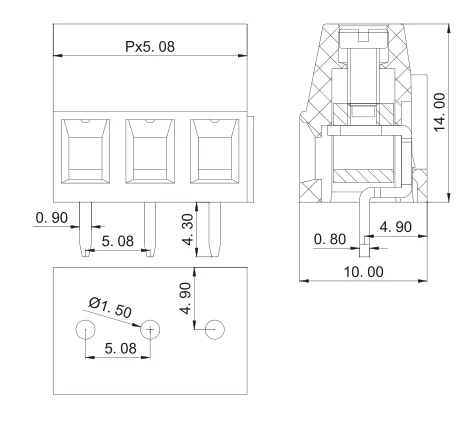

Product Description

Pitch:5.08m;Poles:2P,3P;Rated Voltage/Current:300V/10A







Plastic material:PA66
Welding needle:brass
Screw:M2.5 Steel
Rated voltage:300V
Rated current:10A
Wire range:22-12AWG  2.5mm2
Withstanding voltage:AC2000V/1Min
Temp.:-40℃~+105℃
Strip length:6-7mm
Maximum locking torque:0.4Nm(3.5lb-in)
Pitch:5.08mm





Packaging & Shipping

The package of  XINKE has the  the unity of inner and outer packing.

Also special cartons can be made for the customer if have any requirements.
