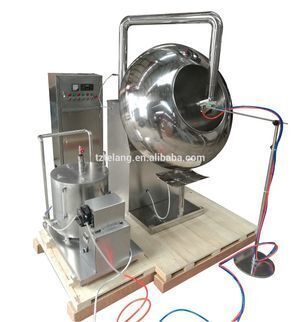

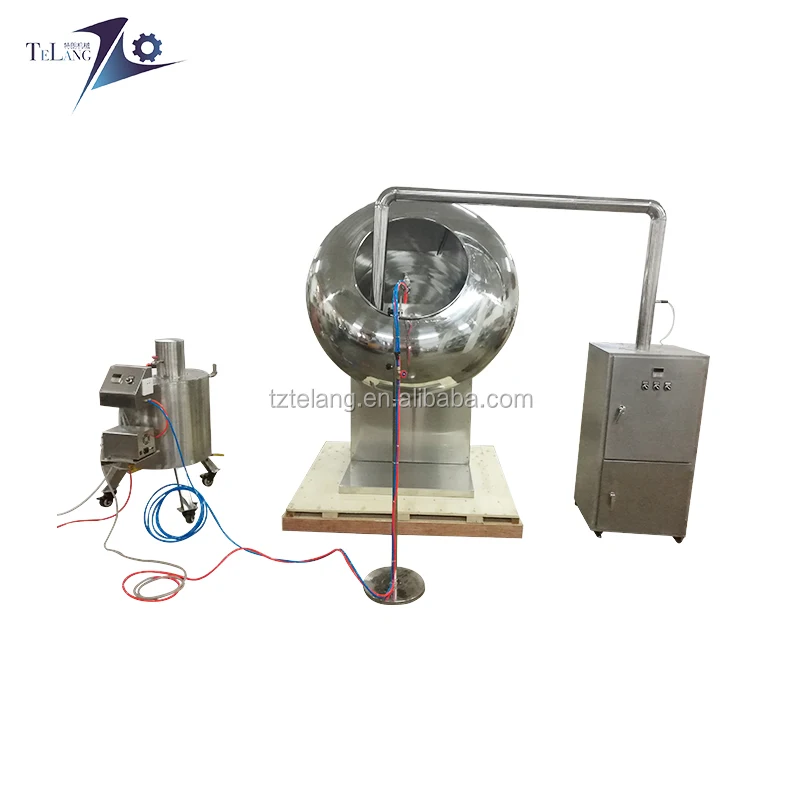

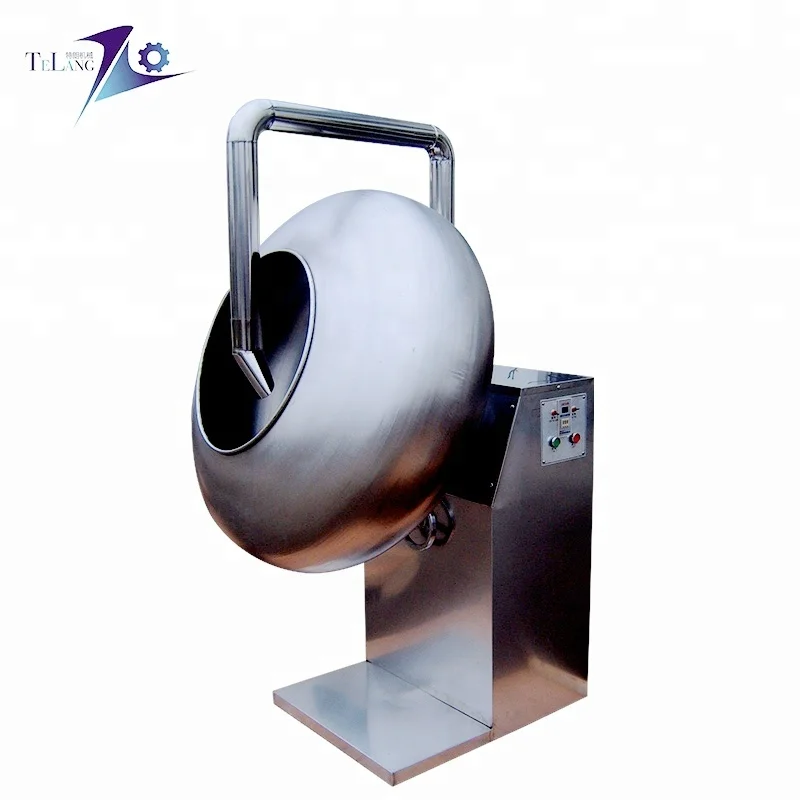

BY Sugar Coating Machine for Nut Peanut Almond Raisin Coating

Supplier: Taizhou Telang Machinery Equipment Co., Ltd.
Region: Jiangsu, China
Contact: Mr Richard Sun
Price: $700.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply Ability:	100 Set/Sets per Month Small chocolate enrobing production pan machine;	Dimension(LWH):	10008001000mm;
Port:	shanghai port;	Production capacity (kg/time):	1~400kg/h for choice;
Voltage:	220V/ 380/ 480/;	Brand Name:	TELANG;
After-sales Service Provided:	Online support,Engineers available to service machinery overseas;	Payment Terms:	L/C,D/P,T/T,Western Union,MoneyGram;
Power of heat(KW):	1.2~5kw;	Pan material:	ss304 or copper;
Certification:	ISO9001;	Power of fan(w):	75~120w;
Warranty:	I YEAR;	Packaging Detail:	wrapped with plastic film, packed inside the wooden case;
Delivery:	by air or sea;	Rotation speed(r/min):	0~46rmp;
Usage:	Pharmaceutical;	Pan size:	200~1500mm;
Pan shape:	round/ drum/ pyriform/customized;	Weight:	290kgs;
Place of Origin:	Jiangsu China;	Condition:	New;
Motor:	China Brand or SIMENS;	Power(W):	0.55~2.2kw;

Product Description

♦ Introduction :

This coating pan machine is mainly used for sugar coating & polishing of tablet / pill in pharmaceutical industry, and also for shaping ball, mini-pill, pellet , mixing and polishing in the industry of food, chemicals, etc.

♦ Application:

For example, nut sugar chocolate coating, tablet sugar flim coating & polishing, honey pill coating & flavoring, ball-rollingetc.

♦ Technical Data:

Model	BY400	BY600	BY800	BY1000		BY1250
Dia meter(mm)	400	600	800	1000		1250
Producition capacity (kg/time)	3-5	10-15	30-50	50-70		80-1500
Air temperature ℃	adjustable by temperature controlling system
Rotations Speed(r/min)	0-46	0-40	0-40		0-32	0-28
Main power (kw)	0.55	0.75	1.1		1.5	2.2
Fan power(kw)	0.04	0.55	0.75		0.75	0.75
Heating power(kw)	1.2	2	2		3	5
Exhaust Power(kw)	0.1	0.75	1.5		1.5	2.2
Light(W)	18	18	18		20	20
Overall size (mm)	8008001200	10008001200	100010001300		120012001450	135013501600

♦ Machine Structure:

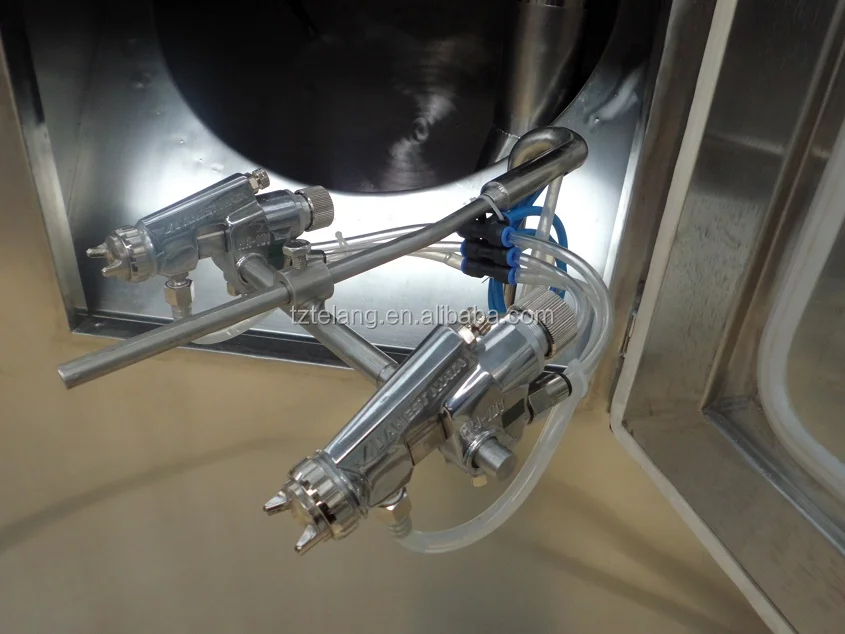

Usually consisting of coating pan, turbine box, heating device, air blower, and electrical controlling, VFD etc, and different kinds of spraying system for different usage, etc.

♦ Customization supported: Irregular shape & size of pan, VFD, automatical charging and discharging, temperature controlling, different kinds of spraying gun, dedusting cabinet, cooling system, etc.

Product Show

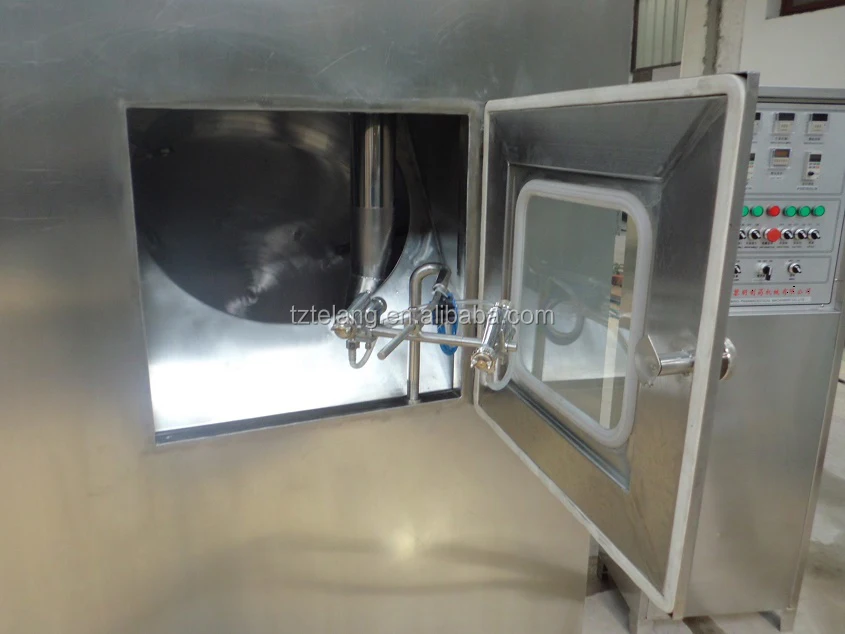

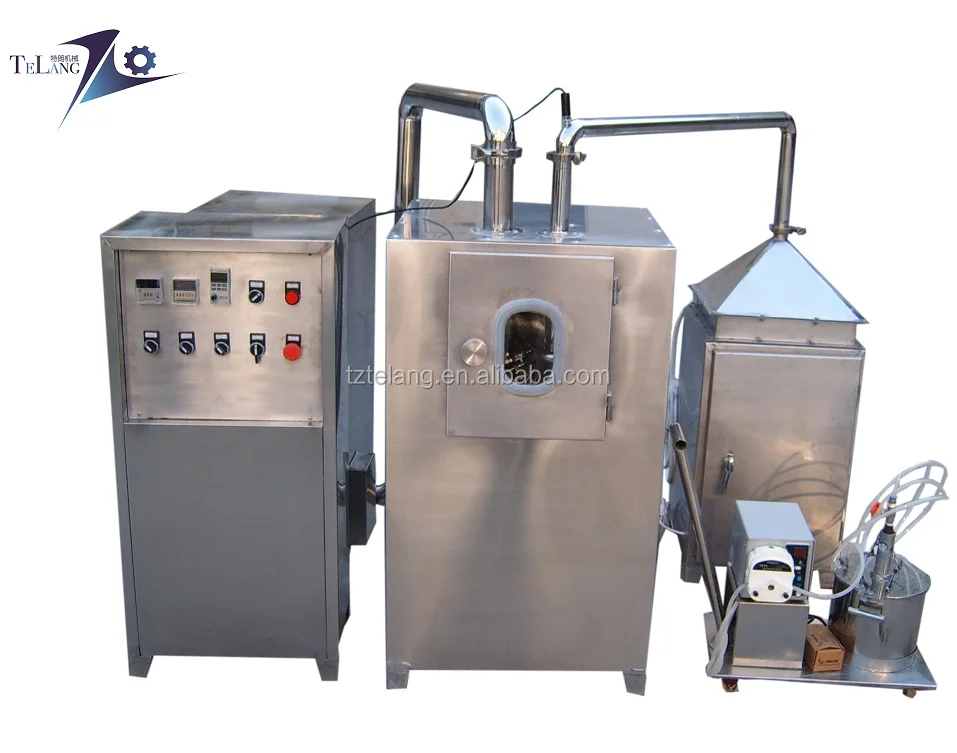

Seperated Type Sugar Coating Machine for Choice.

Product Usage

Package & Delivery

♦ Package:

wrapped with plastic film, packed inside the wooden case, and fixed with sea-worthy pallet

♦ Delivery:

By sea / air / courier would be suppored according to buyer's location, just tell us where you wanna send and when you wanna get, the best solution would be suggested.

Factory View

TELANG Machinery Equipment Co.,Ltd, an efficient and technically strong company, locates in

Taizhou City, Jiangsu province, China, begins its activities as a specialized foreign trade depar-

tment of manufacturing factory for nearly 7 years and has grown over the years to be an indepe-

ndent procurement and supplying company, enjoying sound experience in manufacturing & su-

pplying quality machines, mainly focus on offering added-value technical expertise, cost-savin-

g solutions & rich heritage of industrial & mechanical knowledge.

TELANG Machinery Equipment Co.,Ltd helps customer SAVE time and cost by directly provi-

ding the right machinery equipments and sparepart with good quality to make sure your produ-

ction effcient.

FAQ

1. How to choose proper machine / equipment .
Please reply us the following items,
-what the product like you would produce, size, shape, etc.
- raw material
- the production capacity, how much kilogram per hour or per day
- power supply, such as Voltage, Hz, and Phase
Our technical engineer would suggest the proper model with necssary information for your reference. And the production line with workshop projection design could also be supplied as per your inquiry.

2. Quality Assurance
· We support SAMPLE PRE-PROCESSING in machine
· Every set of machine would be strictly inspected before shipment to ensure the quality.
· TEST RUNNING with material could be supported according to your inquiry.
· There would be quality certificate along with machine.
· Wear and tear parts would be shipped with machine.
· Real-time checking on line for machine manufacturing would be supplied if you like.
· Spot checking would be welcome if you pay visiting to our workshop, which would be well arranged and confirmed with you in email

3. After sale service.

We supply operation training for workers, and sport installation would be supplied for production line and workshop design.
Regular inquiry in the email would be supplied for machine running and usual maintenance.
