Pan size: | can be deepened or enlarged; | Delivery Detail: | 10 working days; |
Voltage: | 110 V/220 V/380; | Power(W): | 0.37kw; |
Model Number: | BY-300/400; | Payment Terms: | L/C,D/P,T/T,Western Union,MoneyGram; |
Power of heat(KW): | 1.2kw; | Power of fan(w): | 0.075kw; |
Port: | shanghai port; | Condition: | New; |
Production capacity (kg/time): | 1~5kg/h for choice; | Rotation speed(r/min): | 0~46rmp; |
Warranty: | One Year; | Place of Origin: | Jiangsu China (Mainland); |
Supply Ability: | 100 Set/Sets per Month Automatic Small Tablet Coating Machine with spraying; | Certification: | CE ISO; |
Packaging Detail: | wrapped with plastic film, packed inside the wooden case Automatic Small Tablet Coating Machine with spraying; | Pan material: | ss304 or copper; |
Brand Name: | TELANG; | Pan shape: | round/ drum/ pyriform/customized; |
Weight: | 37kgs; | After-sales Service Provided: | Engineers available to service machinery overseas; |
Delivery: | by air or sea; | Usage: | Pharmaceutical; |
Usage: | automatic tablet coating; | Motor: | China Brand or SIMENS; |
Dimension(L*W*H): | 500*350*700mm; |
♦ Introduction :

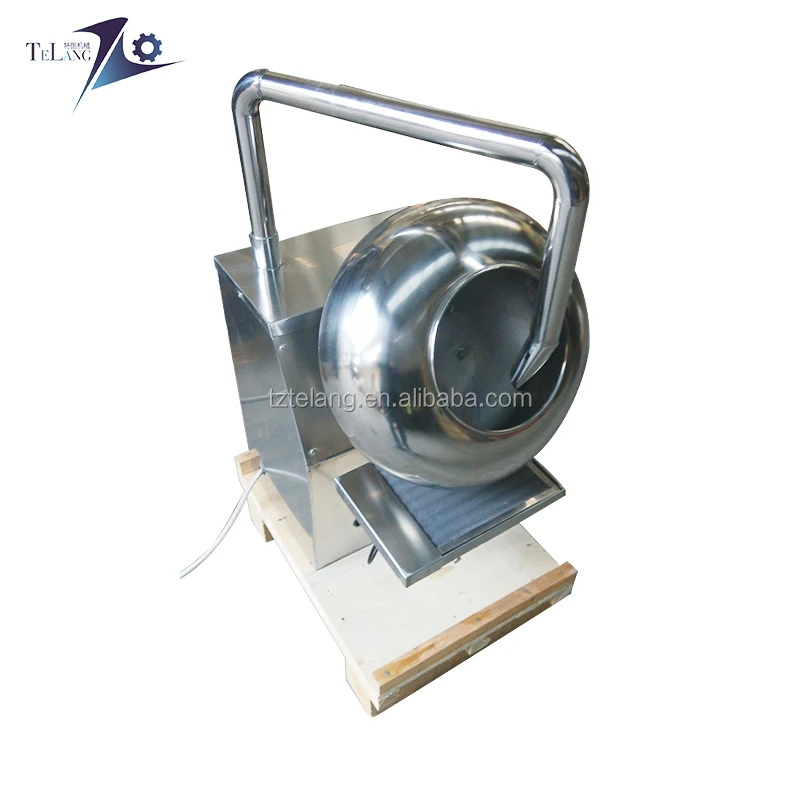

This coating pan machine is mainly used for sugar coating & polishing of tablet / pill in pharmaceutical industry, and also for shaping ball, mini-pill, pellet , mixing and polishing in the industry of food, chemicals, etc. |
♦ Application:
For example, Chocolate coating & polishing, peanut coating & flavoring, making tapioca pearl & sweet dumpline, ball-rolling for dyring agent / chemical filling / Al(OH)3 ball / porcelain ball, etc. |
♦ Technical Data:
Model | BY200 | BY300 | BY400 | BY600 | BY800 | BY1000 | BY1250 | BY1500 |
Dia of sugarcoating dish (mm) | 200 | 300 | 400 | 600 | 800 | 1000 | 1250 | 1500 |
Production capacity (kg/time) | 1 | 2 | 5 | 15 | 30-50 | 50-70 | 80-150 | 300-400 |
Rotation speed(r/min) | 46 | 46 | 46 | 36 | 36 | 32 | 28 | 26 |
Power of motor(KW) | 0.37 | 0.37 | 0.37 | 0.75 | 1.5 | 1.5 | 3 | 5.5 |
Power of fan(W) | 75 | 75 | 75 | 75 | 120 | 120 | 180 | 370 |
Power of heat(KW) | 1.2 | 1.2 | 1.2 | 2 | 2 | 3 | 5 | 6 |
Overall size(mm) | 500*350 *700 | 500*350 *700 | 550*400 *800 | 800*600 *900 | 1000*800 *1430 | 1100*1000 *1560 | 1250*1200 *1820 | 1500*1500 *1980 |
Weight(kg) | 36 | 37 | 38 | 85 | 205 | 220 | 350 | 600 |
♦ Machine Structure:

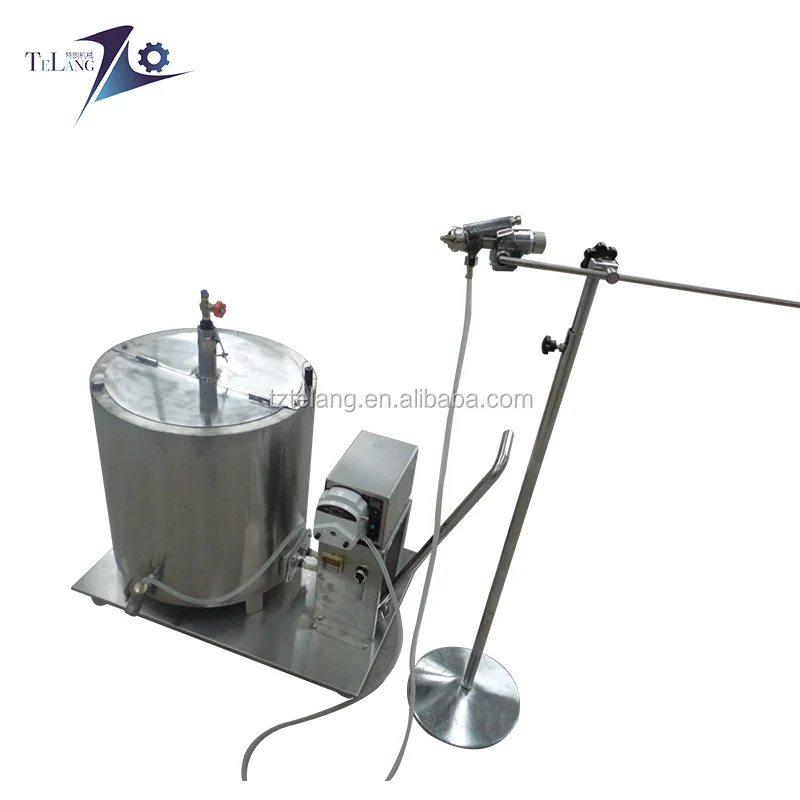

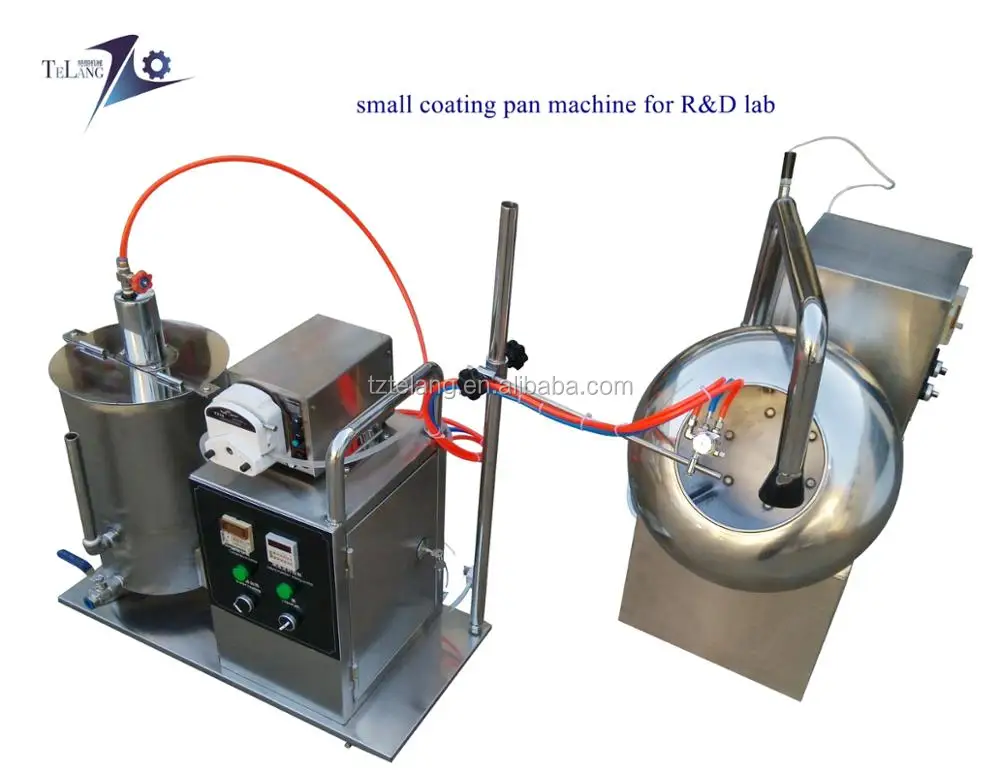

Usually consisting of main body, worm gear case, coating pan,heating device, air blower, and electrical controlling as VFD etc, and different kinds of spraying system for different usage, etc.
♦ Customization supported: Irregular shape & size of pan, VFD, automatical charging and discharging, temperature controlling, different kinds of spraying gun, dedusting cabinet, cooling system, etc.
♦ Package: wrapped with plastic film, packed inside the wooden case, and fixed with sea-worthy pallet ♦ Delivery: By sea / air / courier would be suppored according to buyer's location, just tell us where you wanna send and when you wanna get, the best solution would be suggested. |
1. How to choose proper machine / equipment .
Kindly reply us the following items,
-what is the product you do
- raw material
- the production capacity per hour or per day.
- power supply, such as Voltage, Hz, and Phase
Our technical engineer would suggest the proper model with necssary information for your reference. And the production line in workshop could be supplied as per your inquiry.
2. Quality Assurance
· We support SAMPLE making and testing with your raw material.
· Every set of machine would be strictly inspected before shipment to ensure the quality.
· TEST RUNNING with material could be supported according to your inquiry.
· There would be quality certificate along with machine.
· Easily Wear and tear parts would be shipped with machine.
· Real-time checking on line for machine manufacturing would be supplied if you like.
· Spot checking would be welcome if you like to visit our factory, and the whole journey would be arranged well for you.
3. After sale service.
We supply operation training for workers, and installation in your location.
Regular and considerate inquiry in the email would be supplied for machine running and usual maintenance.
