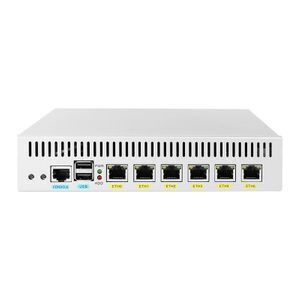

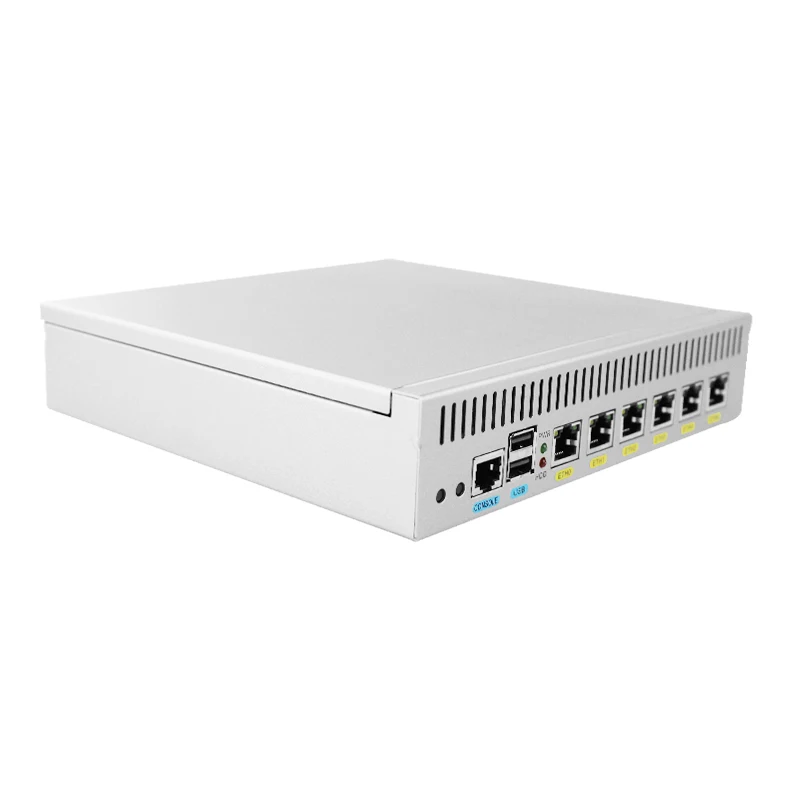

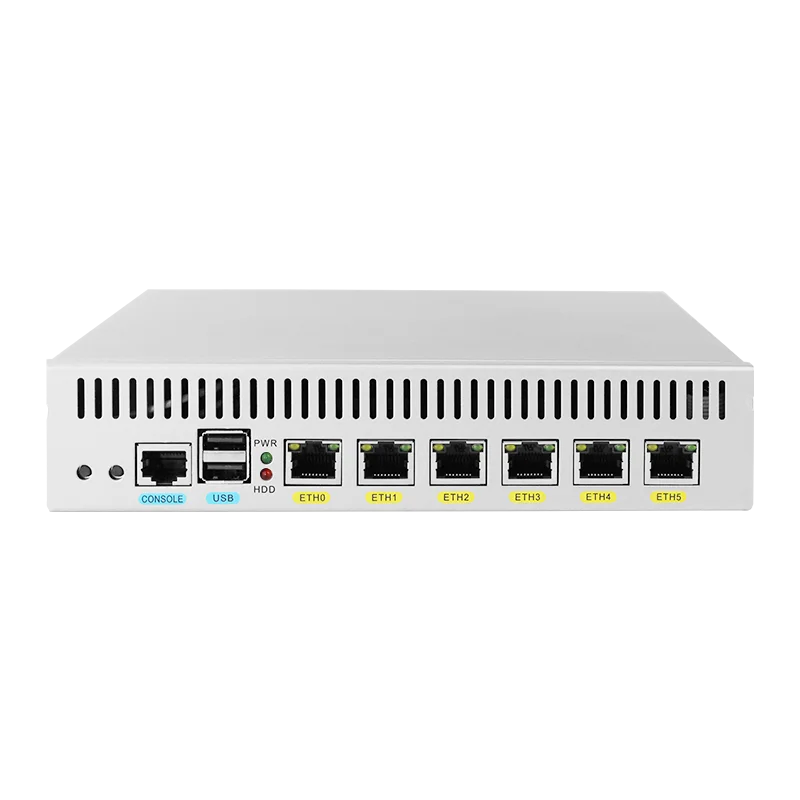

Pfsense Firewall 6 Intel Gigabit Lan Mini Pc Intel D525 Barebone Soft Router

Product details
CPU:Atom D525;Product name:Hardware Firewall;
Selling Units:Single item;COLOR:White;
USB Port:2 * USB2.0;Operating System:Linux Pfsense Win7 Win8 Win10;
LAN:6*I211 Lan;Storage:1*MSATA;
Single gross weight:2.0 KG;Display port:1*VGA;
Single package size:25X23X8 cm;Memory:DDR3 RAM;
Dimensions (W x D x H):23*21*4.5CM;

Model Number:

 D525-6Lan

Type:

 D525 6 Ethenet (Desktop Type)

CPU:

 Intel D525 Dual Core 4 Threads 1.8G

AES-NI Supported:

NO

Chipeset:

 Intel 82801JIR+Intel ICH8M Single Chipset

Memory:

 1* SO DDR3, 1333MHz, Max. 4G RAM

HDD/SSD:

 1 SSD Supported

Ethernet:

 Intel PCI-E 1000M 6*i211 (Good Performance, Less Heat, Stable)

COM

YES

Hardware:

 Standard 1U Type(23*21*5CM), 48W Big Power,Can Rack,With Mounting Bracket Ears, Wall Hanging, Foot Pad

Support:

 RouterOS(ROS), Mikrotik,PFSense, IPFire, Panabit, WayOS, SmoothWall, m0n0wall, ClearOS, IPCop, Devil Linux, Radius_Manager, BYTEVALUE, Netzone, Hi-spider, iKuai8, etc.

Network Card:

 The motherboard integrates 6 Intel Gigabit Ethernet electrical interfaces and uses the Intel 82583V/L10/100/1000M Ethernet controller. The network card bus uses the PCI-E interface and the actual test traffic exceeds 1000M/S.

WAN-LAN Throughput:

 Around 200-250Mbps
