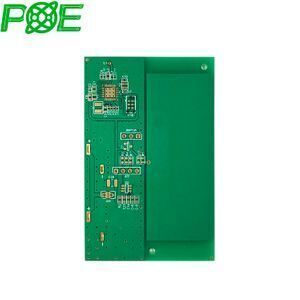

1Layer PCB Circuit Board Manufacturer With Best Quote

Supplier: Shenzhen POE Precision Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Vicky Liang
Price: $0.10 /piece
Min. Order: 1 piece

Click here to contact

Product details

Copper Thickness:	1oz;	Board thickness tolerance:	+/-10%;
Board Thickness:	1.6mm;	Min. Hole Diameter:	0.20mm;
Model Number:	PCB-0006;	Base Material:	FR4;
Min. Line Width:	4mil;	Surface Finishing:	HASL Lead Free;
Service:	One-Stop Service;	Application:	Consumer Electronic;
Place of Origin:	Guangdong China (Mainland);	Type:	Electronic Board;
Supply Ability:	20000 Square Meter/Square Meters per Month;	Min. Line Spacing:	4mil;
Payment Terms:	L/C,T/T,Western Union,Paypal;	Packaging Detail:	PCB: Vacuum Packing with Carton Box PCBA: ESD Packing with Carton Box Electronics 94v-0 Circuit Board Custom PCB Board Manufacturer;
Port:	Shenzhen;	Product name:	Single Sided Pcb;
Solder mask color:	Green Blue;	Certificate:	UL/ROHS/ISO9001;
Hole tolerance:	PTH+/-3mil NPTH:+/-2mil;	Brand Name:	POE;
Impedence Control Tolerance:	±5%;

Company Information

Product Description

POE has the capability to manufacture pcb ranging from basic single sided boards up to 28 layer multilayers ,and provide one stop turnkey services, including pcb layout, manufacture, assembly, components source and function testing. The superior service we offer our customers is the key to our success and our mission has remained the same since we started business in 1996: to provide high quality, technically advanced products within the customer’s timescales. This commitment, combined with the wealth of experience and expertise we have built up over the years, means we can offer a total solution to our customers PCB requirements – from front end engineering through to in time deliveries.

ITEM	Capability
Layers	1--28
Copper thickness	1--6OZ
Base material	FR4(Shengyi China,ITEQ,KB A+,HZ),HI-TG, FR06, Rogers, Taconic,Argon,Nalco,Isola and so on
Finished surface	conventional hasl, lead free hasl, immersion gold, immersion tin, immersion silver, hard gold, OSP...
Soldermask	green, black, yellow, white, blue, red......
Finished board thickness	0.2-7.0mm
Board thickness tolerance	Board thickness≤1.0mm: +/-0.1mm 1Board thickness>2.0mm: +/-8%

Lead time for bare PCB

Layer	Quick Turn/Usual Time	Mass production
2L	24hours/ 4-5days	8-10days
4L	48hours/ 6-7days	10-12days
6L	72hours/ 8-10days	12-14days
8L	72hours/ 7-8days	16-18days
10L	96hours/ 12-14days	18-20days
...	...	...

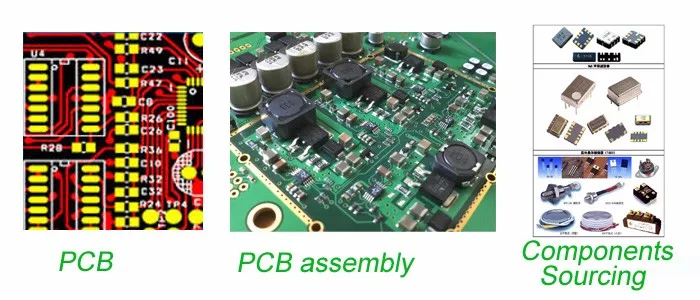

Our main pcb products

1. PCB	2.PCB board	3. PCB assembly	4.PCB manufacturer
5. LED pcb	6.94v0 pcb board	7.PCB circuit board	8.94v0 rohs pcb board
9. LED pcb 94V0	10.LED pcb board	11. PCBA	12. PCBA assembly

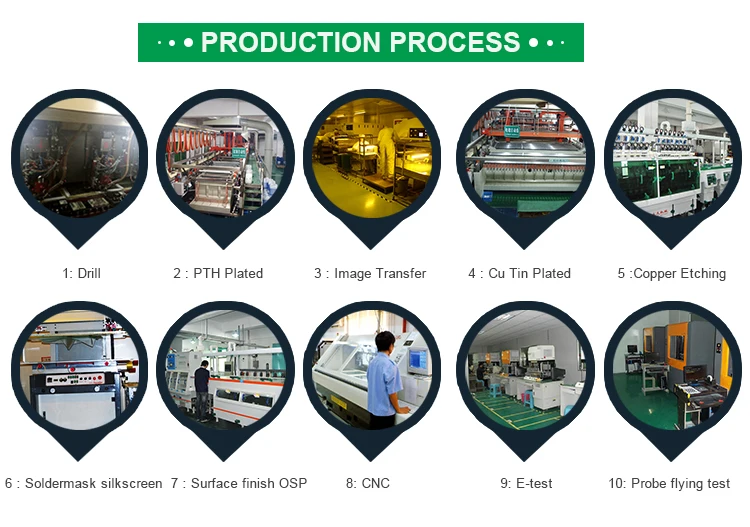

Production process

Why choose us?

1.Professional engineer team --help you to check design and do engineering before production.
2.Rich expierences in pcb production industry--provide high quality and competitive price pcb.
3.After-sales service--every problem you have will get our professional advice and solution.
4.Constant follow up-- make us have the fast reaction of your requirement.
5.Inspected by the Inspection Institution--ISO,UL,ROHS cerfiticated.

Our Service

Packing & Delivery

Packing Details : PCB: Vacuum Packing with Carton Box PCBA: ESD Packing with Carton Box

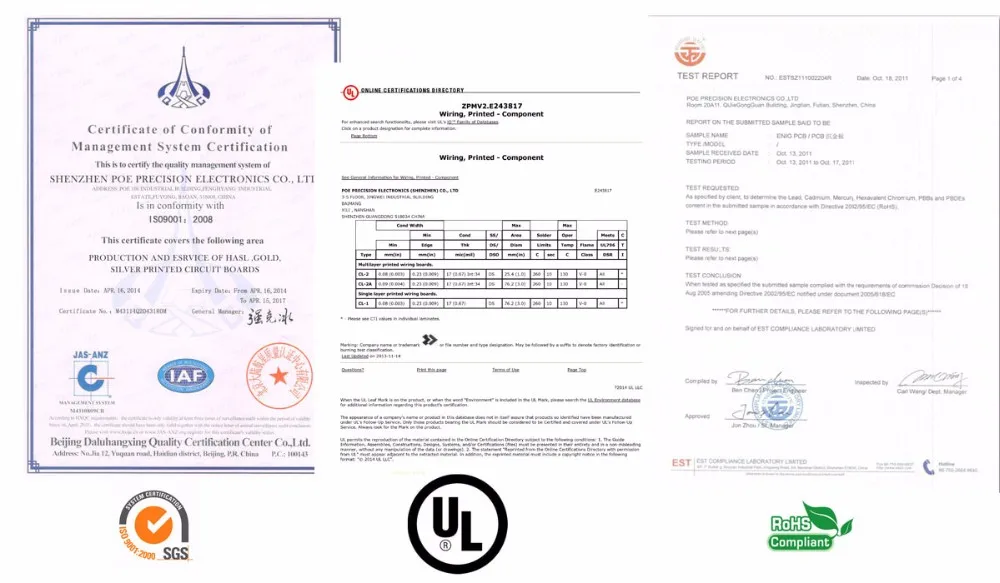

Delivery Details : 5-15 days after paymentOur Certifications

FAQ

Q1.What is needed for PCB PCBA quotation?
A: PCB: Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)
PCBA: PCB information, BOM, (Testing documents...)

Q2. What file formats do you accept for PCB PCBA production?
A: Gerber file: CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel (PDF,word,txt)

Q3. Are my files safe?
A: Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole process.. All documents from customers are never shared with any third parties.

Q4. MOQ?
A: There is no MOQ in POE.We are able to handle Small as well as large volume production with flexibility.

Q5.Shipping cost?
A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.

Shenzhen OEM 94v0 Circuit Board PCB Manufacture with best quote.
