Certification: | CE,ISO9001; | Applicable Industries: | Manufacturing Plant,Food & Beverage Factory,Food Shop; |
Machinery Test Report: | Provided; | Marketing Type: | Hot Product 2019; |
Warranty of core components: | 1 YEAR; | Key Selling Points: | Easy to Operate; |
Warranty: | 1 YEAR; | Place of Origin: | Shanghai China; |
Showroom Location: | None; | Payment Terms: | L/C,T/T,Western Union,MoneyGram,VISA; |
Brand Name: | RUIYUAN; | Voltage: | 220V/380V,380v; |
After Warranty Service: | Video technical support; | Dimension(L*W*H): | 900*900*1800; |
Power(W): | 750; | After-sales Service Provided: | Online support; |
Local Service Location: | None; | Core Components: | PLC,Pressure vessel,Pump; |
Port: | Shanghai; | Video outgoing-inspection: | Provided; |
Weight: | Customized,300kg; | Condition: | New; |
Supply Ability: | 1.0 Unit/Units per Day; |
Usage:

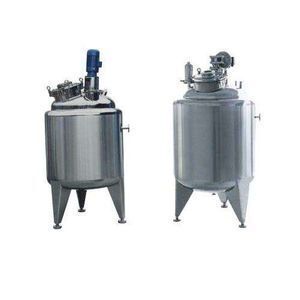

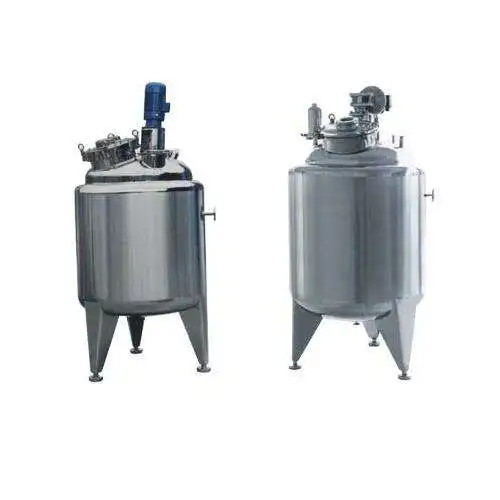

1. Crystallizing tank is one of the typical reactive equipment in chemical, Pharmaceutical and foodstuff industries.
2. It accelerates chemical reaction by mixing two or more types of liquid, or gas materials of certain capacity with stirrer under certain pressure and temperature. It is often accompanied by heat effect. The heat required is input or exhausted by heat-exchanging device.
Structure and performance:
1. The equipment mainly consists of tank, jacket and stirring system. The stirring type is mostly gate type, ensuring materials fully mixed within short time;
2. The sealing type is mostly gate type. Keeping pressure in tank and preventing materials in tank from leaking and resulting in unnecessary pollution.
3.The parts in contact with material are made of 304 or 316Lstainless steel in conformity with sanitary standard for Medicine.
Model and Specification
|
FG-300
|
FG-500
|
FG-1000 |
FG-2000
|
FG-3000 |
FG-5000 |
FG-10000
|
||||||||
Volume(L)
|
300 |
500 |
1000 |
2000 |
3000 |
5000 |
10000 |
||||||||
Pressure inside jacket
|
inside |
≤0.2MPa |
|||||||||||||
|
jacket |
≤0.3MPa |
|||||||||||||
Motor power(kw) |
0.55 |
1.1 |
1.5 |
3.0 |
5.5 |
7.5 |
15 |
||||||||
Mixing speed |
18-200r/min |
||||||||||||||
Overall size |
Diameter |
900 |
1150 |
1400 |
1580 |
1800 |
2050 |
2500 |
|||||||
|
Height |
2200 |
2400 |
2700 |
3000 |
3600 |
4200 |
5000 |
