API standard F-800 drilling triplex Mud Pump

Product details
Brand Name:Bomco;Port:Qingdao or Tianjin sea port of CHina;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Theory:mud pump;
Supply Ability:20 Set/Sets per Month API standard F-800 drilling triplex Mud Pump;Showroom Location:None;
standard:API 7K;Packaging Detail:naked;
Warranty:1 Year,1 Year;Valve pots:API 1-8#;
Model Number:F800 F1600;Type:piston pump,piston;
Certificate:API;After-sales Service Provided:Video technical support,Online support;
Local Service Location:None;Product name:API standard F-800 drilling triplex Mud Pump;
Usage:Oil;Condition:New;
Application:oil drilling mud pump;Applicable Industries:Energy & Mining;

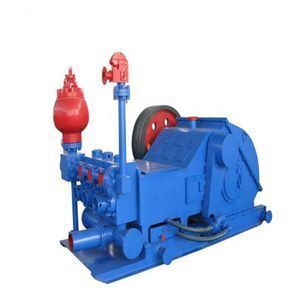

API standard F-800 drilling triplex Mud Pump

Product Description

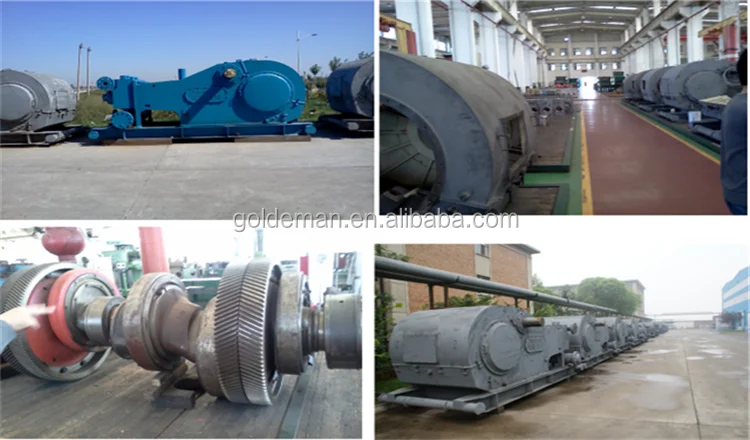

 drilling triplex Mud Pump

 F series mud pumps has the excellent operation performance with the firm and compact

  structure and small volume.



F series mud pump  parameters

ModelF-500F-800F-1000F-1300F-1600
TypeTriplex single acting pistonTriplex single acting pistonTriplex single acting pistonTriplex single acting pistonTriplex single acting piston
Max. Liner size x stroke170 x 191mm
(6-3/4" x 7-1/2")
170 x 229mm
(6-3/4" x 9")
170 x 254mm
(6-3/4" x 10")
180 x 305mm
(7" x 12")
180 x 305mm(7" x 12")
Strokes Rating165r/min150r/min140r/min120r/min120r/min
Power Rating373kW(500HP)596kW(800HP)746kW(1000HP)969kW(1300HP)1193kW(1600HP)
Gear TypeHerringboneHerringboneHerringboneHerringboneHerringbone
Gear Ratio4.286:14.185:14.207:14.206:14.206:1
LubricationPressure & SplashPressure & SplashPressure & SplashPressure & SplashPressure & Splash
Suction Inlet8" Flange
(203mm Approx)
10" Flange
(254mm Approx)
12" Flange
(305mm Approx)
12" Flange
(305mm Approx)
12"Flange
(305mm Approx)
Discharge Outlet4" Flange, 5000Psi139.7mm(5-1/2")5" Flange, 5000Psi5" Flange, 5000Psi5" Flange, 5000Psi5" Flange, 5000Psi
Pinion Shaft Dia.139.7mm(5-1/2")177.8mm(7")196.9mm(7-3/4")215.9mm(8 1/2")215.9mm(8 1/2")
Key31.75 x 31.75mm
(1-1/4" x 1-1/4")
44.45 x 44.45mm
(1-3/4" x 1-3/4")
50.8 x 50.8mm
(2" x 2")
50.8 x 50.8mm
(2" x 2")
50.8 x 50.8mm(2" x 2")
Valve PotsValve-Over-Valve, AP1#5Valve-Over-Valve, AP1#6Valve-Over-Valve, AP1#6Valve-Over-Valve, AP1#7Valve-Over-Valve, AP1#7
Approx. Weight9770kg(21540lb)14500kg(31970lb)1879kg(41420lb)24572kg(54170lb)24791kg(54660lb)

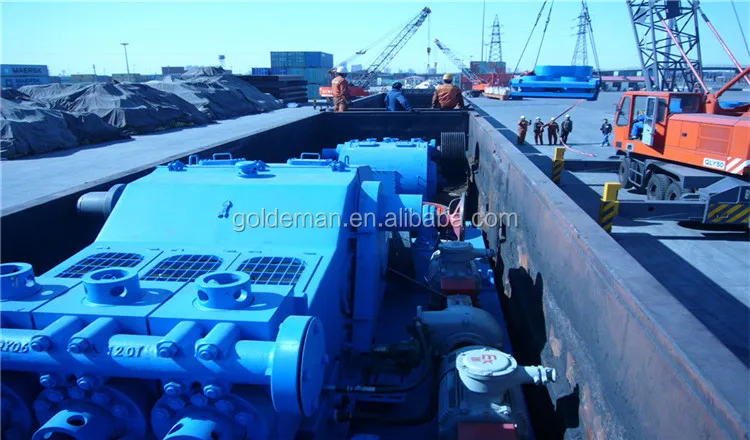

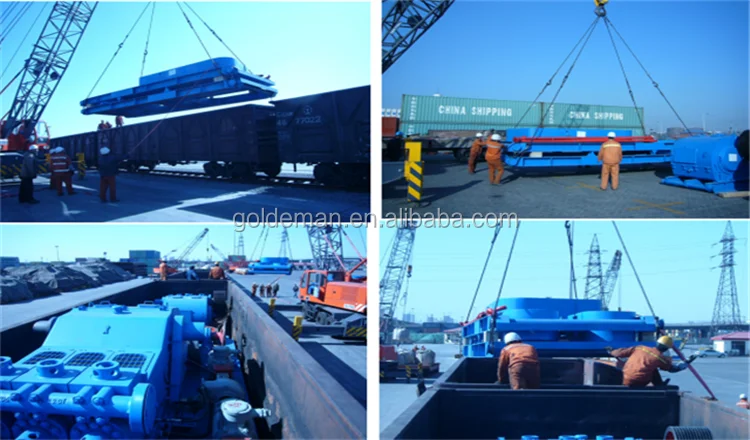

Packaging & Shipping

 naked package and ship by railway or container







Exhibition



Client Visiting





Our Team

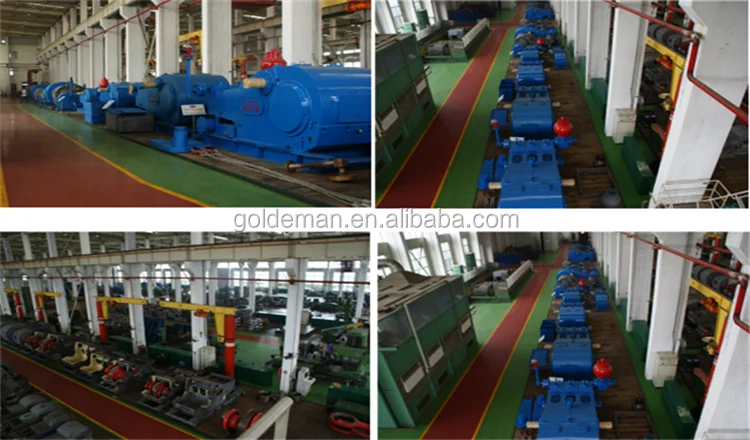

Company Information



Goldenman Petroleum Equipment Co.,Limited supply drilling equipment for 11 years.

We are committed to develop, manufacture and supply a variety  of oilfield equipment.

We have established a complete quality control system,  all products&

Equipment manufactured as  per international standard and API standard.



Our Services



1.High quality products.

2.Fast delivery.

3.OEM services.

4.Perfect after-sale services
