Supply Ability: | 10000 Piece/Pieces per Month; | Material: | Ceramic; |
Application: | Acid Resistant Ball Valve; | Payment Terms: | L/C,T/T,Western Union; |
Structure: | BALL; | Temperature of Media: | Medium Temperature; |
Media: | Oil; | Model Number: | API-225; |
Brand Name: | Zhongshi; | Port Size: | standard; |
Standard or Nonstandard: | Standard; | Power: | Pneumatic; |
Port: | Qingdao / Tianjin; | Packaging Detail: | Plywooden Case or Carton; |
Place of Origin: | Henan China; | Pressure: | Medium Pressure; |

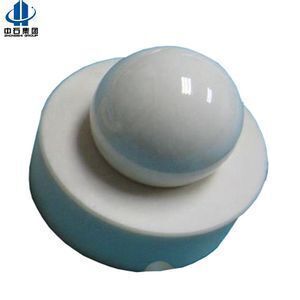

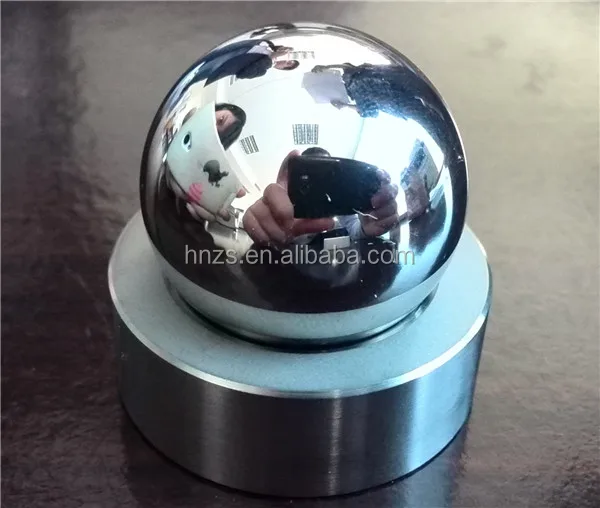

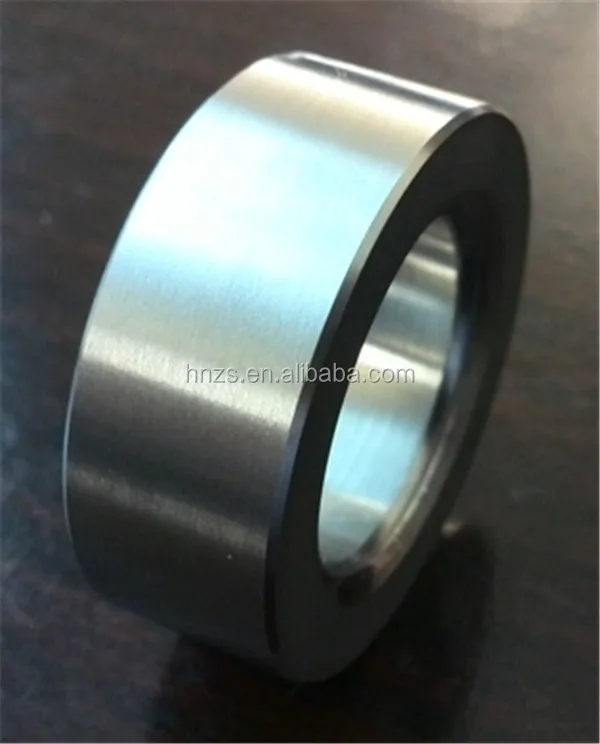

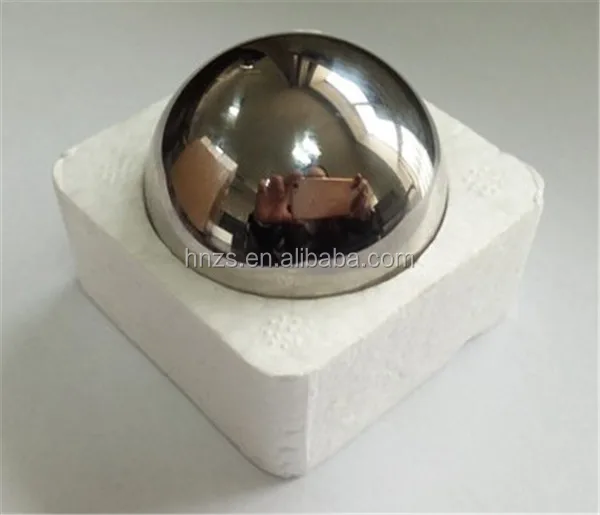

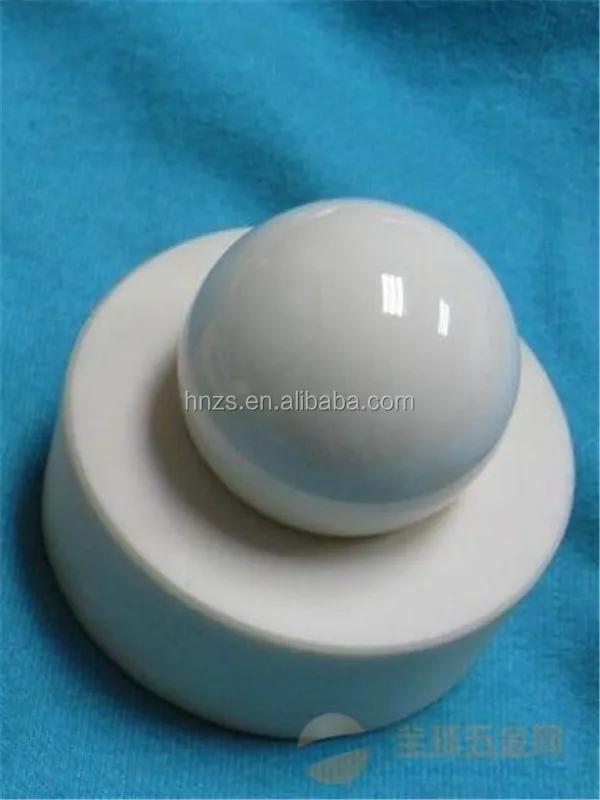

Valve Ball and Valve Seat
The valve balls and valve seats are main components and parts of the sucker rod pump.
Main Features:
Standard: API Spec 11AX
High Precission in Shape;
Strong corrosion resistance
Excellent mechanical property
Materials: Stainless Steel, Tungsten Carbide, Titanium Carbide, Cobalt Alloy
Specification of Valve Ball & Valve Seat for API Sucker Rod Pump
API No. | Seat Size | Ball Size |
V11-106 | 1-1/16" | 5/8" |
V11-125 | 1-1/4" | 3/4" |
V11-150 | 1-1/2" | 15/16" |
V11-175 | 1-3/4" | 1-1/8" |
V11-200 | 2" | 1-1/4" |
V11-225 | 2-1/4" | 1-3/8" |
V11-250 | 2-3/4" | 1-1/16" |
V11-375 | 3-3/4" | 2-1/4" |
