Specification of Pumping Unit
Our company manufactures the machines for oilfield in petroleum industry. We supply oil machines to oilfields for more than 15 years. Our main products include pumping unit, subsurface pump, wellhead, float collar & shoe, casing centralizer, and also drilling mud purification equipment system.

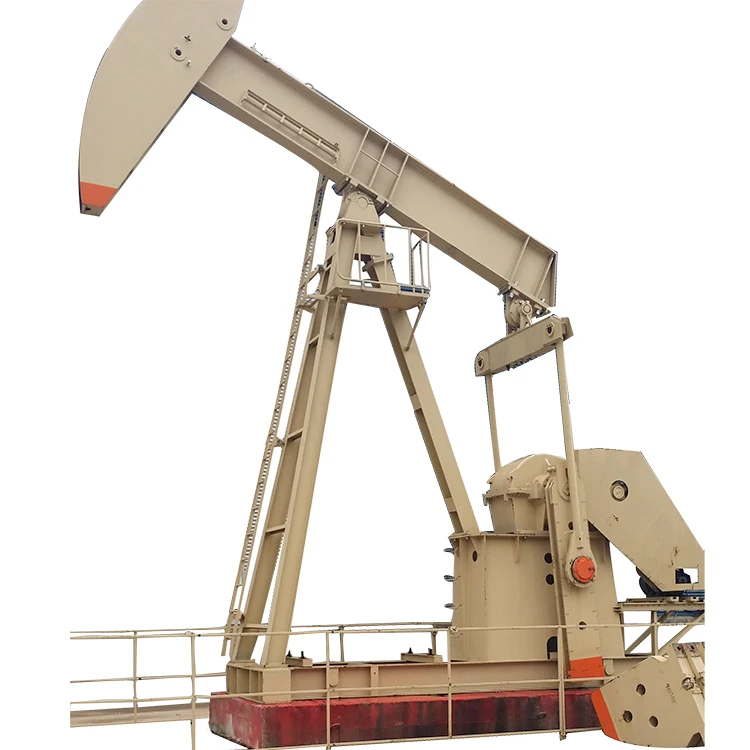

The C series walking beam-balanced pumping unit is used to supply the common power in the oil extraction industry. It is connected with the polish rod and drives the subsurface pump to move up and down.
Feature
1, With the modular programming and virtual manufacturing design, the production structure optimizes and the components have a higher level of standardization, generalization and systematization.
2,The finite element analysis enables the key parts a stable performance and high reliability.
3,Double circular gears and in volute herring- bone gear are used in gear reducer to provide smooth running, close sealing, lower noise and higher load capacity.
4,It's simple to operate and convenient to repair. It has a long service life.
Specifications
Item | Pumping | Lifting | Stroke | Rated |
1 | C-912D-470-240 | 47,000 | 240 211 181 | 912,000 |
2 | C-912D-427-216 | 42,700 | 216 185 155 | 912,000 |
3 | C-912D-427-192 | 42,700 | 192 165 138 | 912,000 |
4 | C-912D-305-192 | 30,500 | 192 165 138 | 912,000 |
5 | C-912D-365-168 | 36,500 | 168 144 121 | 912,000 |
6 | C-912D-305-168 | 30,500 | 168 144 121 | 912,000 |
7 | C-912D-427-144 | 42,700 | 144 123 102 | 912,000 |
8 | C-640D-305-192 | 30,500 | 192 165 138 | 640,000 |
9 | C-640D-305-168 | 30,500 | 168 144 121 | 640,000 |
10 | C-640D-365-144 | 36,500 | 144 123 102 | 640,000 |
11 | C-640D-305-144 | 30,500 | 144 123 102 | 640,000 |
12 | C-640D-256-144 | 25,600 | 144 123 102 | 640,000 |
13 | C-640D-305-120 | 30,500 | 120 102 84 | 640,000 |
14 | C-456D-305-168 | 30,500 | 168 144 121 | 57,000 |
15 | C-456D-305-144 | 30,500 | 144 123 102 | 40,000 |
16 | C-456D-256-144 | 25,600 | 144 123 102 | 57,000 |
17 | C-456D-365-120 | 36,500 | 120 102 84 | 40,000 |
18 | C-456D-305-120 | 30,500 | 120 102 84 | 25,000 |
19 | C-456D-256-120 | 25,600 | 120 102 84 | 25,000 |
20 | C-320D-256-144 | 25,600 | 144 123 102 | 320,000 |
21 | C-320D-256-120 | 25,600 | 120 102 84 | 320,000 |
22 | C-320D-213-120 | 21,300 | 120 102 84 | 320,000 |
23 | C-320D-305-100 | 30,500 | 100 85 70 | 320,000 |
24 | C-320D-256-100 | 25,600 | 100 85 70 | 320,000 |
25 | C-320D-213-86 | 21,300 | 86 71 56 | 320,000 |
26 | C-228D-213-120 | 21,300 | 120 102 84 | 228,000 |
27 | C-228D-173-100 | 17,300 | 100 86 72 | 228,000 |
28 | C-228D-246-86 | 24,600 | 86 71 56 | 228,000 |
29 | C-228D-213-86 | 21,300 | 86 71 56 | 228,000 |
30 | C-228D-200-74 | 20,000 | 74 64 54 | 228,000 |
31 | C-228D-173-74 | 17,300 | 74 64 54 | 228,000 |
32 | C-160D-173-86 | 17,300 | 86 74 62 | 160,000 |
33 | C-160D-200-74 | 20,000 | 74 64 54 | 160,000 |
34 | C-160D-173-74 | 17,300 | 74 64 54 | 160,000 |
35 | C-160D-143-74 | 14,300 | 74 64 54 | 160,000 |
36 | C-160D-173-64 | 17,300 | 64 54 44 | 160,000 |
37 | C-114D-119-86 | 11,900 | 86 72 59 | 114,000 |
38 | C-114D-143-74 | 14,300 | 74 62 51 | 114,000 |
39 | C-114D-173-64 | 17,300 | 64 54 44 | 114,000 |
40 | C-114D-143-64 | 14,300 | 64 52 40 | 114,000 |
41 | C-114D-133-54 | 13,300 | 54 45 36 | 114,000 |
42 | C-80D-119-64 | 11,900 | 64 53 42 | 80,000 |
43 | C-80D-133-54 | 13,300 | 54 45 36 | 80,000 |
44 | C-80D-119-54 | 11,900 | 54 45 36 | 80,000 |
45 | C-80D-133-48 | 13,300 | 48 40 32 | 80,000 |
46 | C-80D-109-48 | 10,900 | 48 37 25 | 80,000 |
47 | C-57D-76-54 | 7,600 | 54 41 28 | 57,000 |
48 | C-57D-109-48 | 10,900 | 48 37 25 | 57,000 |
49 | C-57D-95-48 | 9,500 | 48 37 25 | 57,000 |
50 | C-57D-89-42 | 8,900 | 42 33 23 | 57,000 |
51 | C-57D-76-42 | 7,600 | 42 33 23 | 57,000 |
