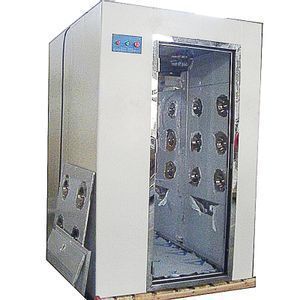

Clean room Electronical interlock air lock air shower

Supplier: Guangzhou Anlai General Equipment Co., Ltd.
Region: Guangdong, China
Contact: Ms Vanessa Wang
Price: $1300.00 /set
Min. Order: 1 set

Click here to contact

Product details

Weight:	350kgs;	Warranty:	12 Months;
Power:	1.1KW;	Place of Origin:	Guangdong China;
Port:	ANY PORT OF CHINA;	Payment Terms:	L/C,T/T,Western Union;
Product name:	Cleanroom Air Shower;	After-sales Service Provided:	Video technical support,Engineers available to service machinery overseas;
Local Service Location:	none;	Voltage:	380V/50HZ/3PH;
Material:	Stainless Steel 304;	Certification:	CE ISO9001:2008;
Application:	Clean Room Entrace;	Dimension(LWH):	131010002100;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Packaging Detail:	Standard export Packing;
Condition:	New;	Brand Name:	Anlaitech;
Supply Ability:	7000 Set/Sets per Month;	Showroom Location:	none;
Applicable Industries:	Manufacturing Plant,Food & Beverage Factory,clean room workshop pass through air shower;

Competitive Price Air Shower Room for Dust Free Cleanroom Use

Air Shower is used to blow away dust on clothing, equipments, materials and tools before workers or objects enter the Clean Room; meanwhile, its Air Lock function may effectively control personnel passing in and out, as well as act as various levels of buffer room for clean room to prevent cross pollution.

AIR SHOWER FOR PERSONAL SPECIFICATIONS:

Model	ALAS-1300-P1	ALAS-1300-PQ1	ALAS-1300-P2	ALAS-1300-P3

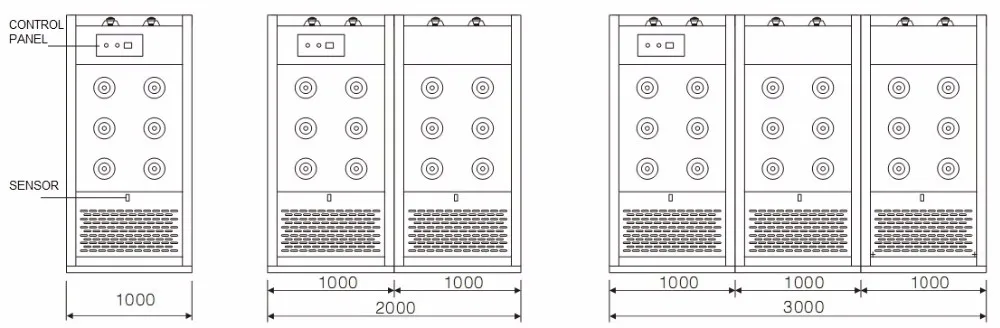

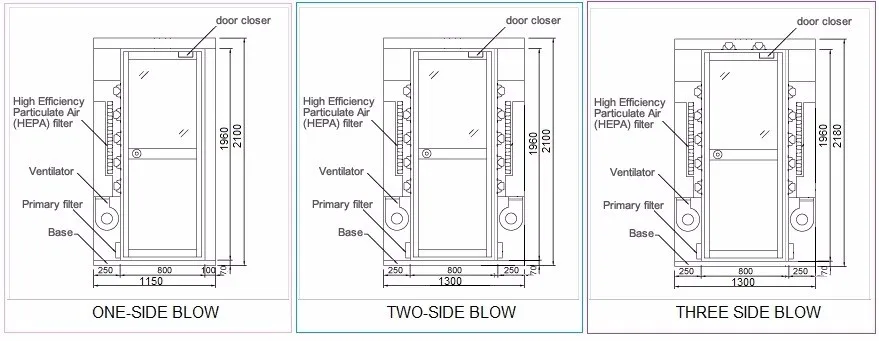

Outer Dimensions W×D×H(mm)	1300×1000×2100	1300×1500×2100	1300×2000×2100	1300×3000×2100
Inner Dimensions W1×D1×H1(mm)	800×930×1960	800×1430×1960	800×930×1960	800×930×1960
Speed (m/s)	25~27
Nozzle No.	12	18	24	36
Structure	Cabin: Pre-painted cold work steel sheet.Stainless steel
Structure	Door: 5mm glass and built-in automatic door closer
Lighting	LED, built-in type
Dust Collection Efficiency	Over 99.99% 0.3μm D.O.P TEST
HEPA Dimension ×Quantity	595×595×80×2pcs	595×595×80×2pcs	595×595×80×4pcs	595×595×80×4pcs
Showering Time	0-99s adjustable(FACTORY SETTING 10S)
Power Supply	380V 50Hz, 3Phase/220V 60Hz 1Phase

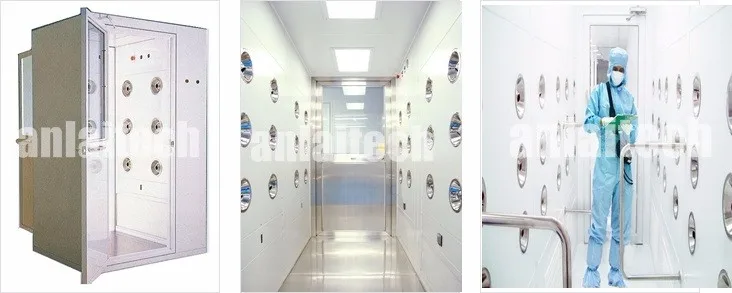

AIR SHOWER FOR PERSONAL

Epoxy powder coated steeel made

Stainless steel made

CUSTOMIZE YOUR AIR SHOWER

We provide strong technology support and free design for your air shower

Factory price with strictly quality control system for your air shower

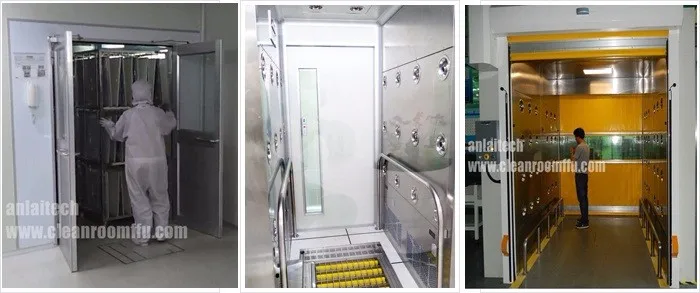

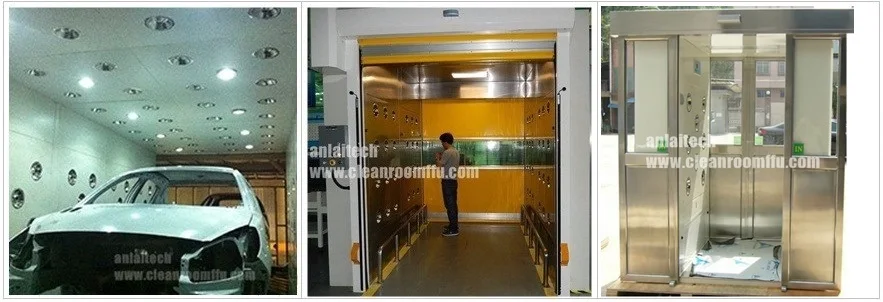

Application: Air shower is widely used in LCD and Optoelectronic Display, PCB, microelectronics, dust-free coating, aseptic packaging, medical care, Pharmacy,auto glass and precision parts.

FEATURES:

1,Fully auto controlled by computer, 2 electronic interlocking door, automatically blow and shower.

2,Duration for showering can be adjusted from 0 second to 99 seconds with time display and voice prompt. It is easy to operate with membrane touch switches.

3,Floor and nozzles are made of quality stainless steel.

4,99.99%@0.3μm, Efficiency can reach 99.99%@033μm with pre filter and hepa filter.

5, air velocity can up to 25m/s. professional and fast design, non-standard products.

Alternative configuration:

a. Stainless steel construction

b. Intercom

c. Ultraviolet sterilizing lamp/yellow light

d. Buzzer

e. Non-flooring-plate design (easy for light- weight vehicle in and out)

f. Automatic door

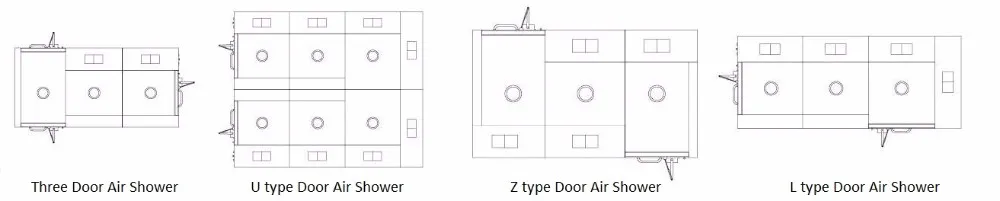

g. Non-standard air shower cleanroom is available

Our Services

Factory testing:

All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the unit’s individual results for each unit.

Factory test include:

--appearance testing

--functional test and visual inspection

--electrical safety tests

--air velocity testing

--noise testing

Warranty:

Our equipment is warranty for 1 year excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.
