Package Preview: | ; | Condition: | New; |
Voltage: | 380V; | Application: | Cleanroom Entrance; |
Product name: | Cleanroom Air Shower; | Warranty: | 12 Months; |
Power: | 600w; | Applicable Industries: | Manufacturing Plant,Food & Beverage Factory,clean room entrance air lock room; |
Brand Name: | Anlaitech; | Supply Ability: | 5000 Set/Sets per Month; |
Local Service Location: | None; | Place of Origin: | Guangdong China; |
Showroom Location: | None; | Weight: | 300KG; |
Packaging Detail: | Standard export packing (Stretch film+foam+Wooden case); | Clean room: | General Clean Room; |
Payment Terms: | T/T; | Dimension(L*W*H): | 1300*1000*2100; |
After-sales Service Provided: | Free spare parts,Engineers available to service machinery overseas; | Certification: | CE ISO; |
After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; | Port: | guangzhou; |

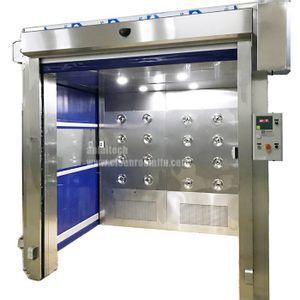

Competitive Price Air Shower Room for Dust Free Cleanroom Use
Air Shower is used to blow away dust on clothing, equipments, materials and tools before workers or objects enter the Clean Room; meanwhile, its Air Lock function may effectively control personnel passing in and out, as well as act as various levels of buffer room for clean room to prevent cross pollution.
AIR SHOWER FOR PERSONAL SPECIFICATIONS:
Model | ALAS-1300-P1 | ALAS-1300-PQ1 | ALAS-1300-P2 | ALAS-1300-P3 |
Outer Dimensions W×D×H(mm) | 1300×1000×2100 | 1300×1500×2100 | 1300×2000×2100 | 1300×3000×2100 |
Inner Dimensions W1×D1×H1(mm) | 800×930×1960 | 800×1430×1960 | 800×930×1960 | 800×930×1960 |
Speed (m/s) | 25~27 | |||
Nozzle No. | 12 | 18 | 24 | 36 |
Structure | Cabin: Pre-painted cold work steel sheet.Stainless steel | |||
Door: 5mm glass and built-in automatic door closer | ||||
Lighting | LED, built-in type | |||
Dust Collection Efficiency | Over 99.99% 0.3μm D.O.P TEST | |||
HEPA Dimension ×Quantity | 595×595×80×2pcs | 595×595×80×2pcs | 595×595×80×4pcs | 595×595×80×4pcs |
Showering Time | 0-99s adjustable(FACTORY SETTING 10S) | |||
Power Supply | 380V 50Hz, 3Phase/220V 60Hz 1Phase |
AIR SHOWER FOR PERSONAL
Epoxy powder coated steeel made
Stainless steel made
CUSTOMIZE YOUR AIR SHOWER
We provide strong technology support and free design for your air shower
Factory price with strictly quality control system for your air shower
Application: Air shower is widely used in LCD and Optoelectronic Display, PCB, microelectronics, dust-free coating, aseptic packaging, medical care, Pharmacy,auto glass and precision parts.
FEATURES:
1,Fully auto controlled by computer, 2 electronic interlocking door, automatically blow and shower.
2,Duration for showering can be adjusted from 0 second to 99 seconds with time display and voice prompt. It is easy to operate with membrane touch switches.
3,Floor and nozzles are made of quality stainless steel.
4,99.99%@0.3μm, Efficiency can reach 99.99%@033μm with pre filter and hepa filter.
5, air velocity can up to 25m/s. professional and fast design, non-standard products.
Alternative configuration:
a. Stainless steel construction
b. Intercom
c. Ultraviolet sterilizing lamp/yellow light
d. Buzzer
e. Non-flooring-plate design (easy for light- weight vehicle in and out)
f. Automatic door
g. Non-standard air shower cleanroom is available
Factory testing:
All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the unit’s individual results for each unit.
Factory test include:
--appearance testing
--functional test and visual inspection
--electrical safety tests
--air velocity testing
--noise testing
Warranty:
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
