Condition: | New; | Single gross weight: | 30.0 KG; |
Type: | wet pan mill; | Place of Origin: | Henan China; |
Applicable Industries: | Energy & Mining; | Dimension(L*W*H): | 2.3*2.3*2m; |
Marketing Type: | Hot Product 2019; | Machinery Test Report: | Provided; |
Warranty of core components: | 1 Year; | Brand Name: | Yuxiang; |
Local Service Location: | none; | Packaging Detail: | wet pan mill for gold grinding is heavy goods so it is suitable to be shipped by 20"container.In order to put more machines,we usually will send by parts.After customer get goods,we have the installation instruction with all details to guide customer to have machine ready easily. 1100 and 1200wet pan mill for gold grinding , 5sets per 20"container. Delivery Details: 1-5 days after order wet pan mill; |
Installation: | Engineer's Guide; | Single package size: | 30X30X30 cm; |
After sale service: | Life-long Service; | Model: | 1200 A wet pan mill; |
After-sales Service Provided: | Engineers available to service machinery overseas; | Color: | Blue,yellow,green,gray,red; |
Motor Type: | AC Motor; | The Machines classification: | Granding Mill Machine; |
Feeding size: | 10--30mm; | Application: | Gold ore,silver ore,iron ore,lead ore,zine ore,antimony ore; |
Video outgoing-inspection: | Provided; | Warranty: | 1 Year; |
Showroom Location: | none; | Weight: | 5t~5.5t; |
Certification: | ISO9001; | Package Preview: | ; |
Capacity(t/h): | 6-7t/day; | Core Components: | Bearing; |
Material: | Steel, Carbon steel; | Selling Units: | Single item; |
Machine Name: | wet pan mill; |

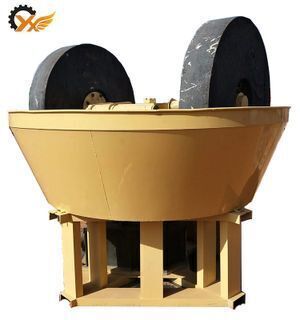

1 : The Introduction of wet pan mill for gold grinding
wet pan mill for gold grinding is the best equipment to replace ball mill. because it have small investment, high output, low production cost, good efficiency and easy installation. And the machine is the ideal beneficiation equipment for small and medium-sized enterprise. wet pan mill for gold grinding is mainly used to process the gold, silver, lead, zinc, iron, molybdenum, copper, antimony. The wet pan mill for gold grinding is named by the diameter of roller. Φ1300,Φ 1350,Φ 1400,Φ 1500,Φ 1600 is suitable for selection of iron ore, molybdenum ore ,lead ore ,zinc ore, antimony ore and so on. Φ 850, Φ 900, Φ 1000,Φ 1100,Φ 1200 is suitable for selection of gold ore. Above all, 1200a type is the most popular and widely use.
2 : Working Principle of wet pan mill for gold grinding
The wet pan mill for gold grinding repeatedly squeeze and mill gold ore through the weight of the wheels until the gold ore has been crushed completely. And then add 1 kg mercury into the water . Meantime, every 5-10 minutes, add gold ore to the machine. After 24 hours, recycle mercury. Then pack mercury with big density of cloth. Twist the cloth and let the mercury come out. The gold will be left in the cloth.
wet pan mill for gold grinding list
Model |
Dia of roller (mm) |
Thickness of roller(mm) | Dia of grinding base(mm) | Thickness of grinding base(mm) | Working surface of wet pan mill(mm) |
Speed (r/min) |
Power (kw) |
Weight (t) |
YX-1600A | 1600±10 | 400±10 | 2100±10 | 200±10 | 500±10 | 20-22 | Y6-37 | 14.5 |
YX-1500A | 1500±10 | 400±10 | 2050±10 | 200±10 | 460±10 | 20-22 | Y6-30 | 13.5 |
YX-1400A | 1400±10 | 250±10 | 2000±10 | 170±10 | 350±10 | 16-18 | Y6-15 | 8.5 |
YX-1300A | 1300±10 | 250±10 | 2000±10 | 150±10 | 250±10 | 16-18 | Y6-15 | 7.5 |
YX-1200A | 1200±10 | 200±10 | 1800±10 | 90±10 | 250±10 | 17-19 | Y6-7.5 | 5.5 |
YX-1200B | 1200±10 | 200±10 | 1800±10 | 90±10 | 250±10 | 23-25 | Y6-7.5 | 5.5 |
YX-1100A | 1100±10 | 200±10 | 1800±10 | 90±10 | 250±10 | 17-19 | Y6-7.5 | 5 |
YX-1000A | 1000±10 | 200±10 | 1700±10 | 90±10 | 250±10 | 13-15 | Y6-7.5 | 4.5 |
YX-900A | 900±10 | 180±10 | 1700±10 | 80±10 | 250±10 | 13-15 | Y6-5.5 | 4.5 |
*Notes: The model is named according to the diameter. Diameter*Thickness*Width+20mm.
3 : The Operation and Maintenace of wet pan mill for gold grinding
◊ The raw material should be put into the machine after the machine running normally.
◊ This machine is not allowed to state with the material in the machine. If the machine is stopped because of stoppage, the residual material in the machine should be cleared. Then start the machine again.
◊ The material should be put into the machine uniformity, not sometimes much sometimes less. It's better to use a feeding equipment.
◊ The bearing part should be add butter regularly.
◊ Every bolts should be checked to avoid flexible.
◊The bearing should be changed in time if it is damaged to avoid damage other parts.
◊ While the machine is running formally, you should check if there is abnormal sound in the reducer box and or bearing part, if there is a too high temperature, if there is too big motor current and so on. If it happened, you should stop the machine to remedy of the trouble.
◊ The motor V-belt should be removed while examine and repair the machine for your safe.
4: Our wet pan mill for gold grinding in Sudan
Professional technical team is at service
Gongyi City Yuxiang Heavy Machinery Co.,Ltd has professional technical team.They can make drawings by Auto CAD or 3D Solidworks.When customer has special request,our technical department can structure the machine in 3D format to simulate the working condition.In this way,we can remove the interfere items in advance.And we have the complete installation instructions about all of our machine.In this way,the customer can have all machines ready to produce soon even they are not familiar with this machine or first order from us.
**What you are buying is not only a machine,but also a complete aftersale service system!
And Our technical department can design electrical arrangement and the related machines needed.
Professional production team
Our company equipped with big high efficiency equipments like :plasma cutting,bending machine,welding machine,painting line,etc.
Standard 1100 model and 1200 model wet pan mill for gold grinding in the stocks so we can delivery after order.
For 1300 and above size,we have parts in the stock,so we can delivery within 5days after order.
wet pan mill for gold grinding is heavy goods so it is suitable to be shipped by 20"container not 40"container.In order to put more machines,we usually will send separately by parts.After customer get goods,we have the installation instruction with all details to guide customer to have machine ready easily.A 20" GP can load 5sets of 1200models or below 1200 size models.
Jaw crusher
During gold washing processing,it is a pre-mill processing,the jaw plate is a special alloy material,which can press the ore into smaller particles,in this way to save the wet pan mill wearing.
>>Review more information |
GONGYI YUXIANG HEAVY MACHINERY CO.,LTD. is an professional manufacturer of wet pan mill&mining series machines,with R&D team, excellent technical team, sales team and strong production capability, we have been devoting our self to the development and promotion of gold mining machinery and all our products have got CE certificates.
You are welcomed to our factory >>
Below is our video about wet pan mill for gold grinding on Youtube:
model | Youtube address | Description |
1200 A | https://www.youtube.com/watch?v=7-7GeVzX0Dk&t=269s | Gold ores --- crushed by jaw crusher---milled by wet pan mill--- refine the gold by mercury. |
1200A | https://www.youtube.com/watch?v=HZDZdD8vMmw | It is the running of 1200 wet pan mill |
1400/1500/1600 | https://www.youtube.com/watch?v=CFvE3T5AFDs&t=83s | it shows the running of bigger models |
With generator | https://www.youtube.com/watch?v=BVKse6NqLYY | it shows the generator working with wet pan mill together. |
