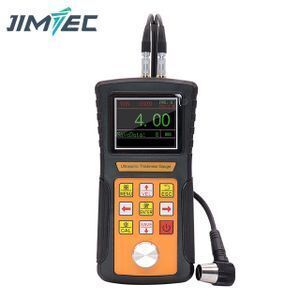

ut thickness gauge

Supplier: Beijing Jitai Tech Detection Device Co., Ltd.
Region: Beijing, China
Contact: Ms Kathy Liu
Price: $100.00 /set
Min. Order: 1 set

Click here to contact

Product details

Calibration Function:	Probe Zero and two-point calibrations;	Package Preview:	;
Supply Ability:	500 Set/Sets per Month;	Communication port:	USB;
Display:	128*64 LCD with LED backlight;	Place of Origin:	Beijing China;
Resolution:	0.01mm;	Outline Dimensions:	145mm74mm32 mm;
Measuring accuracy:	±(0.5%H+0.04mm);	Measuring Range:	(0.75~600)mm;
Velocity Range:	(1000~9999) m/s;	Brand Name:	JITAIKEYI;
Type:	Ultrasonic Thickness Gauge;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Storage:	3000 values of saved data;	Model Number:	JT190;
Packaging Detail:	plastic case;	Weight:	245g;

I,Introduction:

Ultrasonic Thickness Gauge measuring with ultrasonic wave, is applicable for measuring the thickness of any material in which ultrasonic wave can be transmitted and reflected back from the other face.

The gauge can provide quick and accurate measurement to various work pieces such as sheets of board and processing parts. Another important application of the gauge is to monitor various pipes and pressure vessels in production equipment, and monitor the thinning degree during using. It can be widely used in petroleum, chemical, metallurgy, shipping, aerospace, aviation and other fields.

II,Technical Specification:

Display:128*64 LCD with LED backlight;

Measuring Range:(0.75~600)mm(Steel)/(0.011inch-23.6inch)

Velocity Range:(1000~9999) m/s;

Resolution:0.01mm

Measuring accuracy:±(0.5%H+0.04mm);H is thickness value;

Measurement cycle:Single point measurement 6 times/per;

Storage:40 values of saved data

Power Source:2pcs 1.5V AA size

Working Time:more than 50 hours (LED backlight off).

Outline Dimensions:145mm*74mm*32 mm

Weight:245g

III,Main Functions:

Capable of performing measurements on a wide range of material, including metals,plastic,ceramics,composites,epoxies,glass and other ultrasonic wave well-conductive materials.

Can collocate variety different frequencies,wafer sizes of probes;

Sound Velocity Calibration function as a known thickness;

Coupling status indicator showing the coupling status;

EL backlight, and convenience to use under dark environment;

Have the battery indicator function, can real-time display the remaining power

Auto sleep and auto power off function to conserve battery life;

Smart, portable,high reliability, suitable for bad environment, resist to vibration, shock and electromagnetic interference.

VI.Instrument Configuration:

	No.	Name	QTY	Notes
Standard Configuration	1	Main Body	1 set
	2	Standard Probe(5MHz,D10mm)	1 pc
	3	Couplant	1 pc
	4	ABS Case	1 pc
	5	Product Certificate	1 pc
	6	Warranty Card	1 pc
	7	Manual	1 pc
	8	1.5V AA size battery	2 pcs
Optional Accessories	9	Large diameter probe(2.5MHz)
	10	Large range probe(2MHz)
	11	Micro-diameter probe(7MHz)
	12	High temperature probe(5MHz)
	13	High temperature couplant
