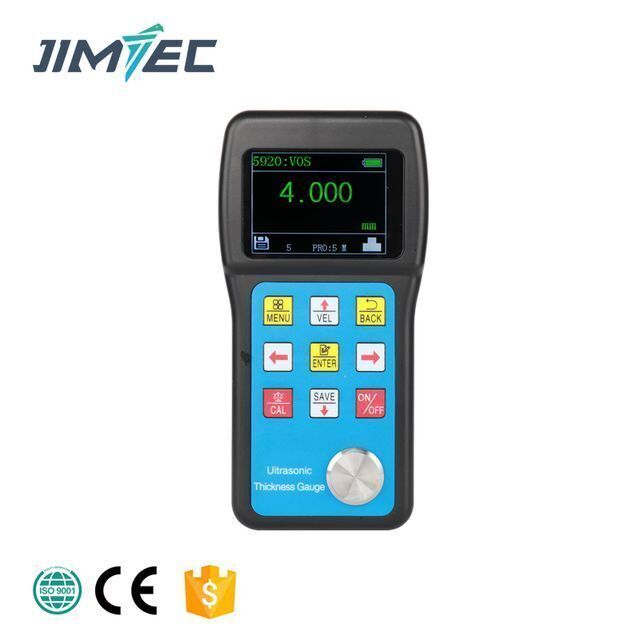

JITAI5102 Digital Metal Ultrasonic Thickness Gauge resolution 0.001mm

Supplier: Beijing Jitai Tech Detection Device Co., Ltd.
Region: Beijing, China
Contact: Ms Kathy Liu
Price: $198.00 /set
Min. Order: 1 set

Click here to contact

Product details

Product Name:	ultrasonic thickness gauge;	Storage:	40 values of saved data;
USB Port:	Yes;	Single package size:	40.5X25.5X11 cm;
Power Source:	4pcs 1.5V AA size;	Place of Origin:	Beijing China;
Type:	ultrasonic thickness gauge;	Velocity Range:	(1000~9999) m/s;
Package Preview:	;	Packaging Detail:	ultrasonic thickness gauge standard export plastic case;
Certification:	ISO,CE;	Model Number:	JITAI5102;
Brand Name:	JIMTEC;	Warranty:	2 years;
Selling Units:	Single item;	Resolution:	0.001mm;
Weight:	245g;	Measuring Accuracy:	±(0.5%H+0.04mm);
Measuring Range:	0.75~600mm;	Customized support:	OEM,ODM;
Single gross weight:	1.5 KG;	Display:	128*64 LCD with LED backlight;

Product Overview

JITAI5102 Digital Metal Ultrasonic Thickness Gauge resolution 0.001mm

Ultrasonic Thickness Gauge measuring with ultrasonic wave, is applicable for measuring the thickness of any material in which ultrasonic wave can be transmitted and reflected back from the other face.

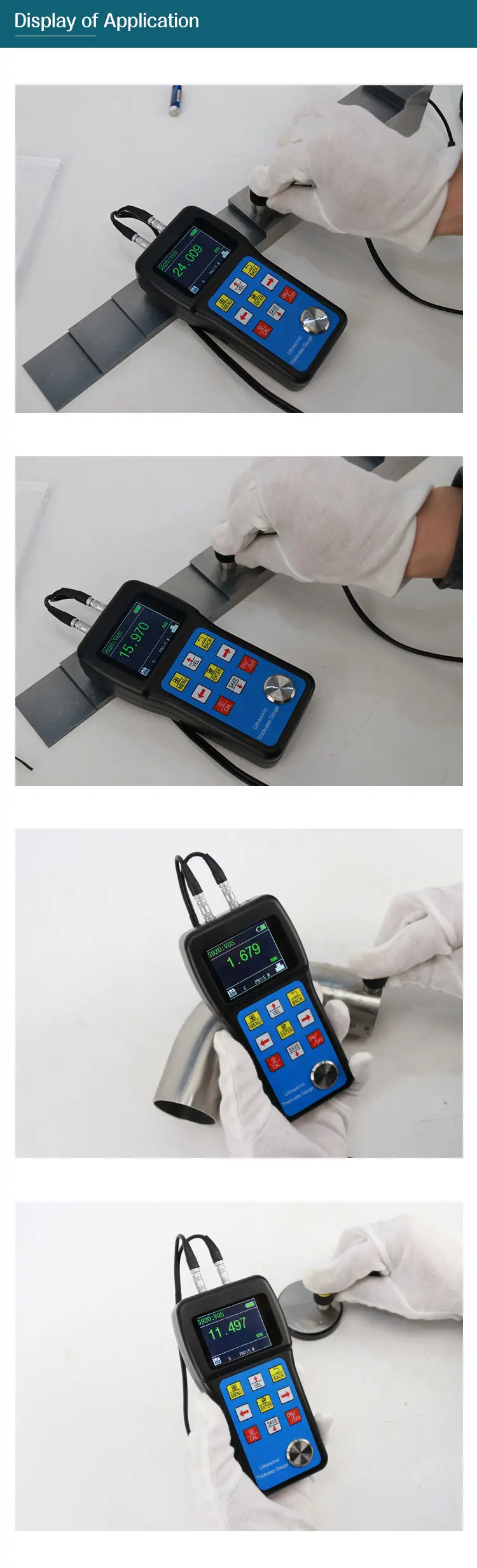

The gauge can provide quick and accurate measurement to various work pieces such as sheets of board and processing parts. Another important application of the gauge is to monitor various pipes and pressure vessels in production equipment, and monitor the thinning degree during using. It can be widely used in petroleum, chemical, metallurgy, shipping, aerospace, aviation and other fields.

PRODUCT SPECIFICATIONS

Model	JITAI5102
Display	128*64 LCD with LED Backlight, Color Display
Measuring Range	(0.75~600)mm（Steel）
Velocity Range	(1000~9999) m/s
Resolution	0.001mm
Measuring accuracy	±（0.5%H+0.04mm);H is thickness value
Measurement cycle	Single point measurement 6 times/per
Storage	3000 values of saved data
Power Source	2pcs 1.5V AAA size
USB Port	YES
Working Time	More than 50 hours (LED backlight off)

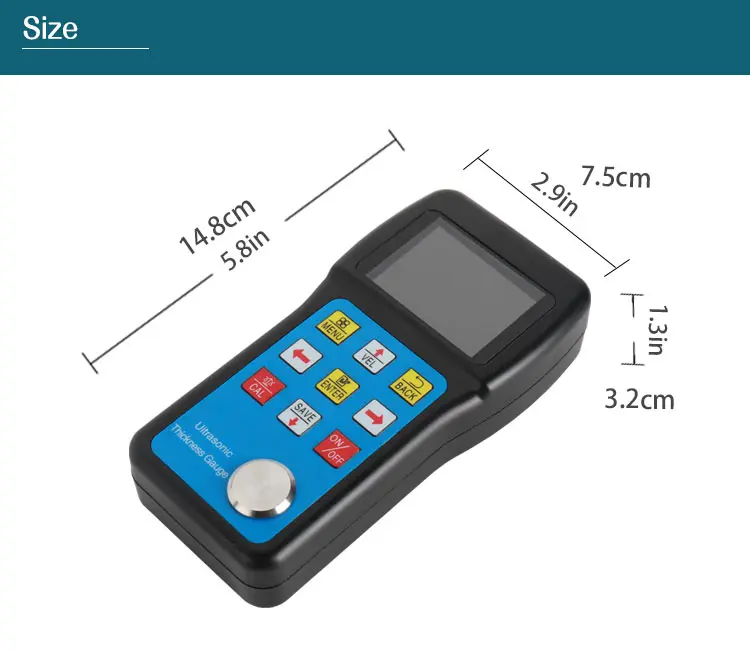

Dimensions	145mm74mm32 mm
Weight	245g
