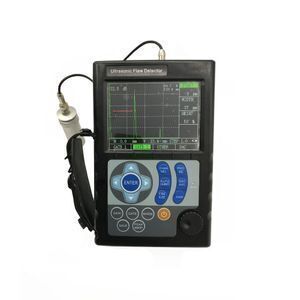

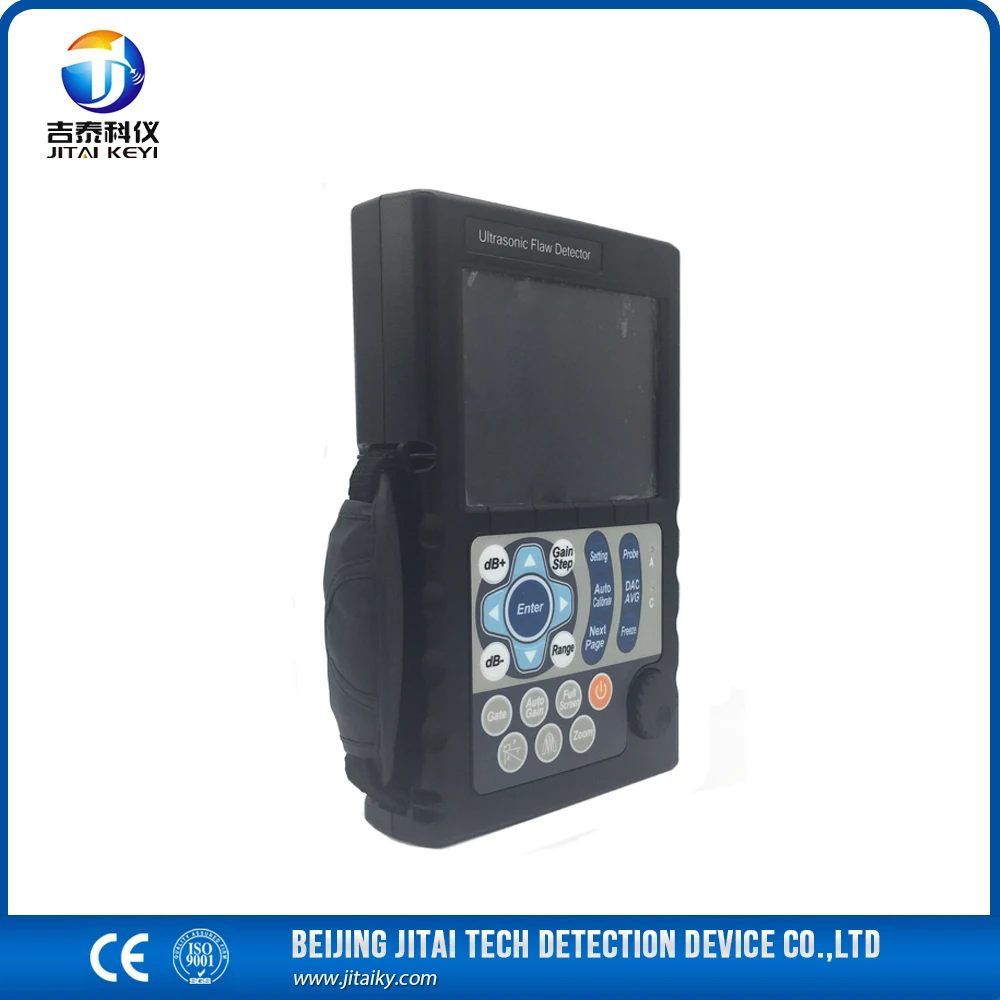

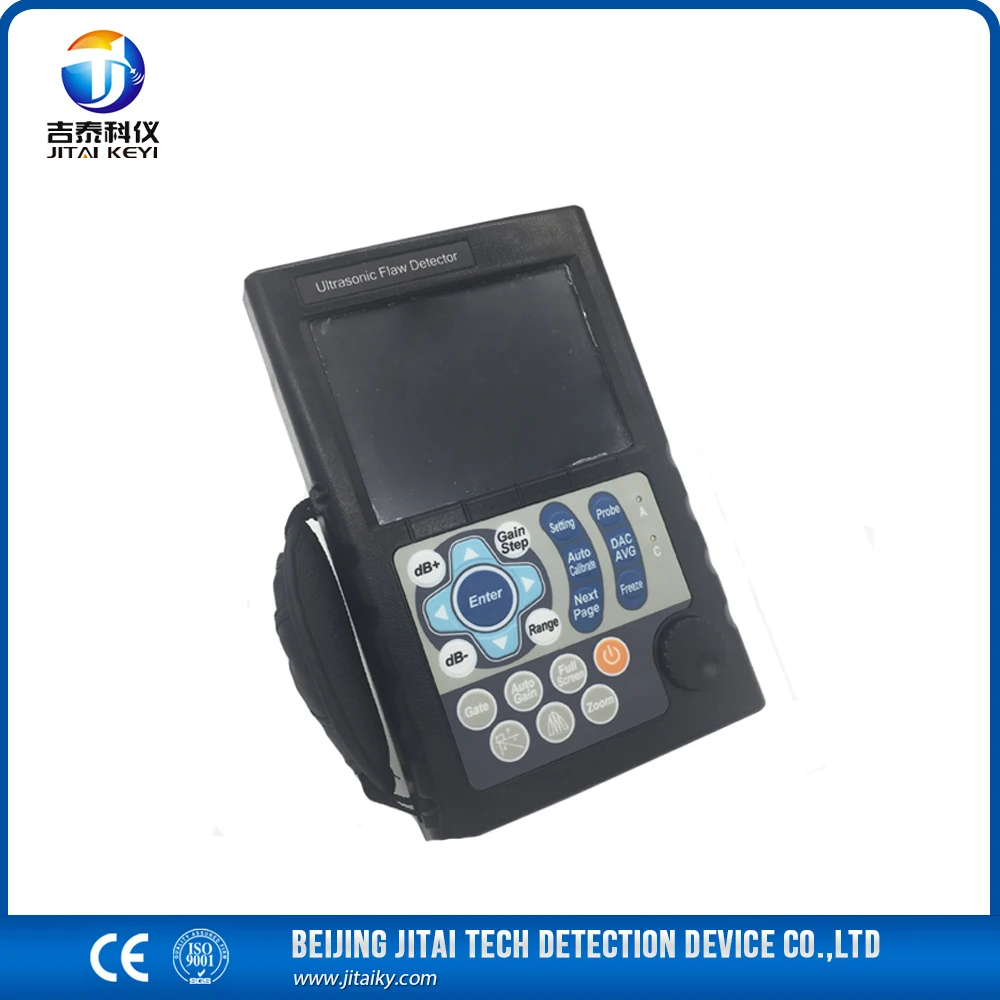

JUT500 Ut Testing Equipment Electrical Ultrasonic Applications Flaw Detector

Product details
Supply Ability:500 Set/Sets per Month;Power:7.4V 4800mAh;
Working time:>8 hours;Gain:-20~+3400;
Model Number:JUT500;Weight:1.0kg;
Payment Terms:D/P,T/T,Western Union,MoneyGram,visa;Packaging Detail:Protective Suitcase;
Humidity:20%~90%RH;Material Velocity:1000 m/s~9999m/s;
display:LED true color;Measuring range:0-6000mm;
Place of Origin:Beijing China;Port:Bejing or Tianjin or Shanghai;
Brand Name:JITAI;Temperature:-20℃~50℃;
D-Delay:0.1mm(2.5mm~100mm) 1mm(>100);



Features:

-Automated calibration,Automated gain

-DAC,AVG,TCG,B scan,AWS

-High-speed capture and very low noise

-High contrast viewing of the waveform from bright

-Powerful pc software and reports can be export to excel

Functions:

-Automated display precise flaw location(Depth d,level p,distances,amplitude,sz dB);

-Automated switch three staff gauge ((Depth d,level  p,distance s);

-Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity;

-Convenient to make and use DAC,TCG and AVG to evaluate the echo, the curve can be modified and compensated

-6dB DAC functions;

-500 independence setup, any criterion can be input freely, we can work in the scene without test block;

-Big memory of 500 A graph;

-Automated gain and gain scan;

-Peak Hold and Peak Memory;

-B scan;

-AWS D1.1

-Automated make video of test process and play; use upan,the length of video is unlimited.

-Powerful pc software and reports can be export to excel;

-Li battery, continue working time up to 12 hours;

-The embeded software can be online updated;



Specifications:



-Measuring Range (mm):0 ~6000mm

-Channels: 100

-Frequency Range (MHz):0.5 ~15MHz

-Material Velocity (m/s): 1000 ~9999m/s

-Vertical Linearity Error: ≤3%

-Horizontal Linearity Error: ≤0.1%

-Sensitivity Leavings: ≥62dB

-Dynamic range: ≥32dB

-Resolving Power: ≥36dB

-Gain (dB): 0 ~100dB

-Measurement Mode: Single,Dual,Thru

-Reject: 0~80%

-Pulse Displacement (μs): -20 ~+3400

-Zero (μs): 0.0 ~99.99

-Port Type: BNC(Q9) or Lemo 01(C9)

-Operating Temperature (℃): -20~70

-H*W*D(mm): 240*156*48

-Weight (kg):1.0(with battery)

Standard Configration:

No.

Item

Quantity

1

Main Body

1

2

Straight Beam Probe

1

3

Angle Probe

1

4

Machine-probe Cable

1

5

Power Adapter (Charger)

1

6

Data proceeding Software

1

7

USB communication Cable

1

8

Manual

1

9

Instrument Case

1

10

Guarantee Card

1

11

Packing List

Optional Accessories:



No.

Item

Notes

1

All kinds of straight beam probe

Please confirm with us

2

All kinds of angle probe

Please confirm with us

3

Calibration block

IIW(V1);

IIW Ⅱ(V2);

DSC,DC,SC

4

Cable

All kinds of connectors’ cables( BNC, Lemo, and Microdot
