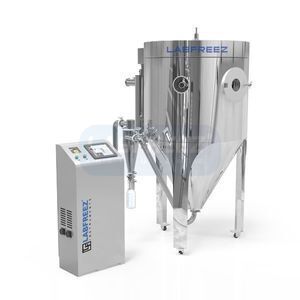

Pilot Spray Dryer Machine Atomizer 5kg/5L

Product details
Machinery Test Report:Provided;Power:16kw;

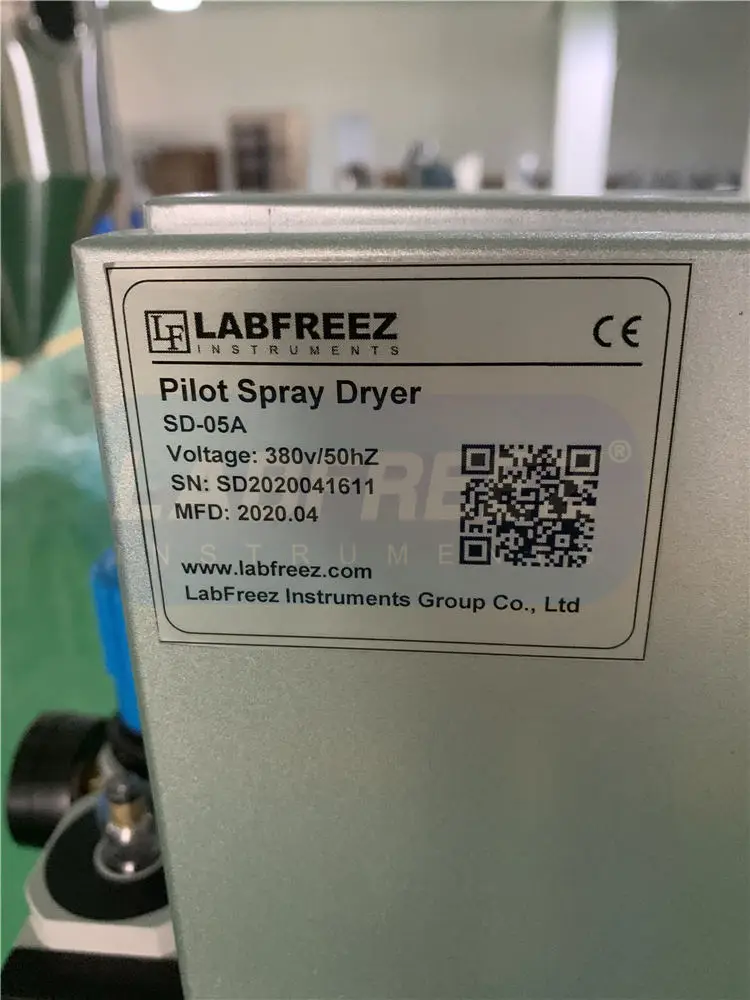

Model:SD-05A;Weight:120kg;
Supply Ability:100 Set/Sets per Year;Payment Terms:L/C,Western Union,T/T;
Brand Name:LABFREEZ;Condition:New;
Package Preview:;Local Service Location:Indonesia;
Voltage:380V/50Hz;Dimension(L*W*H):1.92*1.02*2.0 m;
After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;Nozzle:SS 316 Two fluid or centrifugal;
Weight (KG):300kg;Evaporation Capacity(kg/h):5KG/H;
Name:Pilot Spray Dryer;Certification:CE/ISO;
Application:Biomedical/food/chemical,Medicine Processing,Chemicals Processing,Plastics Processing,Food Processing;Port:any port in China;
Video outgoing-inspection:Provided;Warranty:1 Year,1 Year;
Heating source:Elctricity;Material:304 Stainless Steel mirror,SUS304,SUS316;
Showroom Location:None;Raw material:Liquid Form Material;
PLC:Siemens;Marketing Type:New Product 2020;
Applicable Industries:Manufacturing Plant,Food & Beverage Factory,Farms,Energy & Mining,Pharmaceutical;Key Selling Points:Automatic;
Core Components:Motor,PLC;Place of Origin:Hunan China;
Warranty of core components:1 Year;Packaging Detail:Plywood package suitable for export;
Heating Method:Electric Heating;Type:Spray Drying Equipment;
After-sales Service Provided:Online support,Video technical support,Free spare parts;

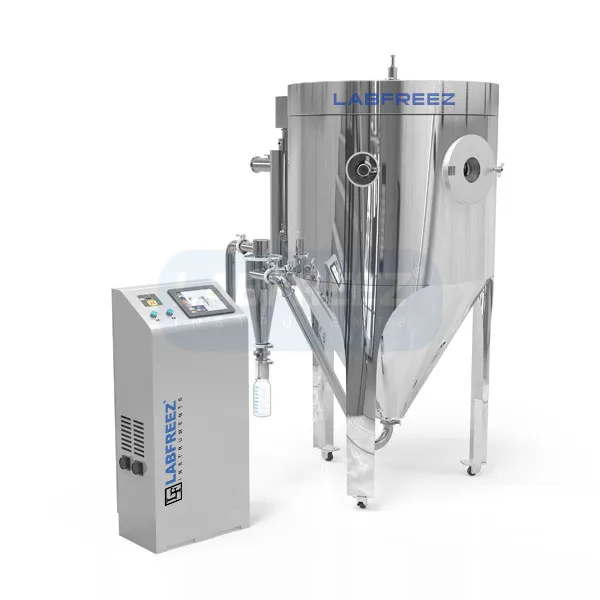

5L/5kg Pilot Spray Dryer Machine, Excellent design, Factory price







Product introduction

SD-05A 5l pilot spray dryer machine is based on the originaltest spray dryer of LABFREEZ, through a large number ofresearch and learn from the Danish Niro and Anhydro spray dryer design concept, andthenewly developed upgraded version of the pilottype spray dryer. Among them, SD-05A has a stable appearance, beautiful atmosphere, convenient operation, patent shape design, high quality technology level and new control system, which meets the needs of morelaboratory and pilot users, and even can replacethe imported spray dryer



Installation requirements

Model

Space requirements

L*W*H(m)

Power supply

Inlet water

Air

Exhaust



SD-05A pilot spray dryer



1.92×1.03×2.0

16KW

380V/50Hz

Tap water

Air compressor

Exhaust port



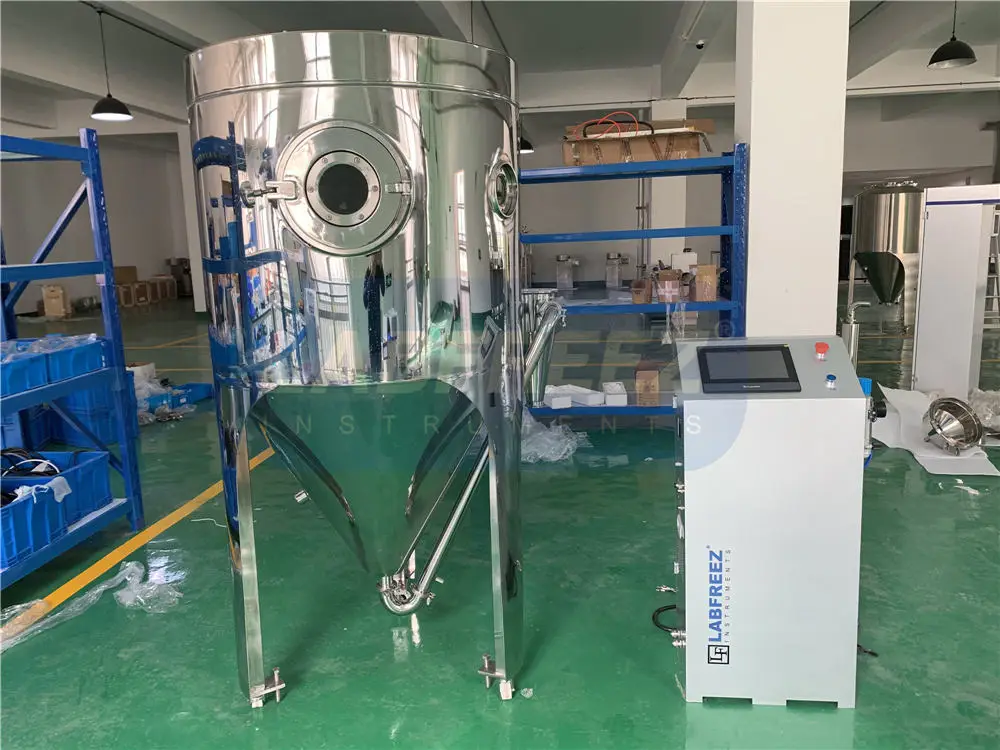

Process Description

  • SD-05A pilot spray dryer has beenintroduced to meet the still increasing demand for a more flexible,modern and easy-to-handlelaboratory dryer having different levels of control systems. The sanitary design, the easy access to all internal surfaces andthe range of available options for optimising the configuration will be appreciated by all users
  • The liquid RN-Con feedisatomized by a two-fluid nozzle co-current or, alternatively, by an centrifugal atomizer.
  • The drying gas is heated by means of electricity, and entersthechamber via a speciallyH- Adv designed gas distributor.
  • The drying chamber has a conical bottomwith a 60degree cone angle. The chamber is provided with WD door, light and sight glass.
  • The plant is delivered with an PLC including necessary control andinstrumentation.



Materials of Construction

-        The plant willbe delivered in sanitary execution according to Food hygiene standards. All metallic partsincontact with the process, product or gasses are made in stainlesssteel AISI 304.

-        External surfaces and weldings are polished to Ra < 1.2 µm.

-        Internal weldings in productcontact parts (drying chamber, powder duct, cyclone, powder container, gas duct to bag filter)have smooth surfaces,max. Ra0.8µm. Sand blasting technology on the outer surface.

-        Other internal weldings are ground flush to parent sheet grit 120.

-        Stainless steel cladding is made in AISI 304.



Standard list:

-        Feeding Pump

-        Nozzle Atomizer

-        Centrifugal Atomizer(option)

-        Delivery Fan

-        Gas Heater

-        H-Adv Gas Distributor

-        Drying Chamber

-        Cyclone

-        Field Instrumentation and Control System Hard Ware

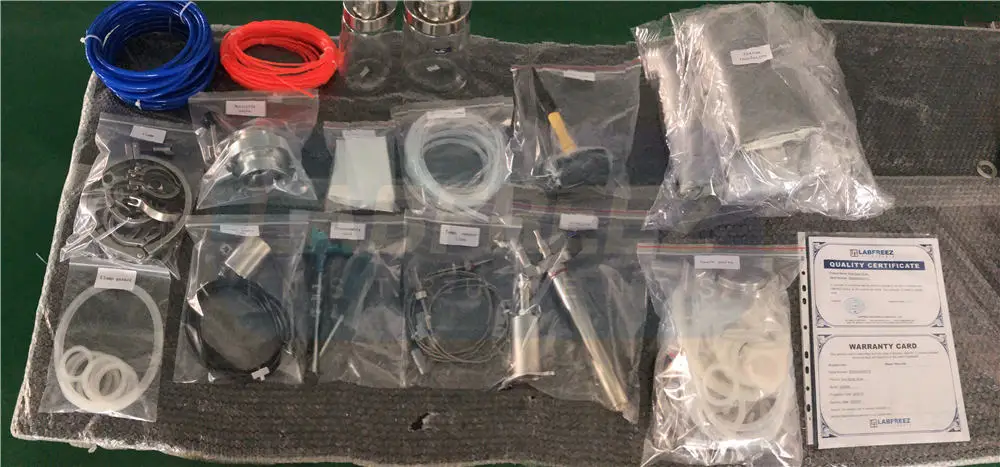

-        Spare Parts



Technical Parameters

No.

Item Name

Specifications

Basic

1.

Equipment model

SD-05A pilot spray dryer

2.

Maximum water evaporation

5L/H

3.

Peristaltic pump

0~5000ml/h

4.

Inlet air temperature

30-300 ° C ± 2 ° C

5.

Air temperature

30-120 ° C ± 2 ° C

6.

Inlet and outlet temperature monitoring

PT-100 temperature sensor, intelligent PID control

7.

Atomization structure

Seamless design of nozzle atomizer and rotary atomizer with RN-Con modular design

8.

Nebulizer

Original imported, standard parallel flow two-fluid atomizer

9.

Hot air distributor

H-Adv integrated structure hot air distributor, rotating like wind, evenly distributed, adjustable wind direction

10.

Door hole

WD round door hole design, beautiful appearance, both window observation and door cleaning, with thermal insulation design

11.

Induced draft fan

Taiwan high pressure fan, 1.5KW/220V, frequency conversion control

12.

Electric heaters

10KW/380V, special stainless steel

13.

Dry air flow

Up to 100 kg/h

14.

Average drying time

1.0-1.5s

15.

Automatic draining device

Automatic needle, adjustable operating frequency 1-60s

16.

Air compressor

2.2KW, gas production 180L/min, working pressure 2-6bar

Control system

1.

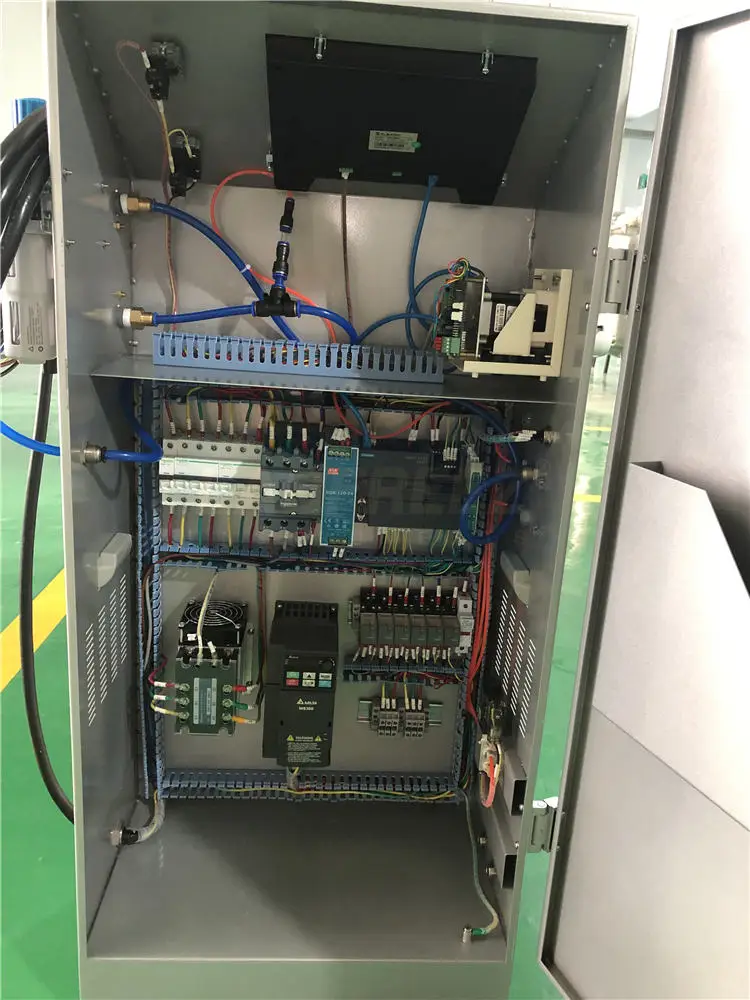

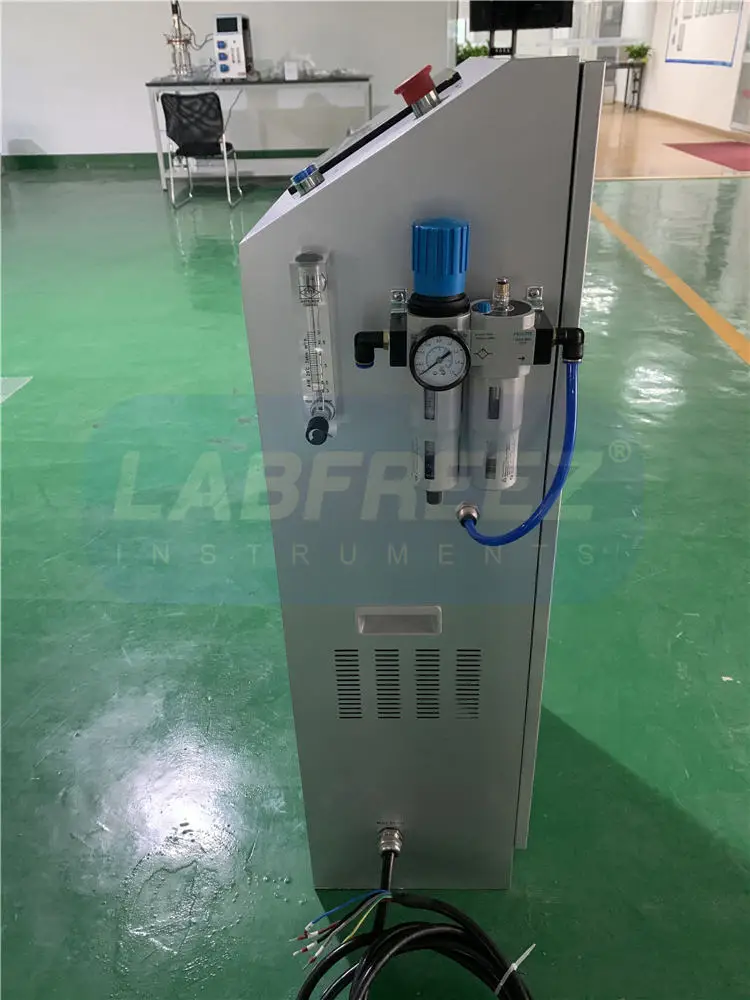

Electrical control cabinet

The chassis adopts the HSSP standard spraying process, and the elegant electrical components adopt Schneider Electric standard.

2.

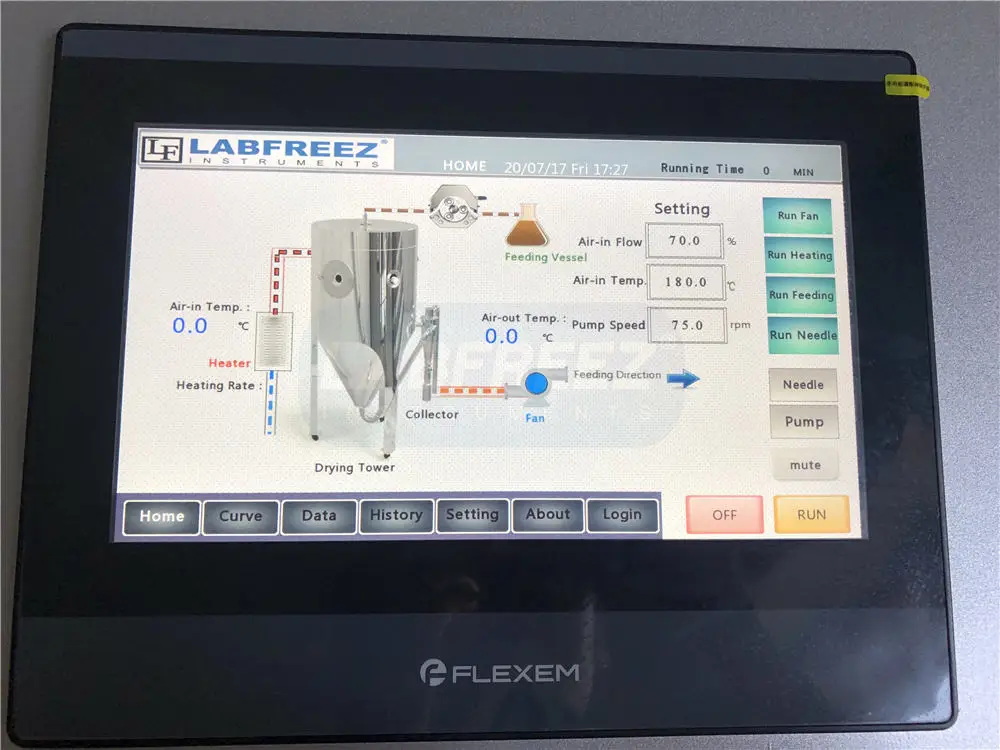

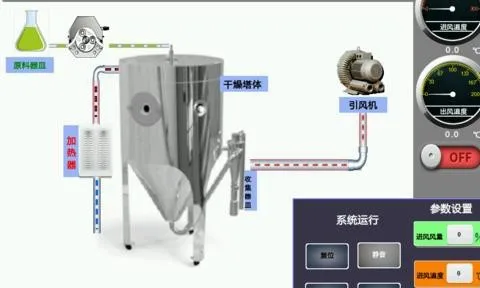

touch screen

10 inch capacitive high resolution touch screen with resolution: 1024*800

3.

Software system

LF-Control 2.0 version control system with temperature, pressure sensing, pump start, stop and variable frequency control data curves, logging and alarm functions.

4.

Quick release design

Temperature sensors, power supplies, and air lines are designed for quick insertion and tube management for easy maintenance and finishing

Other

1.

voltage

AC380V, 50HZ

2.

rated power

AC380V/16KW

3.

Minimum space requirement ((L*X*H)

1930mm×1030mm×2010mm

4.

weight

265KG
