Rotary Evaporator 20L, Rotovap 20l factory price

Product details
Condition:New;Payment Terms:T/T,Western Union;
Supply Ability:30 Set/Sets per Month;Voltage:220V/110V 50Hz/60Hz;
Warranty:18 Months;After-sales Service Provided:Free spare parts,Engineers available to service machinery overseas;
Process:Vacuum Distillation;Power:2.2kw;
Dimension(L*W*H):756*400*1070mm;Certification:CE ISO;
Packaging Detail:Plywood case;Power Source:Electric;
Place of Origin:Hunan China;Port:Shanghai, Shenzhen;
Brand Name:LABFREEZ;Weight:74kg;

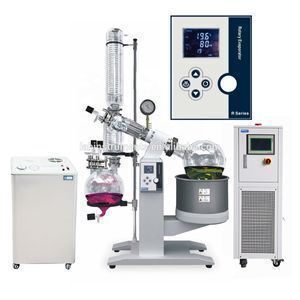

Labfreez™ Large capacity vacuum rotary evaporator, large diameter rotary evaporator flask, evaporation area, the vacuum water bath, while rotating edge heating, evaporation of the solution diffusion efficiency can be used for biological, pharmaceutical, chemical, food and other small scale areas, Chinese and production. Products with recycled water multi-use vacuum pumps, diaphragm pumps, low temperature cycle (vacuum) pumps, circulating cooler, constant temperature circulator, low temperature cooling liquid circulating pump and other devices supporting component systems.



Features:

  • Teflon (PTFE) and fluorine rubber dual rotating seal, patented technology to ensure high vacuum.
  • the introduction of foreign advanced frequency control system, temperature control system, accurate and reliable.
  • a vacuum switching valve, without affecting the system vacuum distillation of the situation and the solution can be continuously collected.
  • water bath electric lift and manual lift support, easy to use.
  • PTEE discharge valve, corrosion resistance, pollution-free.



Specifications:

Model

RE-LA-5
RE-LA-5Ex

RE-LA-10
RE-LA-10Ex

RE-LA-20
RE-LA-20Ex

RE-LA-50
RE-LA-50Ex

Capacity of Rotary Bottle

5L

10L

20L

50L

Flanged diameter

Φ50mm

Φ95mm

Φ95mm

Φ125mm

Capacity of Collecting bottle

3L

5L

10L

20L

Rotary control

LCD display, frequency conversion stepless

Rotary speed

20 ~ 140r/min

20 ~ 130r/min

20 ~ 130r/min

20 ~ 110r/min

Power of rotary motor(W)

40W

90W

120W

120W

Condensing tube

Vertical double serpentine tube

Vertical, main + auxiliary cooling and highly efficient three circulating

Water Bath

Stainless steel water bath

Temp. Range

Digital display, RT~99°C

Vacuum degree

399.9Pa (below 3mmHg)

Evaporating capability

Water≥2L/h
Alcohol≥4L/h

Water≥3.2L/h Alcohol≥6.5L/h

Water≥5L/h
Alcohol≥11L/h

Water≥9L/h
Alcohol≥19L/h

Elevating mode

Electric
Manual

Electric
Manual

Electric
Manual

Electric
Manual

Elevating stroke

0~150mm

0~160mm

0~190mm

0~230mm

Power supply

220-240V/50Hz

380V/50Hz

Power

2.2KW

4.8KW

6.3KW

8.3KW

Dimensions(mm)

765L*400W*1070H

920L*550W*1700H

1250L*600W*2100H

1320L*770W*2340H
